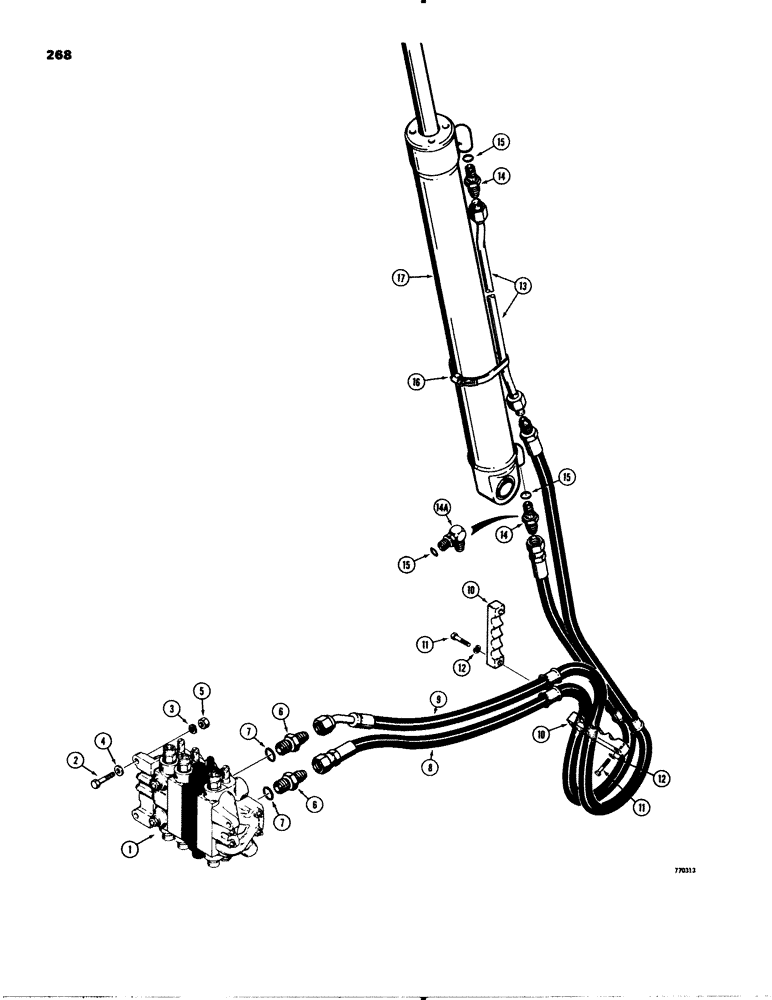

Запчасти Case 580C (268) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - backhoe control, parts list Figure 342

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male adapter, Incl. Ref. 7

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

8

D69168

HOSE,15.88mm ID x 1854.2mm L, SAE 100R2

- to cylinder closed end, 73" (1854 mm) long

1шт.

9

D70870

HOSE,15.88mm ID x 2032mm L, SAE 100R2

- to cylinder rod end, 80" (2032 mm) long

1шт.

10

D50388

CLAMP

- hoses

2шт.

11

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4", if used

4шт.

11

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

If used Hex, 1/2"-13 x 2", G5

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

D50379

TUBE

- to rod end of cylinder

1шт.

14

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - straight male adapter

1-2шт.

14a

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 degree, adjustable, if used, Includes: Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 218-5065 and 218-5123 fittings

1шт.

16

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - cylinder tube

1шт.

17

REF

INSTRUCTION

CYLINDER - dipper, parts list Figure 404 or 406

1шт.
