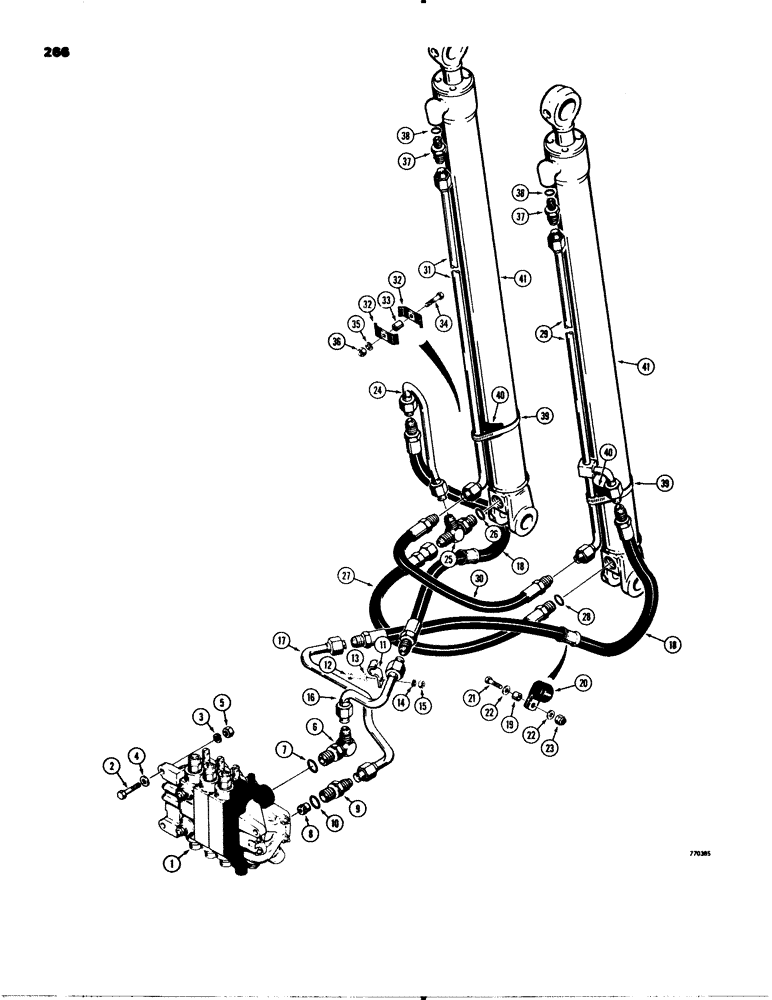

Запчасти Case 580C (266) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT, BACKHOE S/N 5356938 & AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - backhoe control, parts list Figure 342

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, upper port, Includes: Ref. 7 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

8

D56252

FITTING

RESTRICTOR - check

1шт.

9

L55143

FITTING

FITTING - special adapter, lower port, Includes: Ref. 10

1шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

11

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

- tube

2шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

13

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

16

D69177

HYD TUBE,0.75" OD x 5.71, 5.16" L

TUBE - upper valve port

1шт.

17

D69199

HYD TUBE,0.75" OD x 10.7, 9.8" L

TUBE - lower valve port

1шт.

18

E35287

HOSE,15.88mm ID x 1066.8mm L, SAE 100R2

- to cylinders, 42" (1067 mm) long

2шт.

19

D72284

SLEEVE

CUSHION - hose clamp

2шт.

20

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- hose

2шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

2шт.

22

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

23

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, lock, 3/8" - 16 NC

2шт.

24

D69421

HYD TUBE,0.75" OD

TUBE - to closed end port

1шт.

25

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - tee, adjustable, Includes: Ref. 26

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

27

D65491

HOSE,12.7mm ID x 558.8mm L, SAE 100R2

- crossover, closed end circuit, 22" (559 mm) long, Includes: Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- hose end

1шт.

29

D69237

TUBE

- to rod end of RH cylinder

1шт.

30

D65886

HOSE,12.7mm ID x 457.2mm L, SAE 100R2

- crossover, rod end circuit, 18" (457 mm) long

1шт.

31

D69234

HYD TUBE,0.75" OD x 41.4, 2.75" L

TUBE - to rod end of LH cylinder

1шт.

32

D40236

CLAMP

- tube

2шт.

33

D34244

SPACER

- tube clamp

1шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

1шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

37

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - straight, male adapter, Includes: Ref. 38

2шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

39

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - cylinder tube

2шт.

40

D38648

BLOCK

SPACER - clamp

2шт.

41

REF

INSTRUCTION

CYLINDER - boom, parts list Figure 400 or 402

2шт.
