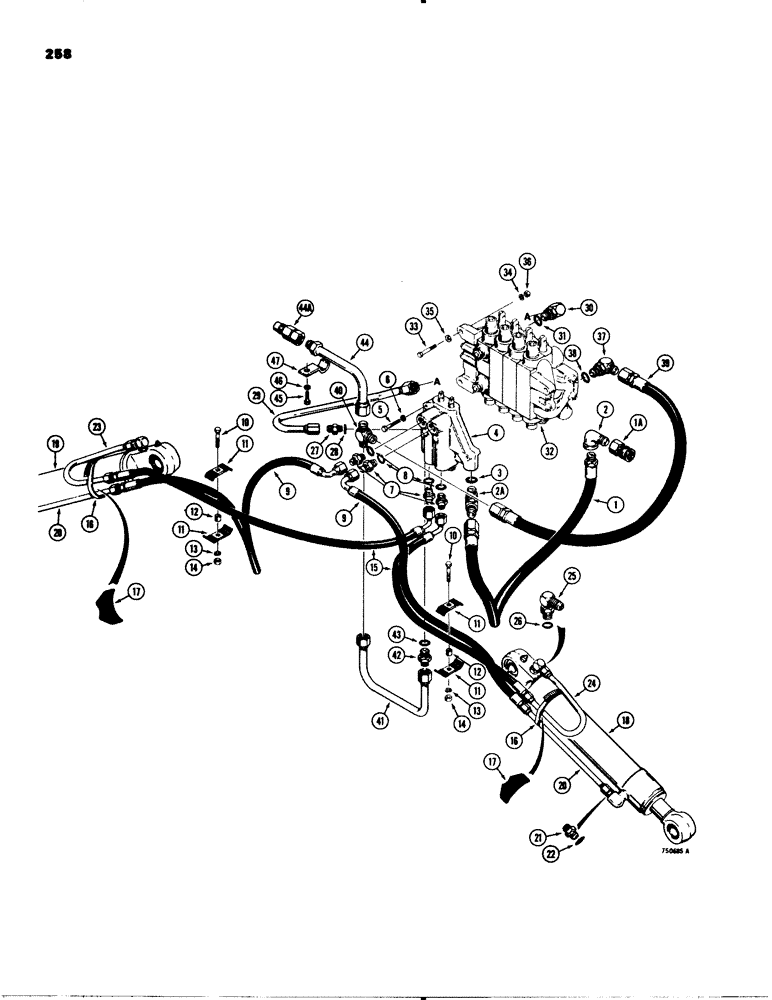

Запчасти Case 580C (258) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D56094

HOSE

- pressure from loader valve to stabilizer valves 39" (991 mm) long

1шт.

1a

D52800

COUPLING, QUICK, FEM

COUPLING - disconnect, female, parts list Figure 370

1шт.

2

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

2a

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Replaces 90 degree elbow on some models, Includes: Ref. 3 45º, 1 5/16"-12 x 1 1/16"-12, 37º

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

4

D62348

VALVE

- stabilizer control, parts list Figure 340

1шт.

5

13-535

BOLT - hex, 5/16" - 18 NC x 2-1/4"

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, Includes Ref. 8

4шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

9

D65652

HOSE,9.53mm ID x 990.6mm L, SAE 100R2

- to rod end of cylinder, 39" (991 mm) long

2шт.

10

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8" - 16 NC x 2-1/2"

2шт.

11

D40236

CLAMP

- hose

4шт.

12

D34244

SPACER

- clamp

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

15

D56043

HOSE,9.53mm ID x 863.6mm L, SAE 100R2

- to closed end of cylinder, 34" (864 mm) long

2шт.

16

214-270

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

CLAMP - tube

2шт.

17

D38648

BLOCK

SPACER - tube, rubber

2шт.

18

REF

INSTRUCTION

CYLINDER - stabilizer, RH, parts list Figure 390 or 392

1шт.

19

REF

INSTRUCTION

CYLINDER - stabilizer, LH, parts list Figure 390 or 392

2шт.

20

D55865

TUBE

- to rod end of cylinder

2шт.

21

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting - male, straight adapter, Incl. Ref 22 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

23

D55360

TUBE

- to closed end of cylinder, LH

1шт.

24

D55357

TUBE

- to closed end of cylinder, RH

1шт.

25

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 degree, adjustable, Includes: Ref. 26

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

27

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight adapter, Incl. Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

29

D68573

TUBE

- power beyond port of stabilizer valve to backhoe valve

1шт.

30

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Includes: Ref. 31 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

32

REF

INSTRUCTION

VALVE - backhoe control, parts list Figure 342

1шт.

33

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

34

92-8

LOCK WASHER,1/2"

3шт.

35

95-8

WASHER,1/2"

flat 1/2"

3шт.

36

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

37

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 38

1шт.

38

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

39

D67792

HOSE

- backhoe valve return, models without extendahoe, 32" (813 mm) long

1шт.

39

D73346

HOSE

- backhoe valve return, models with extendahoe, 34" (864 mm) long

1шт.

40

218-590

TEE,37º, 1 5/16"-12 x 1 1/16"-12, Run

FITTING - tee, backhoe return

1шт.

41

D68315

TUBE

- return from stabilizer valve

1шт.

42

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - male, straight adapter, Includes: Ref. 43

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

44

D72091

HYD TUBE,1" OD x 4.1, 5.1" L

TUBE - return to tank

1шт.

44a

D52694

QUICK MALE COUPLING

COUPLING - disconnect, male, parts list Figure 370

1шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

46

92-6

LOCK WASHER,3/8"

1шт.

47

D55880

CLAMP

- tube

1шт.
