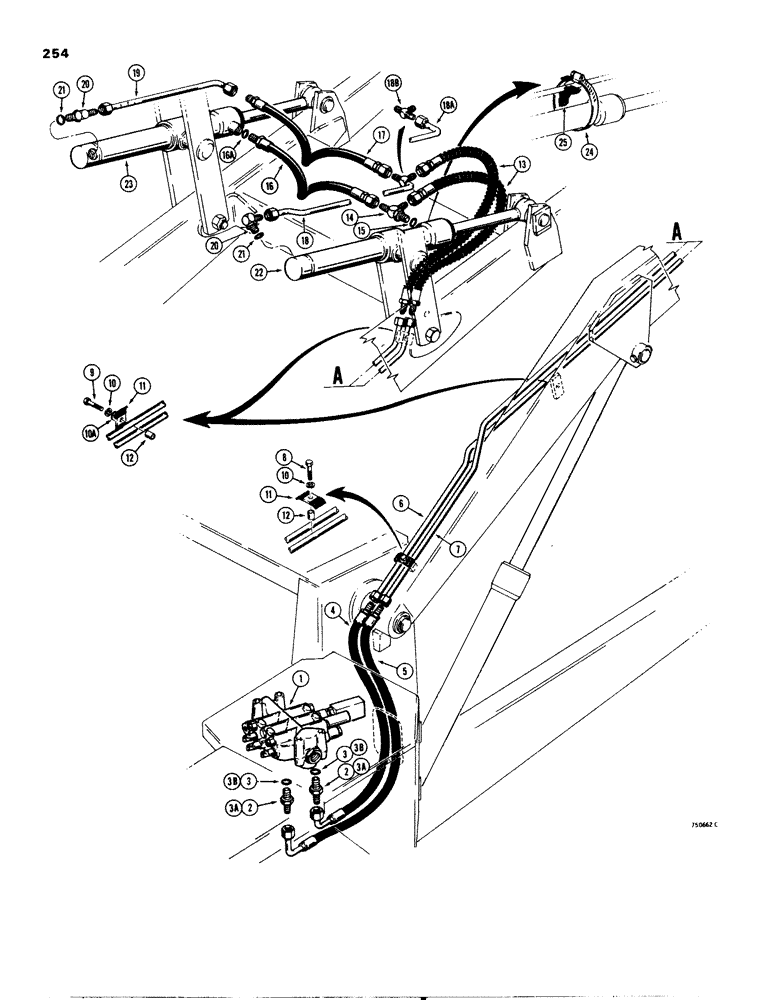

Запчасти Case 580C (254) - LOADER BUCKET TILT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - loader control, see Figures 306-312 and 330 for proper valve

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, male, straight, used with Parker valve only, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

3a

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight connector, used with Hydreco valve only, Includes: Ref. 3B

2шт.

3b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

4

D67896

HOSE

- valve to tilt cylinders, 34" (864 mm) long

1шт.

5

D67897

HOSE

- valve to tilt cylinders, 36" (914 mm) long

1шт.

6

D69462

HYD TUBE,0.5" OD x 64.1, 15.12" L

TUBE - to tilt cylinders

1шт.

7

D69460

HYD TUBE,0.5" OD x 62.69, 13.97" L

TUBE - to tilt cylinders

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16" - 18 NC x 1-1/4"

2шт.

10

92-5

LOCK WASHER,5/16"

3шт.

10a

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

11

R17319

CLAMP

- tube

3шт.

12

D76208

SPACER

- tube clamp

3шт.

13

D31370

HOSE

- tubes to tilt cylinders, 30-7/16" (773 mm) long with wire guard, if used

2шт.

13

D73244

HOSE

- tubes to tilt cylinders, 30-7/16" (773 mm) long without wire guard, if used

2шт.

14

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - tee, hoses to rod end of tilt cylinders, Includes: Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

16

D67731

HOSE,12.7mm ID x 812.8mm L, SAE 100R2

- to rod end of LH tilt cylinders, 32" (813 mm) long, Includes: Ref. 16A

1шт.

16a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

17

D67730

HOSE

- to closed end of LH tilt cylinders, 32" (813 mm) long used with D61058 tube, see Ref. 18

1шт.

18

D61058

TUBE

- RH bucket cylinder, with braized tee fittings, if used

1шт.

18a

D73800

HYD TUBE,0.5" OD x 22.5, 2" L

TUBE - RH bucket cylinder, without braized tee fittings, if used

1шт.

18b

218-586

TEE,37 Degree, 7/8"-14 x 3/4"-16, Run

FITTING - tee, if used

1шт.

19

D38637

TUBE

- LH tilt cylinder

1шт.

20

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 degree, adjustable, Includes: Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

22

REF

INSTRUCTION

CYLINDER - RH bucket, parts list Figure 378 or 380

1шт.

23

REF

INSTRUCTION

CYLINDER - LH bucket, parts list Figure 378 or 380

1шт.

24

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - tube

2шт.

25

D38648

BLOCK

SPACER - rubber

2шт.
