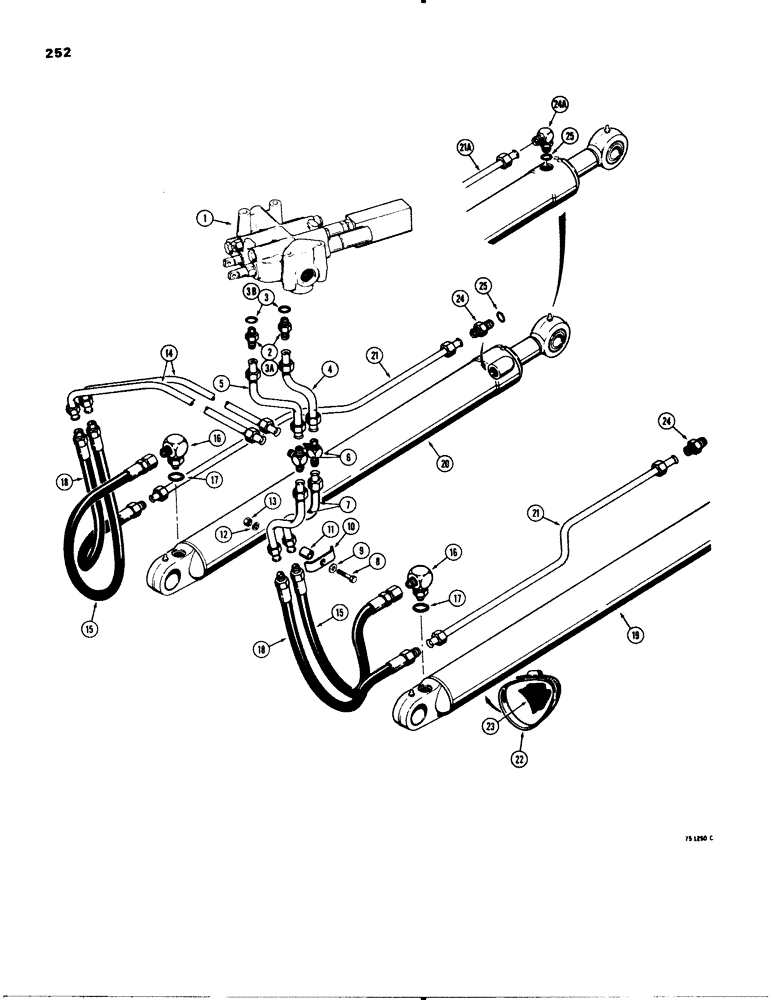

Запчасти Case 580C (252) - LOADER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - loader control, see Figures 306-312 and 330 for proper valve

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - male, straight connector, used with Parker valve only, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

3a

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight connector, used with Hydreco valve only, Includes: Ref. 3B

2шт.

3b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

4

D67507

TUBE

- valve to closed end of lift cylinders

1шт.

5

D67506

TUBE

- valve to rod end of lift cylinders

1шт.

6

218-595

TEE,7/8"-14, 37 Degree

- RH to LH lift cylinders

2шт.

7

D67329

TUBE

- RH lift cylinders

2шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

9

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

10

D40236

CLAMP

- tube

2шт.

11

D76209

SPACER

- tube clamp

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

14

D67331

TUBE

- to LH lift cylinder

2шт.

15

35646

HOSE

- closed end of lift cylinder, 22-3/4" (572 mm) long

2шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 degree, adjustable, Incl. Ref. 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

18

D38485

HOSE,12.7mm ID x 571.5mm L, SAE 100R2

- rod end of RH lift cylinder, 22-3/4" (572 mm) long

2шт.

19

REF

INSTRUCTION

CYLINDER - lift, RH, parts list Figure 374 or 376

1шт.

20

REF

INSTRUCTION

CYLINDER - lift, LH, parts list Figure 374 or 376

1шт.

21

D69415

HYD TUBE,0.625" OD x 35, 3.4" L

TUBE - rod end of lift cylinder, used with Ref. 24

2шт.

21a

D76890

TUBE

- rod end of lift cylinder, used with Ref. 24A

2шт.

22

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - tube

2шт.

23

D38648

BLOCK

SPACER - rubber, tube

2шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - male, straight connector

1-2шт.

24a

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - male, 90 degree, if used, Incl. Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 218-5062 and 218-5107 fittings

1шт.
