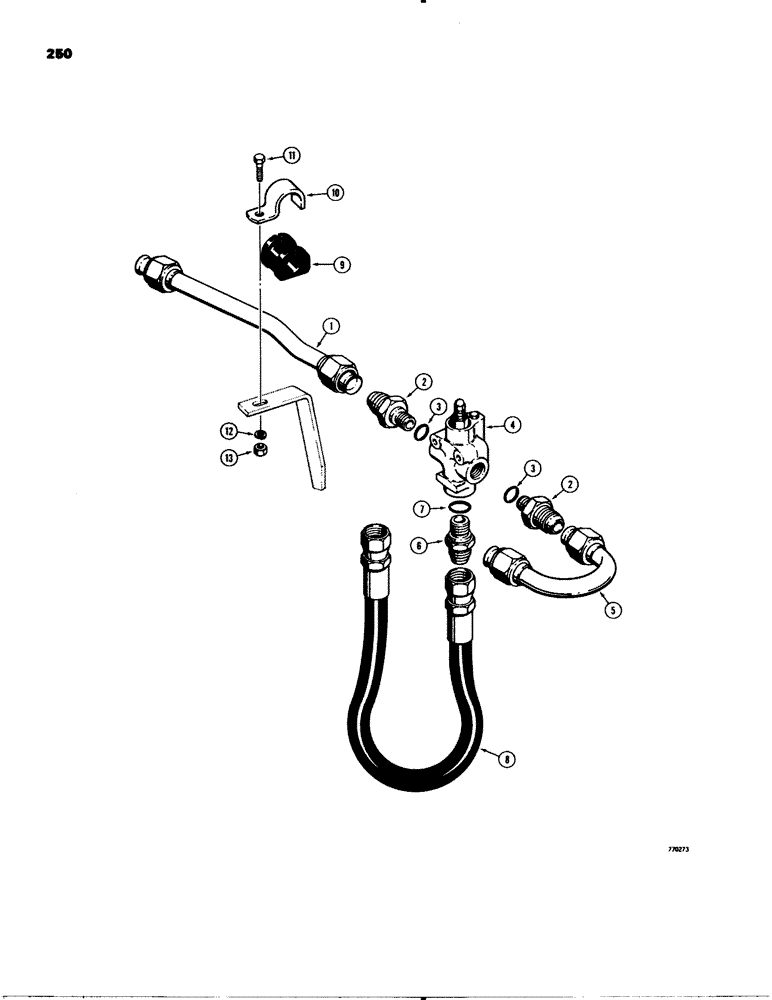

Запчасти Case 580C (250) - EQUIPMENT HYDRAULIC CIRCUIT, SPECIAL PARTS USED ON TRACTORS W/O LOADERS (08) - HYDRAULICS

1

D72229

TUBE - pressure, to relief valve

1шт.

2

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - straight adapter, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

4

D71668

VALVE

- equipment relief, parts list Figure 354

1шт.

5

D72227

TUBE

- pressure, to rear equipment

1шт.

6

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, Incl. Ref. 7

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

8

D49224

HOSE

- return, 28" (711 mm) long

1шт.

9

D67297

BLOCK

CUSHION - tube clamp

1шт.

10

D68846

CLAMP

- tube

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

25-106

NUT,3/8"-16, G5

- hex, lock, 3/8" - 16 NC

1шт.
