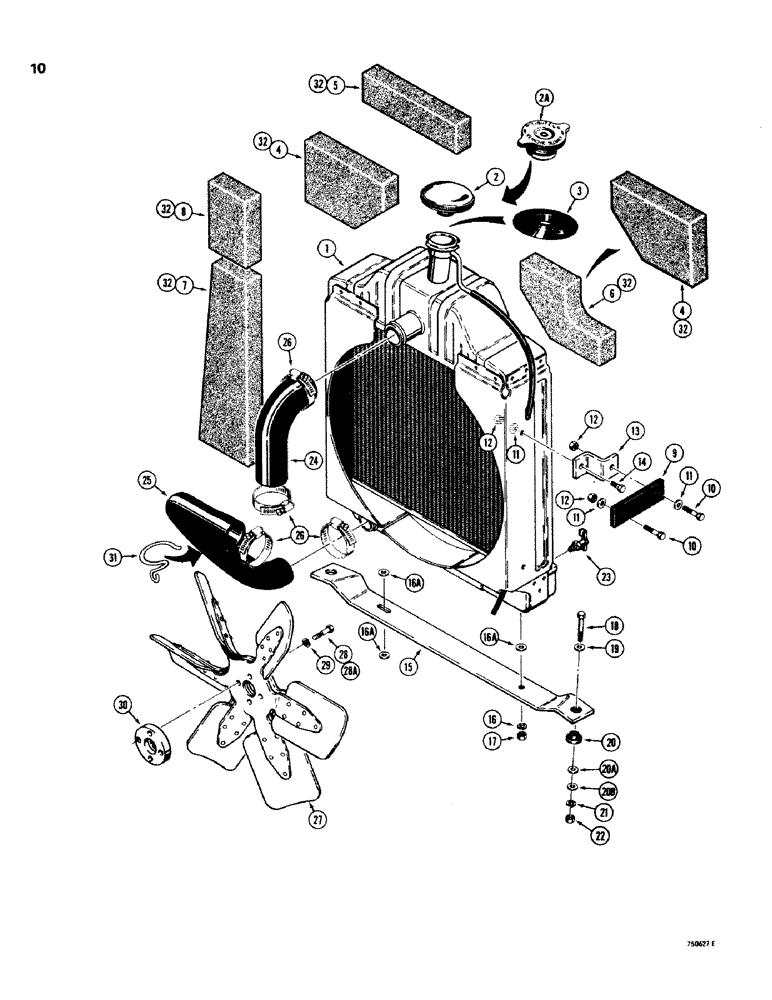

Запчасти Case 580C (010) - RADIATOR, FAN AND MOUNTING PARTS (02) - ENGINE

1

D89103

RADIATOR

- engine cooling, interchangeable with D77843

1шт.

2

A39359

CAP

- radiator, black, dome top

1шт.

2a

NSS

NOT SOLD SEPARAT

CAP - radiator, plain, if used, order A39359

1шт.

3

D69037

GROMMET

- radiator

1шт.

4

D69065

BAFFLE

- radiator, top, cut from D92228, base size is 8" (203 mm) x 5-1/2" (140 mm)

1-2шт.

5

D69067

BAFFLE

- radiator, top center, cut from D92228, base size is 9" (229 mm) x 2-1/2" (64 mm)

1шт.

6

D69064

BAFFLE

- radiator, top, RH, used on models with air cleaner tube extending toward the front, cut from D92228, base size is 8" (203 mm) x 5-1/2" (140 mm)

1шт.

7

D69068

BAFFLE

- radiator, side, cut from D92228, base size is 16.3" (414 mm) x 5" (127 mm)

2шт.

8

D69066

BAFFLE

- radiator, side, cut from D92228, base size is 3.8" (97 mm) x 5.8" (147 mm)

2шт.

9

D73500

STRAP

- radiator mounting, side

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

11

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

12

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self lock, 3/8" - 16 NC

6шт.

13

D68976

BRACKET

- radiator mounting

2шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

D68953

BAR

- radiator mounting

1шт.

16

92-6

LOCK WASHER,3/8"

if used 3/8"

2шт.

16a

95-6

WASHER,3/8"

- flat, if used 3/8"

3шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

2шт.

17

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC, if used

2шт.

18

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

20

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION - rubber

2шт.

20a

195-2034

WASHER,7/16" x 1 1/4" x .134"

- flat, special

2-4шт.

Two 195-2034 washers are required under each radiator mount on models with D72300 equipment pump. See Figure 304.

1шт.

20b

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self lock, 3/8" - 16 NC

2шт.

23

217-103

COCK, DRAIN

VALVE - water drain

1шт.

24

D68799

RADIATOR HOSE,2.00" ID x 6.25", SAE 20R4 CLASS R GRADE 1A

Upper 2.00" ID x 6.25", SAE 20R4 CLASS R GRADE 1A

1шт.

25

D68800

HOSE

- radiator, lower

1шт.

26

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

27

D86230

FAN

- suction

1шт.

Model 580C was not engineered for a "pusher" fan. The concern is that the oil cooler could get too hot from the radiator.

1шт.

28

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16"-18 NC x 1-1/2", If used

4шт.

Use 1-1/2" fan bolts when the fan has a double center plate, and 1-1/4" fan bolts when the fan has a single center plate.

1шт.

28a

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16" - 18 NC x 1-1/4", if used

4шт.

Use 1-1/2" fan bolts when the fan has a double center plate, and 1-1/4" fan bolts when the fan has a single center plate.

1шт.

29

92-5

LOCK WASHER,5/16"

4шт.

30

D66937

SPACER

- fan

1шт.

31

D82192

SUPPORT

- lower radiator hose, if used

1шт.

32

D92228

BAFFLE

- bulk pad, 1400 mm x 900 mm x 38 mm

1шт.
