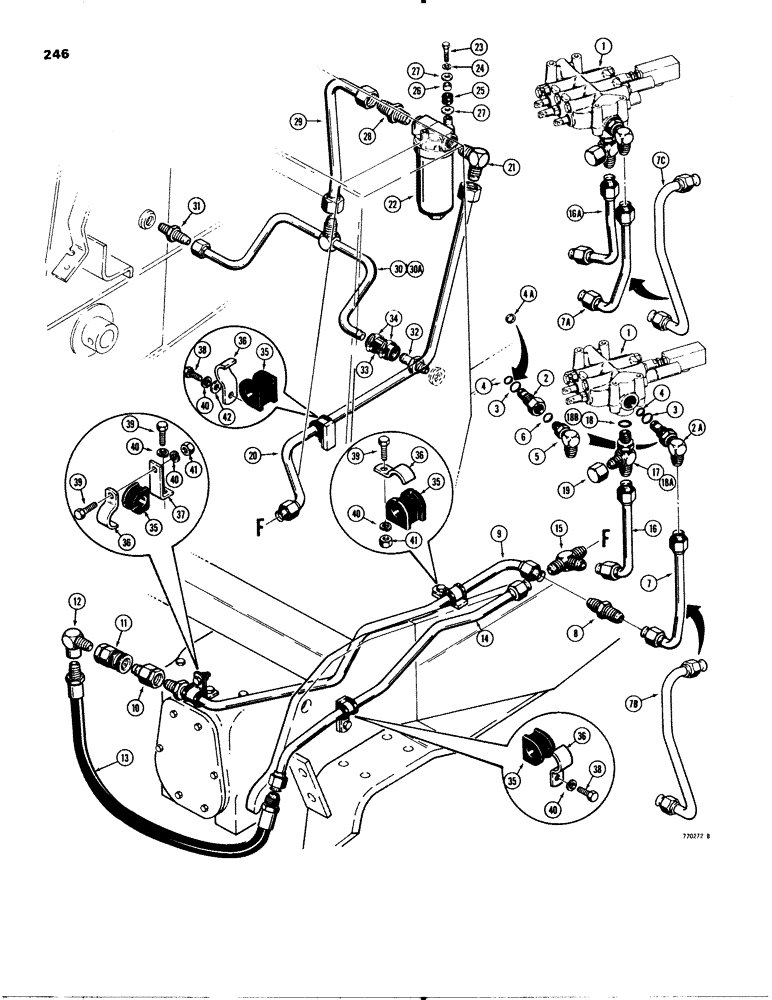

Запчасти Case 580C (246) - EQUIPMENT HYDRAULIC CIRCUIT, REAR EQUIPMENT AND RETURN LINES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - loader control, see Figures 306-312 and 330

1шт.

For equipment relief valve and connecting parts on models without loader, see Figure 250.

1шт.

2

D61251

FITTING

ASSEMBLY - straight, special sleeve, used with Parker valve only

1шт.

For equipment relief valve and connecting parts on models without loader, see Figure 250.

1шт.

2a

NSS

NOT SOLD SEPARAT

FITTING ASSEMBLY - 90 degree, special sleeve, used, with Parder valve only, order Refs. 2 and 5, Includes: Ref. 3 - 4A

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large

1шт.

4

L32680

RING

O-RING - small, used on fittings without backup ring

1шт.

4

A25590

O-RING,15" ID x 1 1" OD x 3/32"

- small, used on fittings with backup ring

1шт.

4a

L31332

BACK-UP RING

- backup, A25590 o-ring, if used

1шт.

5

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes Ref. 6 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

For equipment relief valve and connecting parts on models without loader, see Figure 250.

1шт.

One piece elbow, P/N L114092, may also be used, see also Hydreco valve and N6583 valve on Figure 330

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

7

D67505

TUBE

- from two spool valve, used with single 12V battery

1шт.

For equipment relief valve and connecting parts on models without loader, see Figure 250.

1шт.

7a

D68629

TUBE,1" OD x 13.55, 5.79" L

- from three spool valve, used with single 12V battery

1шт.

For equipment relief valve and connecting parts on models without loader, see Figure 250.

1шт.

7b

D79120

TUBE

- from two spool Parker valve, used with two 6V batteries

1шт.

For equipment relief valve and connecting parts on models without loader, see Figure 250.

1шт.

7b

D90355

TUBE

- from two spool Hydreco valve, used with two 6V batteries

1шт.

7c

D79118

TUBE - from three spool valve, used with two 6V batteries

1шт.

For equipment relief valve and connecting parts on models without loader, see Figure 250.

1шт.

8

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

FITTING - male connector

1шт.

9

D72095

HYD TUBE,1" OD x 17.5, 33" L

TUBE - to hydraulic coupling

1шт.

10

D52694

QUICK MALE COUPLING

COUPLING - disconnect, male, parts list Figure 370

1-2шт.

11

D52800

COUPLING, QUICK, FEM

COUPLING - disconnect, female, parts list Figure 370

1-2шт.

12

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

13

D49118

HOSE

- return, 33" (838 mm) long

1шт.

14

D70855

HYD TUBE,1" OD x 5.25, 37" L

TUBE - return, rear equipment

1шт.

15

218-598

TEE,1 5/16"-12 37 Degree

FITTING - tee, return lines

1шт.

16

D72402

HYD TUBE,1" OD x 3.77, 11.94" L

TUBE - 2 spool loader valve return

1шт.

For equipment relief valve and connecting parts on models without loader, see Figure 250.

1шт.

16a

D72398

TUBE

- 3 spool loader valve return

1шт.

For equipment relief valve and connecting parts on models without loader, see Figure 250.

1шт.

17

218-5583

TEE,37 Degree, 1 5/16"-12, 1 1/16"-12 O-Ring Run, 1 1/16"-12

FITTING - tee, at loader valve, used with Parker Valve only, Includes: Ref. 18

1шт.

For equipment relief valve and connecting parts on models without loader, see Figure 250.

1шт.

18

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

18a

218-5584

TEE,37 Degree, 1 5/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

FITTING - tee, at loader valve, used with Hydreco valve only, Includes: Ref. 18B

1шт.

18b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

19

218-335

CAP,37 Degree, 1 1/16"-12

Tee 37º, 1 1/16"-12

1шт.

20

D67717

TUBE

- filter inlet, models without PTO, for models with PTO see Figure 287 or 289

1шт.

21

D65646

FITTING

- 90 degree, models without PTO, for models with PTO see Figure 287 or 289

1шт.

22

REF

INSTRUCTION

FILTER - hydraulic oil, see Figure 369

1шт.

23

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

D67915

GROMMET

- rubber mounting

2шт.

26

D65660

BUSHING

SPACER - filter mounting

2шт.

27

195-36

WASHER

- flat, 1/2"

4шт.

28

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

FITTING - filter outlet, male connector

1шт.

29

D67711

TUBE

- return from filter

1шт.

30

D68536

TUBE

- return to tank, models without PTO

1шт.

30a

D71941

TUBE

- return to tank, models with PTO, see Figure 290

1шт.

31

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

FITTING - male, straight adapter

1шт.

32

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

- hose stem, RH reservoir

1шт.

33

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

1шт.

34

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

35

D67297

BLOCK

CUSHION - hydraulic tubes

4шт.

36

D68846

CLAMP

- tube

4шт.

37

D65647

BRACKET

- tube support

1шт.

38

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

39

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

40

92-6

LOCK WASHER,3/8"

5шт.

41

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

42

195-25

WASHER,3/8"

- flat, 3/8"

1шт.
