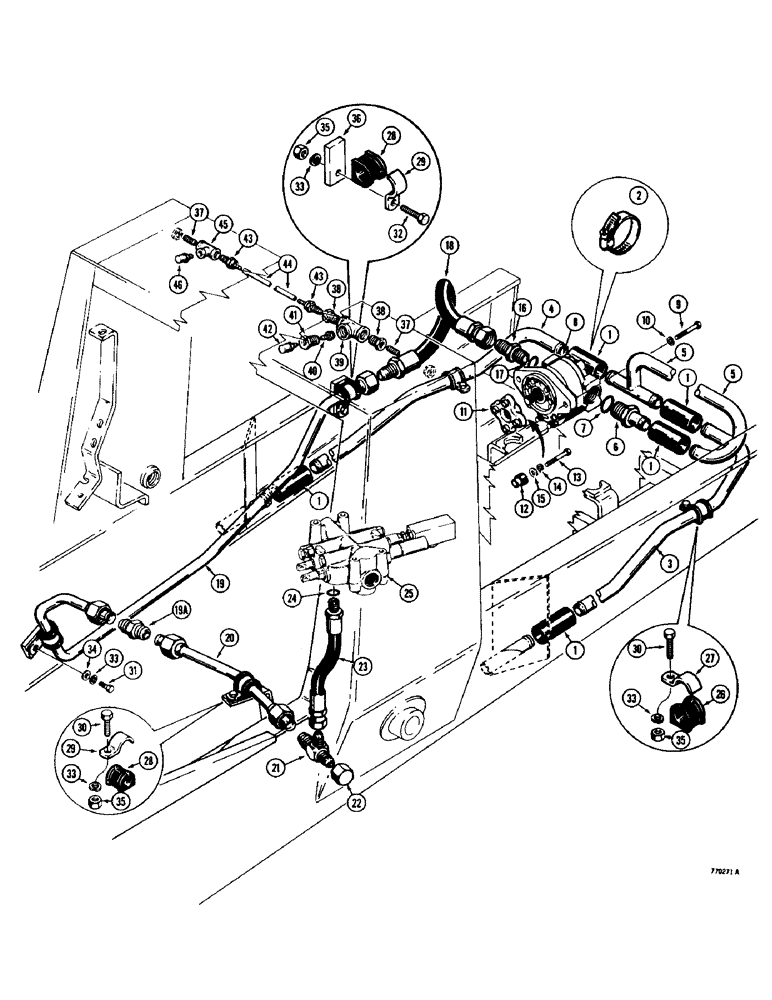

Запчасти Case 580C (244) - EQUIPMENT HYDRAULIC CIRCUIT, RESERVOIR TO LOADER VALVE (08) - HYDRAULICS

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction tubes

5шт.

2

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

10шт.

3

D65670

TUBE

- suction, RH

1шт.

4

D65659

TUBE

- suction, LH

1шт.

5

D65691

TUBE

- manifold, suction

1шт.

6

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Hose stem, at pump, Incl. Ref. 7 1 1/4" Hose X 1 5/8"-12 ORB, Beaded

1шт.

7

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- fitting

1шт.

8

REF

INSTRUCTION

PUMP - see Figure 300 - 302 for correct pump

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

A51885

COUPLING, BREAK AWAY

COUPLING - equipment hydraulic pump, Includes: Ref. 12

1шт.

P/N A51885 coupling, this item bolts up to fan drive pulley, see Ref. 11 on Figure 038

1шт.

12

A45216

BUSHING

- pump coupling

4шт.

13

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

14

92-7

LOCK WASHER,7/16"

4шт.

15

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flat, special

4шт.

16

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Straight, Male, Incl. Ref. 17 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

18

D68547

HOSE,19.05mm ID x 200mm L, SAE 100R2

- pump pressure, 20" (508 mm) long

1шт.

19

D84099

HYD TUBE,1" OD x 13.73, 47.29" L

TUBE - pressure, also order Ref. 19A if needed

1шт.

19a

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

FITTING - straight connector, if used

1шт.

20

D72400

TUBE

- pressure, to loader valve

1шт.

For models without loader, see Figure 250.

1шт.

21

218-589

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Run

FITTING - tee

1шт.

For models without loader, see Figure 250.

1шт.

22

218-335

CAP,37 Degree, 1 1/16"-12

Tee

1шт.

For models without loader, see Figure 250.

1шт.

23

D73319

HOSE

- to loader valve, 14" (356 mm) long, Includes: Ref. 24

1шт.

For models without loader, see Figure 250.

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- hose

1шт.

25

REF

INSTRUCTION

VALVE - loader control, see Figures 306-312 and 330

1шт.

For models without loader, see Figure 250.

1шт.

26

D67298

INSULATOR

CUSHION - suction tubes

2шт.

27

D68845

MOUNTING CLIP

CLAMP - suction tubes

2шт.

28

D67297

BLOCK

CUSHION - pressure tubes

3шт.

29

D68846

CLAMP

- pressure tubes

3шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

31

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

33

92-6

LOCK WASHER,3/8"

5шт.

34

195-25

WASHER,3/8"

- flat

1шт.

35

25-106

NUT,3/8"-16, G5

- hex

4шт.

36

D68806

PLATE - spacer

1шт.

37

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

2шт.

38

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducer

2шт.

39

221-441

TEE,1/2" NPT x 3/4 NPT Br

FITTING - tee, RH side

1шт.

40

D63543

BREATHER

- relief valve

1шт.

41

D63506

ADAPTER

VALVE - relief, inlet

1шт.

42

R15538

VALVE

- relief, inlet

1шт.

43

220-502

COUPLING, BREAK AWAY

FITTING - hose coupling

2шт.

44

D72098

HOSE,0.25" ID x 17.00", SAE 30R6 or SAE 30R7

Relief Valve

1шт.

45

221-430

TEE,1/4" NPT x 1/4 NPT Br

- relief valve

1шт.

46

R15536

VALVE

- relief, outlet

1шт.
