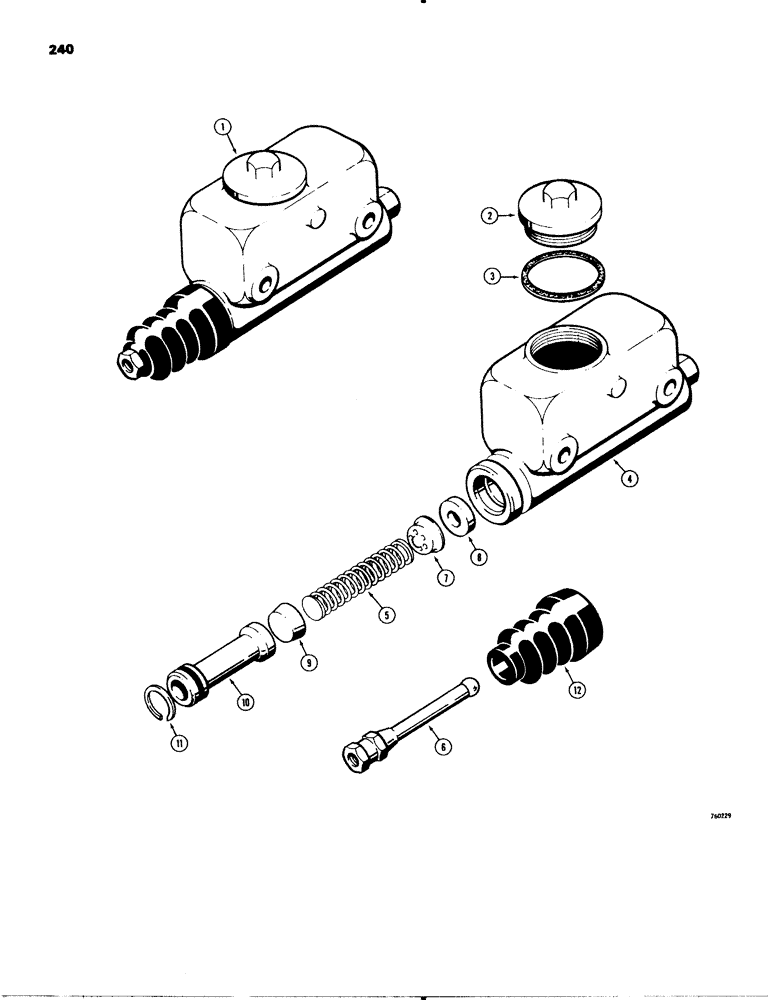

Запчасти Case 580C (240) - BRAKE MASTER CYLINDER (07) - BRAKES

1

L25419

MASTER CYLINDER

CYLINDER - master, brake, Includes: Ref. 2 - 12

1шт.

2

L32127

CYLINDER END CAP

CAP - filler

1шт.

3

L32128

GASKET

- filler cap

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

5

L32126

SPRING

- piston return

1шт.

6

L32137

ROD

- push

1шт.

L32129

KIT

- service, master cylinder, Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT - valve

1шт.

9

NSS

NOT SOLD SEPARAT

CUP - cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

RING - retainer, piston

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - cylinder, boot

1шт.
