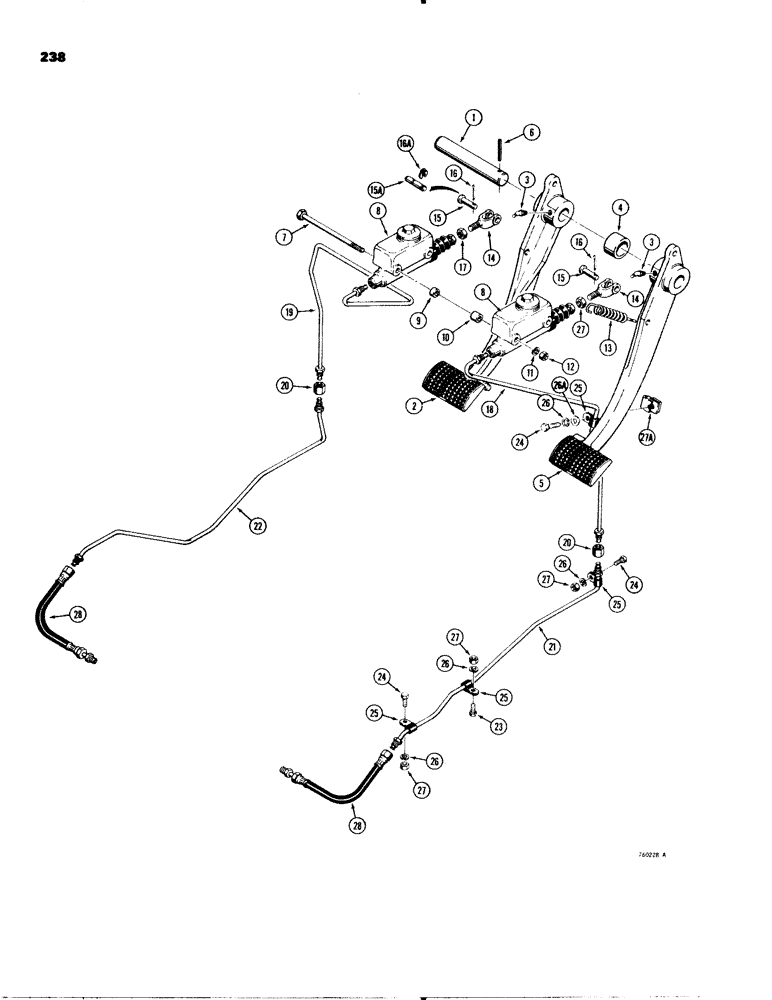

Запчасти Case 580C (238) - BRAKE PEDALS AND BRAKE SYSTEM, MECHANICAL SHUTTLE MODELS (07) - BRAKES

1

D67983

SHAFT

- brake pedals

1шт.

2

D67993

PEDAL

- brake, LH

1шт.

3

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8" NPT

2шт.

4

D67038

SPACER - brake

1шт.

5

D67988

PEDAL

- brake, RH

1шт.

6

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, 3/8" x 2", Slotted

1шт.

7

15-6104

X

BOLT - hex, 5/8" - 16 NC x 6-1/2"

2шт.

8

L25419

MASTER CYLINDER

CYLINDER - master, brake, parts list Figure 240

2шт.

9

D76211

SPACER

- master cylinder, LH

2шт.

10

D76207

BUSHING

SPACER - master cylinder, RH

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

13

D129921

SPRING

- brake pedal return

2шт.

14

D38620

YOKE

- master cylinder

2шт.

15

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - yoke, 7/16", used on units without brake lights

2шт.

15a

D68737

PIN

- brake light switch actuating, if used

2шт.

16

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", if used

2шт.

16a

G32429

RING

- retaining, if used

4шт.

17

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex, lock, 7/16" - 20 NF

2шт.

18

D68113

TUBE

- brake, RH, upper

1шт.

19

D68115

TUBE

- brake, LH, upper

1шт.

20

222-1053

HYD CONNECTOR,1/4" Inv Fl

UNION - tube, 7/16" - 24 thread

2шт.

21

D69282

HYD TUBE,0.25" OD x 25.06, 4.96" L

TUBE - brake, RH, lower

1шт.

22

D69280

HYD TUBE,0.25" OD x 25.06, 4.96" L

TUBE - brake, LH, lower

1шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

25

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type

6шт.

26

92-6

LOCK WASHER,3/8"

6шт.

26a

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

27a

131-634

SPRING NUT,J, Ret, 3/8"-16

- speed, J-type, 3/8" - 16 NC

2шт.

28

D66741

HOSE,6.35mm ID x 270mm L

- brake

2шт.
