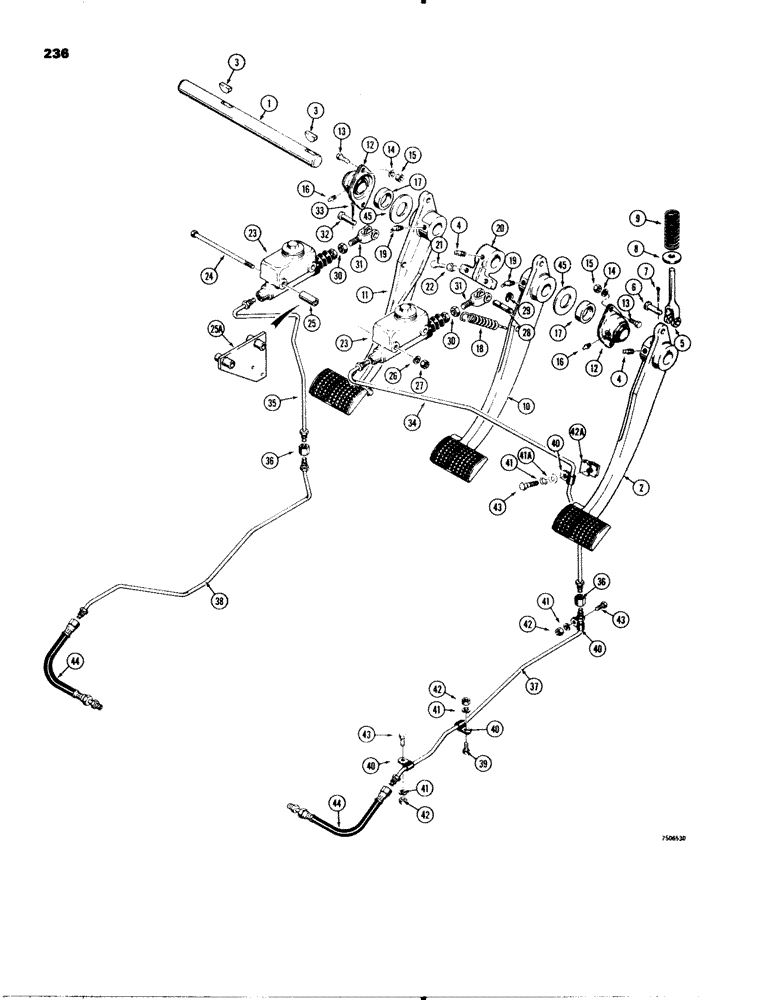

Запчасти Case 580C (236) - BRAKE PEDALS AND BRAKE SYSTEM, POWER SHUTTLE MODELS ONLY (07) - BRAKES

1

D66125

SHAFT

- brake pedals

1шт.

2

D67987

PEDAL

- brake, RH

1шт.

3

126-33

WOODRUFF KEY,#D, 5/16" x 1 1/4"

#D, 5/16" x 1-1/4"

2шт.

4

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8" - 16 NC x 3/4"

2шт.

5

D66142

YOKE

- brake, RH pedal

1шт.

6

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - clevis, 7/16"

1шт.

7

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

8

95-7

WASHER,7/16"

- flat, 7/16"

1шт.

9

D72404

SPRING

- brake pedal, RH

1шт.

10

D67988

PEDAL

- brake, center

1шт.

11

D67993

PEDAL

- brake, LH

1шт.

12

D77731

FLANGED BEARING

BEARING - flanged, brake pedal mounting

2шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

16

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8" NPT

2шт.

17

D73014

SPACER

- brake

2шт.

18

D129921

SPRING

- brake return

2шт.

19

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8" NPT

2шт.

20

D68123

STOP

- brake

1шт.

21

113-242

BOLT

BOLT - hex, 3/8" - 16 NC x 1-1/4"

2шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

23

L25419

MASTER CYLINDER

CYLINDER - master, brake, parts list Figure 240

2шт.

24

15-6120

BOLT

- hex head, 3/8" - 16 NC x 7-1/2"

2шт.

25

D76196

SPACER

- if used

2шт.

25a

D84103

PLATE - brake light switch, used on, Start Serial: 8984111

1шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

28

D68737

PIN

- actuating, used, Serial Range: -8984111

1-2шт.

29

G32429

RING

- retaining, if used

2-4шт.

30

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex, lock, 3/16" - 20 NF

2шт.

31

D38620

YOKE

- brake master cylinder

2шт.

32

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - yoke, 7/16", if used

1-2шт.

33

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", if used

1-2шт.

34

D68109

TUBE

- brake, RH, upper

1шт.

35

D68111

TUBE

- brake, LH, upper

1шт.

36

222-1053

HYD CONNECTOR,1/4" Inv Fl

UNION - tube, 7/16" - 24 thread

2шт.

37

D69282

HYD TUBE,0.25" OD x 25.06, 4.96" L

TUBE - brake, RH, lower

1шт.

38

D69280

HYD TUBE,0.25" OD x 25.06, 4.96" L

TUBE - brake, LH, lower

1шт.

39

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

40

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube

6шт.

41

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

41a

92-6

LOCK WASHER,3/8"

2шт.

42

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

42a

131-634

SPRING NUT,J, Ret, 3/8"-16

- speed, J-type, 3/8" - 16 NC

2шт.

43

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

44

D66741

HOSE,6.35mm ID x 270mm L

- brake

2шт.

45

195-2125

WASHER,1 5/16" x 2" x .109"

- flat, 2"

1шт.
