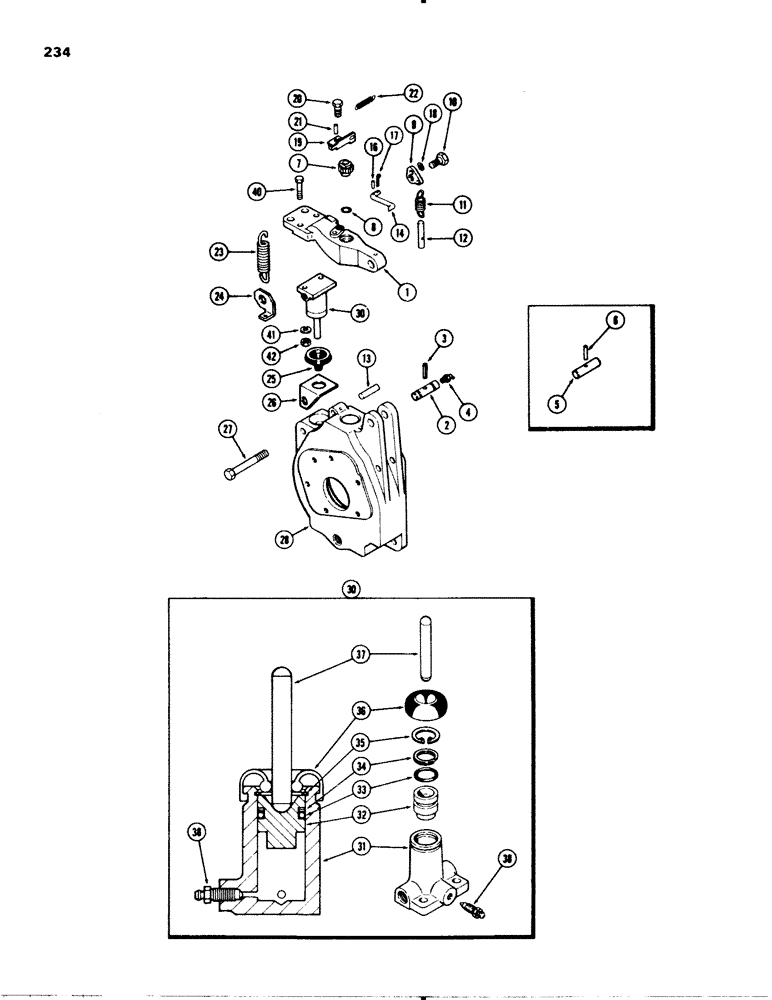

Запчасти Case 580C (234) - DIFFERENTIAL BRAKE LEVER AND LOCK, TRANSAXLE / DIFFERENTIAL BRAKE CYLINDER (07) - BRAKES

1

A51969

LEVER

- brake

2шт.

2

A154569

PIN

- pivot (Starting with transmission serial no. 10218749)

2шт.

3

138-2028

PIN,3/16" x 1 1/4", Coiled

Starting with transmission S/N 10218749 3/16" x 1 1/4", Coiled

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

5

A62822

PIN

- pivot (Before transmission), Serial Range: -10218749

2шт.

6

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, (Before transmission) 3/16" x 1 1/4", Slotted, Serial Range: -10218749

2шт.

7

A148118

NUT

- ratchet, brake adjusting

2шт.

8

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- 3/8 x 9/16 x 3/32" (9.53 x 14.29 x 2.38 mm)

2шт.

9

A64490

CAM

- self adjusting, brake

2шт.

10

A58471

STEP BOLT

BOLT - cam pivot

2шт.

11

A60489

SPRING

- adjusting cam

2шт.

12

A51971

ROD

PIN - spring limit

2шт.

13

REF

INSTRUCTION

PIN - spring anchor (See Figure 233)

2шт.

14

A51970

ROD

- lock ratchet

2шт.

16

138-20

LOCK PIN,5/64" x 1/2", Slotted

PIN - roll, 1/16 x 1/2"

2шт.

17

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

18

S67607

SNAP RING,#25, Ext

Ring, Snap, , grip, rod to cam #25, Ext

2шт.

19

A59609

BRACKET

- self adjusting brake

2шт.

20

61-68

HEX SOC SCREW,3/8"-16 x 1/2"

BOLT - 3/8 x 1/2" NC socket head

2шт.

21

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

2шт.

22

A60555

SPRING

- return, ratchet rod

2шт.

23

A35789

SPRING

- brake return

2шт.

24

A51974

BRACKET

- RH anchor, return spring

1шт.

24

A51975

BRACKET

- LH anchor, return spring

1шт.

25

A41490

BOOT

COVER - push rod, brake cylinder

2шт.

26

A154558

BRACKET

- RH cover

1шт.

26

A154557

BRACKET

- LH cover

1шт.

27

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

28

REF

INSTRUCTION

HOUSING - brake (See Figure 233)

2шт.

30

A51976

CYLINDER

ASSEMBLY - brake, 7/8" diameter cylinder (22.22 mm), Includes: Ref. 31- 42

2шт.

PLUG FOR UNUSED PORT IN REF 30, A51976 IS 222-1062 PER NOT IN HARD COPY CATALOG.

1шт.

222-1062

PLUG,7/16"-24, Inv Fl

For unused port in Ref 30 7/16"-24, Inv Fl

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

A45383

PISTON

ASSEMBLY, Includes: Ref. 32 - 34

1шт.

32

NSS

NOT SOLD SEPARAT

PISTON

1шт.

33

L32132

O-RING,0.679" ID x 0.106" Width

- piston, 11/16 x 7/8 x 3/32" (17.46 x 22.2 x 2.38 mm)

1шт.

Part of repair kit P/N A45387

1шт.

34

A42252

SEALING RING

RING - o-ring backup

1шт.

Part of repair kit P/N A45387

1шт.

35

A42256

SNAP RING,0.901", Int, #90

piston 0.901", Int, #90

1шт.

Part of repair kit P/N A45387

1шт.

36

A45382

COVER

BOOT - cylinder weatherseal

1шт.

Part of repair kit P/N A45387

1шт.

37

A42254

ROD

- push

1шт.

Part of repair kit P/N A45387

1шт.

38

A41491

BLEEDER,1/4" - 28 x 23.37mm

- cylinder bleeder

1шт.

A45387

KIT

REPAIR KIT, wheel cylinder, Includes Ref. 33 - 37

2шт.

40

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Brake cylinder to lever Hex, 1/4"-20 x 1 1/4", G5

4шт.

41

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

42

25-104

NUT,1/4"-20, G5

4шт.
