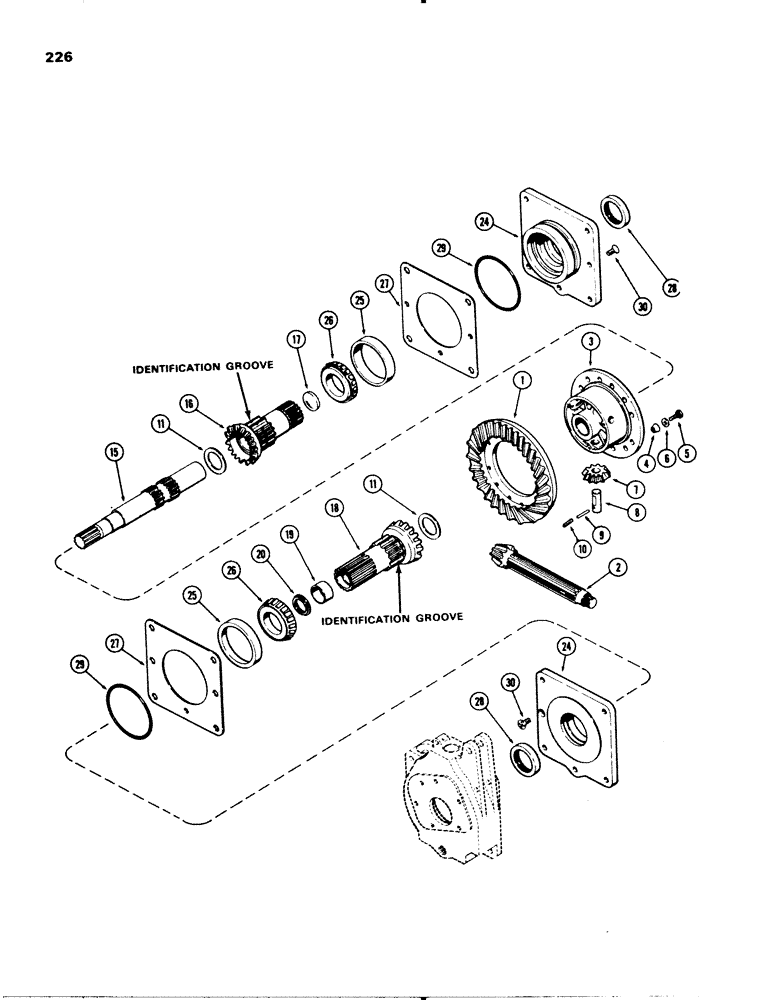

Запчасти Case 580C (226) - DIFFERENTIAL, TRANSAXLE (06) - POWER TRAIN

A168547

GEAR-SET

PINION AND RING GEAR - (Matched Set), Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring (Bolted type)

1шт.

2

NSS

NOT SOLD SEPARAT

PINION - bevel, 12-1/4" long (311.15 mm) (See Figure 221)

1шт.

3

NSS

NOT SOLD SEPARAT

- center

1шт.

Per note in hard copy catalog, the 4 dowel pins in back of this ring gear are p/n A155860.

1шт.

4

A153272

SPACER,9.91mm ID x 16mm OD x 8.89mm L

DOWEL - center wheel (split and tapered) (Replaces A140412)

12шт.

5

28-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8, Full Thd

BOLT - center wheel, 3/8 x 7/8" NF hex

12шт.

6

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- wheel bolt, 3/8 x 3/4 x 1/32" (9.53 x 19.05 x 0.79 mm)

12шт.

7

A142676

PINION

GEAR - pinion

3шт.

8

A146541

PIN

- pinion gear (Replaces A142356)

3шт.

9

A140705

PIN

- 3/16 x 2" Groove

3шт.

10

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

3шт.

138-94 roll pin - This item no longer used (since 1978).

1шт.

11

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust, center wheel, .089" (2.26 mm)

1шт.

If a .010 shim is req'd. use A29388

1шт.

11

A39007

WASHER

- thrust, center wheel, .094" (2.40 mm)

1шт.

11

A39008

WASHER

- thrust, center wheel, .099" (2.52 mm)

1шт.

11

A39009

WASHER

- thrust, center wheel, .104" (2.66 mm)

1шт.

11

A39010

WASHER

- thrust, center wheel, .109" (2.78 mm)

1шт.

11

A39011

WASHER

- thrust, center wheel, .119" (3.04 mm)

1шт.

15

A144266

SHAFT

- cross

1шт.

16

A50990

GEAR

ASSEMBLY - side, left hand, with identification groove on spur gear, Includes: Ref. 17

1шт.

17

A29902

PLUG

- 1-5/8" expansion (41.28 mm)

1шт.

18

A50989

SIDE ASSY.

GEAR ASSEMBLY - side, right hand, with identification groove on spur gear, Includes: Ref. 19

1шт.

19

A35921

BUSHING,34.89mm ID x 39.83mm OD x 20.65mm L

- 1-3/8 x 1-5/8 x 13/16" (34.93 x 41.28 x 20.64 mm)

1шт.

20

A49795

OIL SEAL

SEAL - oil, right hand side gear, 1-3/8 x 1-5/8 x 3/16" (34.93 x 41.28 x 4.76 mm)

1шт.

A146027 oil seal - Now subs to A49795 and is included in Ref. 18 (A50989 gear assembly).

1шт.

24

A140869

HOUSING

CARRIER ASSEMBLY - side gear bearing, Includes: Ref. 25

2шт.

25

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, 4-11/32" OD (110.33 mm)

1шт.

26

A30114

CONE

- bearing, 2-1/4" ID (57.15 mm)

2шт.

27

A39289

SHIM,.007" Thk

Bearing carrier (0.20 mm) .007" Thk

1шт.

27

G10719

SHIM,.005" Thk

Bearing carrier (0.14 mm) .005" Thk

1шт.

27

G10720

SHIM,.010" Thk

Bearing carrier (0.26 mm) .010" Thk

1шт.

28

A39273

OIL SEAL

- oil, 2-1/4 x 3 x 1/2" (57.15 x 76.2 x 12.7 mm)

2шт.

29

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

- 5 x 5-1/4 x 1/8" (127 x 133.35 x 3.18 mm)

2шт.

30

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- carrier to transmission housing, 3/8-16 x 1" flat slotted head

2шт.
