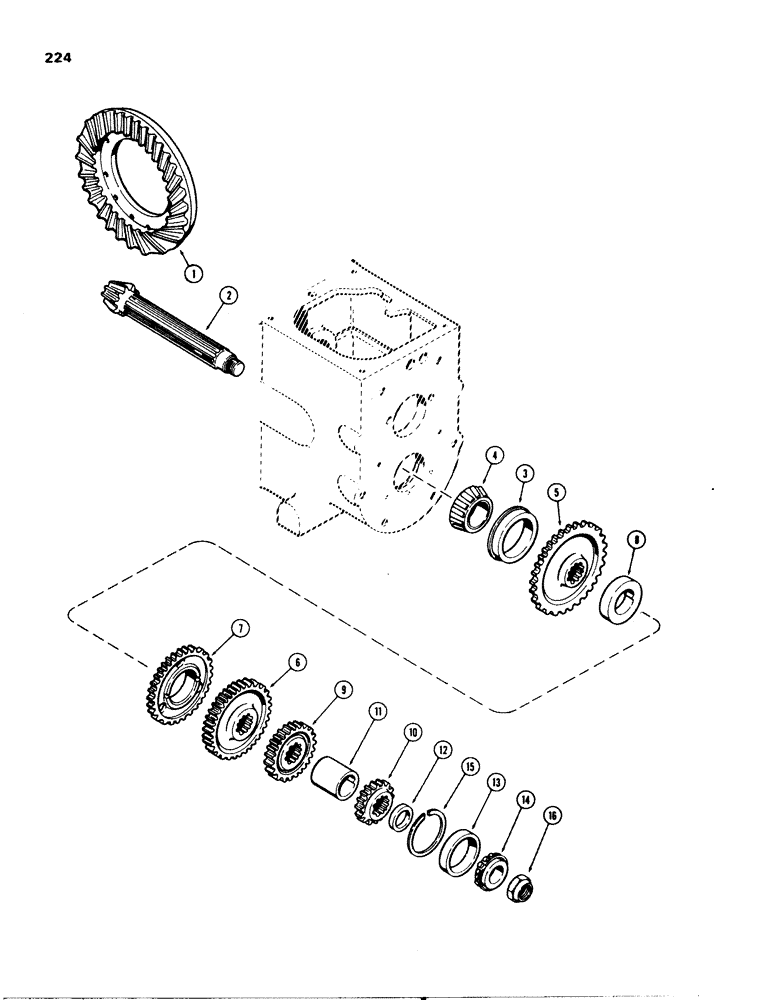

Запчасти Case 580C (224) - COUNTERSHAFT, TRANSAXLE (06) - POWER TRAIN

A168547

GEAR-SET

PINION AND RING GEAR - (Matched set), Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring (See Figure 223) (Bolt type)

1шт.

2

NSS

NOT SOLD SEPARAT

PINION - bevel, 12-1/4" long (311.15 mm)

1шт.

3

A30115

CUP

- bearing, rear, with snap ring, 3-1/2" OD (88.9 mm)

1шт.

4

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing, rear, 1-5/8" ID (41.28 mm)

1шт.

5

A38157

SPRING

- first (47 external and 10 internal teeth)

1шт.

6

A51961

GEAR

- second (38 external and 10 internal teeth)

1шт.

7

A51962

GEAR

- oil slinger (38 external teeth)

1шт.

8

A138847

SPACER

- first and second ger, 1-5/8 x 3 x 3/4" (41.28 x 76.2 x 19.05 mm)

1шт.

9

A51960

GEAR

- third (28 external and 10 internal teeth)

1шт.

10

A150248

PINION

GEAR - fourth (19 external and 10 internal teeth) (Replaces A51958 and A148195)

1шт.

11

A51959

SPACER

- third and fourth gears, 1-5/8 x 2-5/16 x 2-3/16" (41.28 x 58.74 x 55.56 mm)

1шт.

12

A38751

SPACER

- thrust, .254" (6.46 mm)

1шт.

12

A38752

SPACER

- thrust, .244" (6.20 mm)

1шт.

12

A38753

SPACER

- thrust, .239" (6.08 mm)

1шт.

12

A38754

SPACER

- thrust, .234" (5.95 mm)

1шт.

12

A38755

SPACER

- thrust, .229" (5.82 mm)

1шт.

12

A38756

SPACER

- thrust, .224" (5.70 mm)

1шт.

12

A38757

SPACER

- thrust, .219" (5.58 mm)

1шт.

12

A38758

SPACER

- thrust, .214" (5.44 mm)

1шт.

12

A38760

SPACER

- thrust, .218" (5.55 mm)

1шт.

12

A38759

SPACER

- thrust, .209" (5.32 mm)

1шт.

12

A38761

SPACER

- thrust, .204" (5.20 mm)

1шт.

12

A38762

SPACER

- thrust, .199" (5.06 mm)

1шт.

12

A38763

SPACER

- thrust, .194" (4.94 mm)

1шт.

12

A38764

SPACER

- thrust, .189" (4.82 mm)

1шт.

12

A38765

SPACER

- thrust, .184" (4.68 mm)

1шт.

12

A38766

SPACER

- thrust, .179" (4.56 mm)

1шт.

12

A38767

SPACER

- thrust, .174" (4.42 mm)

1шт.

12

A38768

SPACER

- thrust, .169" (4.30 mm)

1шт.

12

A38769

SPACER

- thrust, .164" (4.18 mm)

1шт.

13

A29977

BEARING CUP

CUP - bearing, 2-3/4" OD (69.85 mm)

1шт.

14

A30072

ROLLER BEARING,1.19" ID x 0.771"

CONE - bearing, rear, 13/16" ID (20.64 mm)

1шт.

15

A29971

RING

- snap, rear bearing retaining

1шт.

16

G49010

LOCK NUT

- adjusting, countershaft

1шт.
