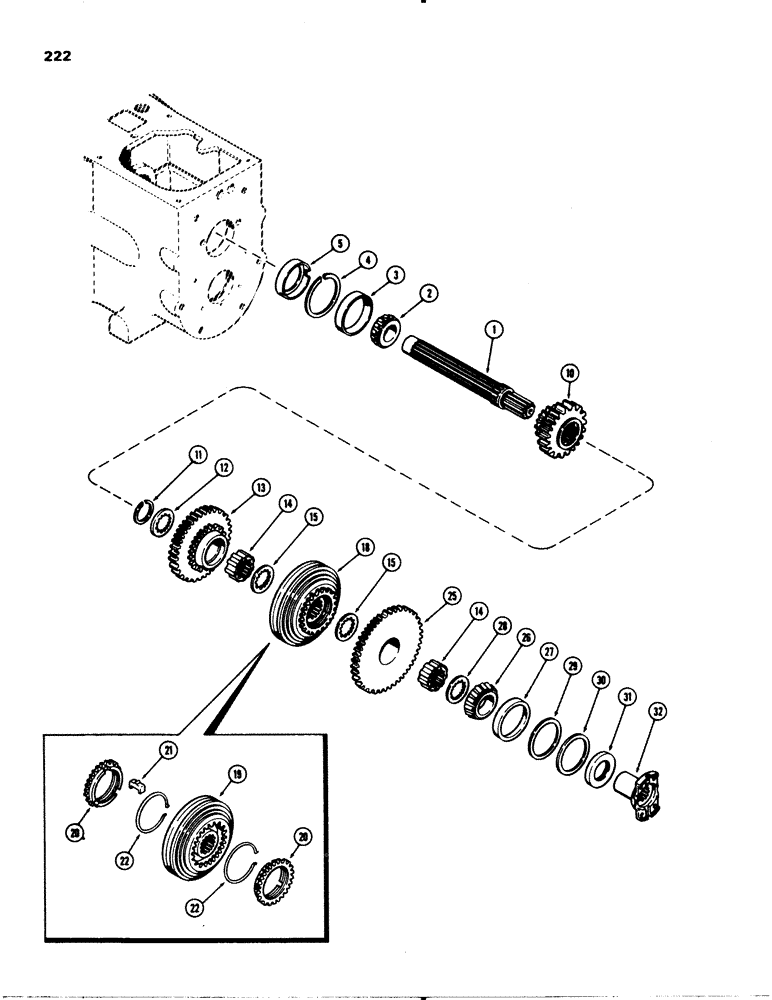

Запчасти Case 580C (222) - MAINSHAFT, TRANSAXLE (06) - POWER TRAIN

1

A148508

SHAFT

MAINSHAFT - (Used transmission) (Used with T20939 rear bearing cone) 1-1/4" (31.75 mm) rear bearing area diameter, Start Serial: 10043978

1шт.

1

A138301

SHAFT

MAINSHAFT - (Used transmission) (Used with A29976 rear bearing cone) 1-3/8" (34.93 mm) rear bearing area diameter. (Order 1-A48508 mainshaft and 1-T20939 rear bearing cone), Serial Range: -10043978

1шт.

2

T20939

ROLLER BEARING,1.25" ID x 0.771"

CONE - bearing, rear, 1-1/4" ID (31.75 mm) (Used with A148508 mainshaft)

1шт.

2

A29976

ROLLER BEARING

CONE - bearing, rear, 1-3/8" ID (34.93 mm) (Used with A138301 mainshaft)

1шт.

3

A29977

BEARING CUP

CUP - bearing, rear, 2-3/4" OD (69.85 mm)

1шт.

4

A29971

RING

- snap, rear bearing retaining

1шт.

5

G10616

CUP

- oiling, mainshaft, rear

1шт.

10

A168172

GEAR

- sliding, first and second (16 and 25 external and 24 internal teeth)

1шт.

11

A26946

RING

- snap, gear retaining

1шт.

12

A140239

COLLAR,24T

COLLAR - thrust, third and fourth gears (24 internal teeth)

1шт.

13

A136597

GEAR

- sliding, third (27 and 35 external teeth)

1шт.

14

A51956

SYNCHRONIZER,24T

- third and fourth gears (24 internal teeth)

2шт.

15

A138572

WASHER

- thrust, third and fourth gears, 1/8" (3.18 mm) thick with 24 internal teeth

2шт.

18

A138655

GEAR

SYNCHRONIZER ASSEMBLY, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

HUB AND SLEEVE ASSEMBLY

1шт.

20

A45568

SPECIAL RING

RING - blocking

2шт.

21

G46078

PLATE

- shifter

3шт.

22

A40766

SPRING

- lock ring

2шт.

25

A148194

GEAR

- sliding, fourth (27 and 44 external teeth) (Replaces A51955)

1шт.

26

G10424

CONE

- bearing, front, 1-9/16" ID (39.69 mm)

1шт.

27

G10425

CUP

- bearing, front, 2-7/8" OD (73.03 mm)

1шт.

28

A136386

COLLAR

- thrust, front bearing, 1-7/16 x 2 x 3/16" (36.51 x 50.8 x 4.76 mm)

1шт.

29

A51527

SHIM,.035" Thk

Front bearing (0.89 mm) .035" Thk

1шт.

29

G10341

SHIM,.005" Thk

Front bearing (0.13 mm) .005" Thk

1шт.

29

G10340

SHIM,.007" Thk

(0.18 mm), Front bearing .007" Thk

1шт.

30

A39184

COLLAR

- pilot, front cover, 2-9/16 x 2-7/8 x 5/16" 65.09 x 73.03 x 7.94 mm)

1шт.

31

G10422

OIL SEAL

- oil, front, 1-9/16 x 2-7/16 x 1/2" (39.69 x 61.91 x 12.7 mm)

1шт.

32

D73776

FLANGE

YOKE - power input (Used tractor serial nos. (Mechanical Shuttle) 8955232 and (Power Shuttle) 8955262 and after)

1шт.

32

A51954

FORK

YOKE - power input (Used before tractor serial nos. (Mechanical Shuttle) 8955232 and (Power Shuttle) 8955262

1шт.
