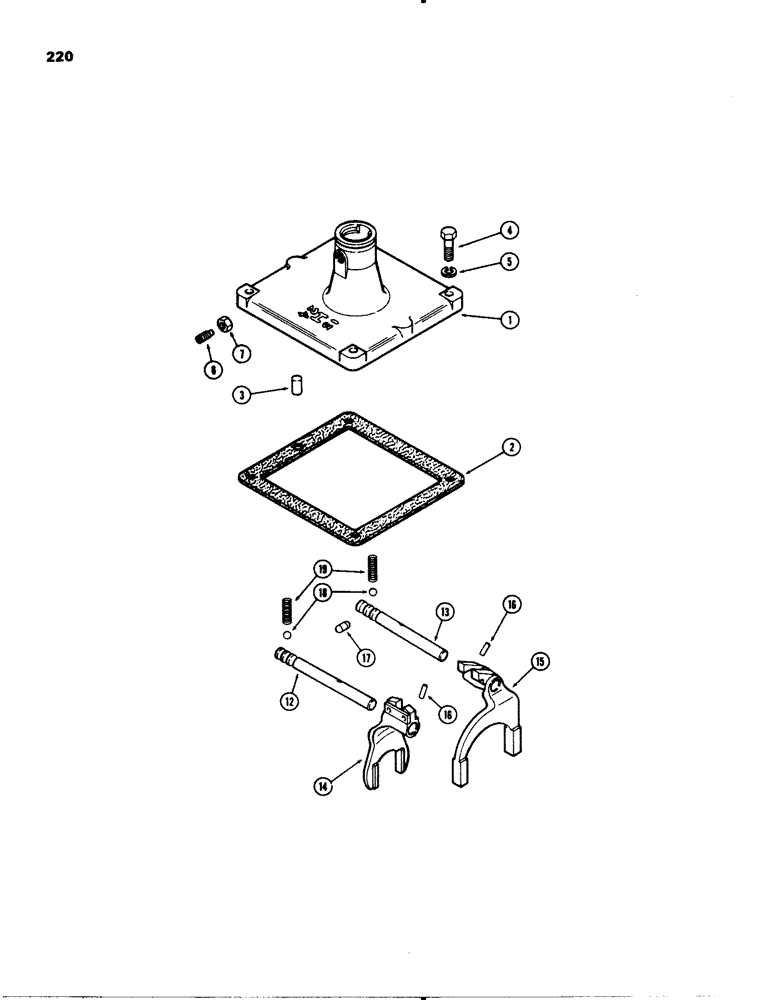

Запчасти Case 580C (220) - SHIFTER MECHANISM, TRANSAXLE (06) - POWER TRAIN

1

A138312

COVER

- shift control

1шт.

2

G10342

GASKET

- cover to transmission housing

1шт.

3

138-245

LOCK PIN,1/2" x 7/8", Slotted

Pin, , Cover locating 1/2" x 7/8", Slotted

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover to transmission housing, 3/8 x 1-1/2" NC hex

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

G15468

SET SCREW,5/16" - 18 x 3/4"

- set, shift lever retaining, 5/16" NC

1шт.

7

25-145

JAM NUT,Jam, 5/16"-18, G5

- lock, set screw, 5/16" NC hex jam

1шт.

12

A138313

RAIL ASSY.

RAIL - shifter, first and second gear

1шт.

Refs. 12 and 13 shift rails originally had three grooves around the rail circumference. Service bulletin NLB SB 006 90 explains that the only groove that now runs the circumference is the neutral groove. The two in gear positions have flats for the detents. This improves the shift action.

1шт.

13

A140578

RAIL ASSY.

RAIL - shifter, third and fourth gear

1шт.

14

A51964

FORK

ASSEMBLY - shift, first and second gear

1шт.

15

A150726

FORK

- shifter, third and fourth gear (Replaces A51963)

1шт.

16

138-2009

PIN,3/16" x 1", Coiled

Fork to rail 3/16" x 1", Coiled

2шт.

17

A29060

PLUG

- interlock, shifter rails

1шт.

18

211-28

BALL,13/32" Dia

- detent, shifter rail, meter (10.32 mm) 13/32" Dia

2шт.

19

G47039

SPRING

- tension, detent ball

2шт.
