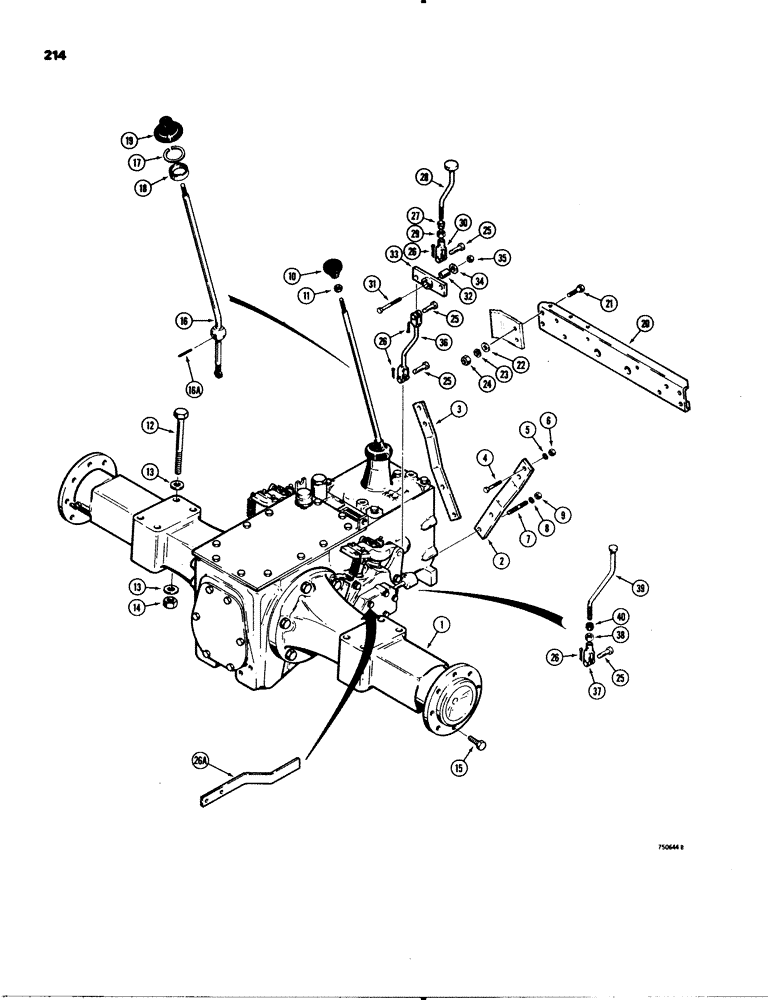

Запчасти Case 580C (214) - TRANSAXLE AND DIFFERENTIAL LOCK (06) - POWER TRAIN

1

A137164

TRANSAXLE - complete, used before tractor sn 8955262 (Dry Clutch) or 8955232 (Power Shuttle), parts list Figures 219-235

1шт.

1

A150159

AXLE

TRANSAXLE - complete, used on tractor sn 8955262 (Dry Clutch) or 8955232 (Power Shuttle) and after, parts list Figures 219-235

1шт.

2

D69605

SUPPORT

- RH

1шт.

3

D69606

SUPPORT

- LH

1шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

7

D69763

STUD

- 1/2" - 20 NF

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

25-118

NUT,1/2"-20, G5

- hex, 1/2" - 20 NF

4шт.

10

D69105

KNOB

- lever

1шт.

11

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

12

13-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex, 3/4" - 11 NC x 8"

8шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened

16шт.

14

25-1012

NUT,3/4"-10, G5

8шт.

15

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - lug, rear

16шт.

16

A148573

LEVER

- shifting

1шт.

16a

135-329

PIN

- groove, 1/8" x 1-1/4", shift lever

1шт.

17

A26836

RING, SNAP

RING - retaining

1шт.

18

A7923

SEAT

- shifting lever

1шт.

19

A57876

COVER

- rubber, gear shift lever

1шт.

20

D66068

BRACKET

- crossmember

1шт.

21

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

22

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

23

92-8

LOCK WASHER,1/2"

4шт.

24

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

25

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1-3шт.

26

132-25

COTTER PIN,3/32" x 5/8"

PIN - cotter, 3/32" x 1-1/2"

1-3шт.

26a

D74240

PLATE

BAR - lever stop, if used

1шт.

27

353-459

BUSHING

- nylon

1шт.

Two Piece Differential Lock Lever

1шт.

28

D65375

ROD

- differential lock

1шт.

Two Piece Differential Lock Lever

1шт.

29

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 24 NF

1шт.

Two Piece Differential Lock Lever

1шт.

30

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

1шт.

Two Piece Differential Lock Lever

1шт.

31

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

Two Piece Differential Lock Lever

1шт.

32

D95744

SPACER

SLEEVE - bushing

1шт.

Two Piece Differential Lock Lever

1шт.

33

D65371

LEVER

- differential lock

1шт.

Two Piece Differential Lock Lever

1шт.

34

195-2034

WASHER,7/16" x 1 1/4" x .134"

- flat, special

1шт.

Two Piece Differential Lock Lever

1шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

Two Piece Differential Lock Lever

1шт.

36

D65373

ROD

- differential lock

1шт.

Two Piece Differential Lock Lever

1шт.

37

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - clevis

1шт.

One Piece Differential Lock Lever

1шт.

38

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 24 NF

1шт.

One Piece Differential Lock Lever

1шт.

39

D76355

ROD

- differential lock, dry clutch models

1шт.

One Piece Differential Lock Lever

1шт.

39

D74623

ROD

- differential lock, power shuttle models

1шт.

One Piece Differential Lock Lever

1шт.

40

353-462

BUSHING,12.7mm ID x 15.88mm OD x mm L

- snap

1шт.

One Piece Differential Lock Lever

1шт.
