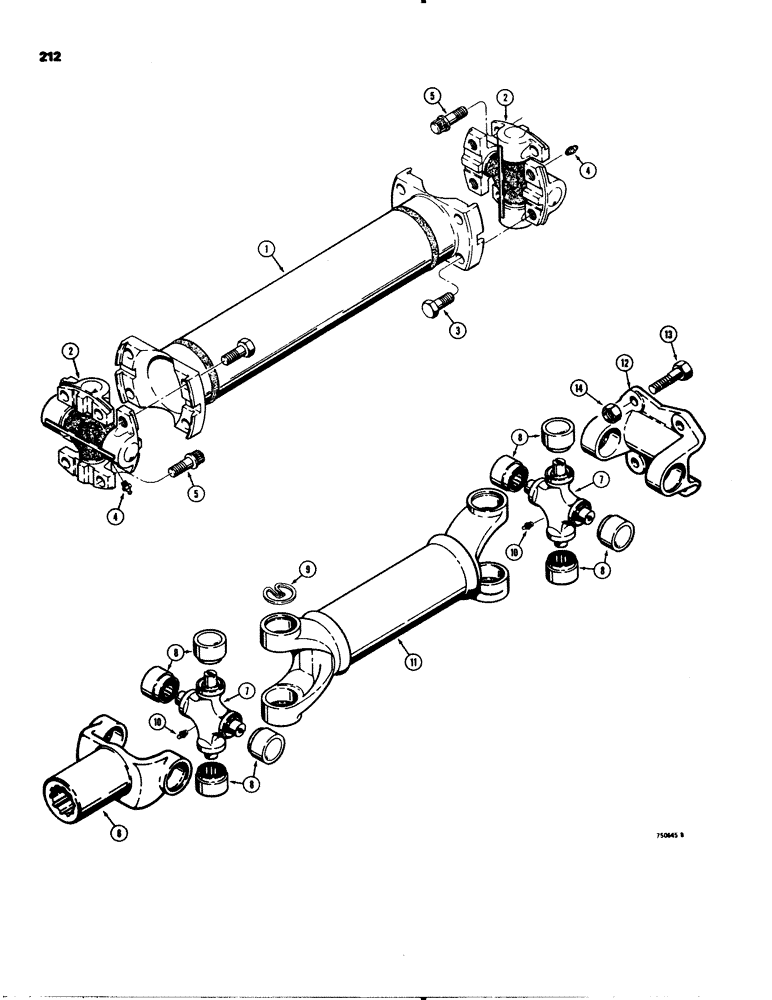

Запчасти Case 580C (212) - DRIVE SHAFTS, B4 TRAC SN 8955262 (DRY CLUTCH) OR 8955232 PWR SHUTTLE (06) - POWER TRAIN

D64923

SHAFT

ASSEMBLY - dry clutch models, Includes: Ref. 1 - 5, Serial Range: -8955262

1шт.

D64924

SHAFT

ASSEMBLY - power shuttle models, Includes: Ref. 1 - 5, Serial Range: -8955232

1шт.

1

D71308

TUBE

dry clutch models

1шт.

1

D71307

TUBE

power shuttle models

1шт.

D73649

UNIVERSAL JOINT

drive shaft, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT - universal

1шт.

3

A14723

SCREW,Hex, 5/16" - 24 x 3/4", 8 Gr

hex head, 5/16" - 24 NF x 3/4"

4шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

5

L30495

SCREW

ferry head, 5/16" - 24 NF x 3/4"

4шт.

D73781

ASSEMBLY - dry clutch models, Includes: Ref. 6 - 12, trac s/n 8955262 (dry clutch) or 8955232 (prw shuttle), Start Serial: 8955262

1шт.

D73777

DRIVE SHAFT

ASSEMBLY - models, Includes: Ref. 6 - 12, trac s/n 8955262 (dry clutch) or 8955232 (prw shuttle), Start Serial: 8955232

1шт.

6

D75847

YOKE

end, trac s/n 8955262 (dry clutch) or 8955232 (prw shuttle)

1шт.

D70629

U-JOINT SPIDER

KIT - universal joint, Includes: Ref. 7 - 10, trac s/n 8955262 (dry clutch) or 8955232 (prw shuttle)

2шт.

7

NSS

NOT SOLD SEPARAT

JOINT - universal, trac s/n 8955262 (dry clutch) or 8955232 (prw shuttle)

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING - universal joint, trac s/n 8955262 (dry clutch) or 8955232 (prw shuttle)

4шт.

9

11256

SNAP RING

retaining, trac s/n 8955262 (dry clutch) or 8955232 (prw shuttle)

4шт.

10

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, trac s/n 8955262 (dry clutch) or 8955232 (prw shuttle)

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT - drive, trac s/n 8955262 (dry clutch) or 8955232 (prw shuttle)

1шт.

12

W13668

YOKE

flanged, trac s/n 8955262 (dry clutch) or 8955232 (prw shuttle)

1шт.

13

114-263

BOLT

- hex, 3/8" - 24 NF x 1-1/8", grade 8, if used, trac s/n 8955262 (dry clutch) or 8955232 (prw shuttle)

4шт.

13

114-266

BOLT,Hex, 3/8" - 24 x 1", Gr 8, Full Thd

If used, tractor S/N 8955262 (dry clutch) or 8955232 (prw shuttle) Hex, 3/8"-24 x 1", G8, Full Thd

4шт.

14

131-181

LOCK NUT,3/8"-24, GC

hex, self lock, 3/8" - 24 NF, used with 1-1/8" bolts, trac s/n 8955262 (dry clutch) or 8955232 (prw shuttle)

4шт.

14

80855

NUT,Hex, 3/8" - 24

hex, self lock, 3/8" - 24 NF, used with 1" bolts, trac s/n 8955262 (dry clutch) or 8955232 (prw shuttle)

4шт.
