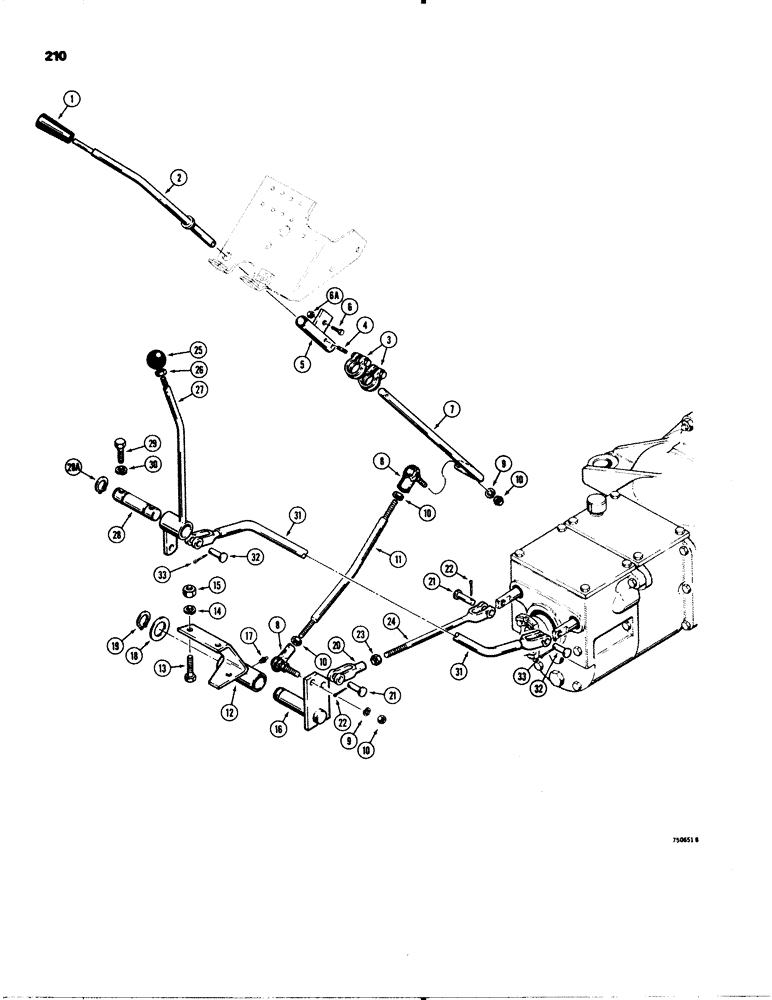

Запчасти Case 580C (210) - SHUTTLE CONTROL, MECHANICAL SHUTTLE MODELS ONLY (06) - POWER TRAIN

1

A37247

KNOB

- shuttle control lever, column

1шт.

2

D76431

LEVER

- shuttle control, column

1шт.

3

D71880

CLAMP,22.23mm

- shuttle rods

2шт.

4

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

2шт.

5

D73824

SLEEVE

- shuttle shift lever

1шт.

6

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

6a

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC x 1"

1шт.

7

D71818

SHAFT

- shuttle control, column

1шт.

8

D69180

BALL JOINT

JOINT - ball, 3/8"

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" x 24 NC

4шт.

11

D74878

ROD

- shuttle control, column

1шт.

12

D67497

BRACKET

- shuttle control, column

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

14

92-6

LOCK WASHER,3/8"

3шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

16

D67490

SHAFT

BELLCRANK - shuttle control, column

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

18

F41695

WASHER

- plain

1шт.

19

D95098

HOSE

RING - retaining

1шт.

20

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod

1шт.

21

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

22

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

23

25-116

NUT,Hex, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

1шт.

24

CASD35814

CLEVIS

ROD - shuttle control, column

1шт.

25

D69106

KNOB

- shuttle control, floor

1шт.

26

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

27

D84097

LEVER

- two speed, floor

1шт.

27a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, two speed lever, if used, not shown

1шт.

28

D67162

SHAFT

- shuttle lever mounting

1шт.

28a

D95098

HOSE

RING - retaining

2шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

D76873

ROD

- shuttle control, floor

1шт.

32

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

33

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.
