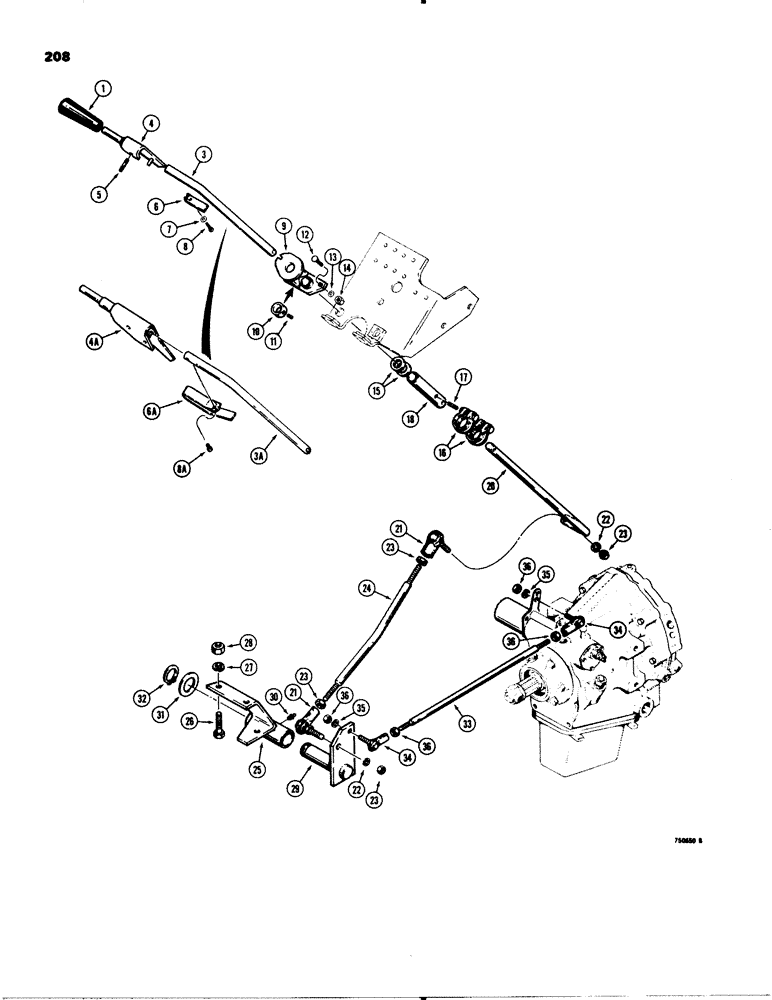

Запчасти Case 580C (208) - SHUTTLE CONTROL, POWER SHUTTLE MODELS ONLY (06) - POWER TRAIN

1

A37247

KNOB

- power shuttle control

1шт.

3

D71830

LEVER

- power shuttle, used before tractor, Serial Range: -8959010

1шт.

3a

D76132

LEVER

- power shuttle, used on tractor, Start Serial: 8959010

1шт.

4

D71957

LEVER

- with pin, detent, used before tractor, Serial Range: -8959010

1шт.

4a

D76525

LEVER

- with pin, detent, used on tractor, Start Serial: 8959010

1шт.

5

138-2053

PIN,1/4" x 1 1/4", Coiled

1шт.

6

A38296

SPRING

- detent, used before tractor, Serial Range: -8959010

1шт.

6a

D76444

SPRING

- detent, used on tractor, Start Serial: 8959010

1шт.

7

195-8

WASHER

- flat, no. 8, used with A38296 spring

1шт.

8

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

- no. 8 x 1/4", used with A38296 spring

1шт.

8a

163-28

SCREW,Hex Wshr Hd, #8 - 32 x 1/4", Gr 5

- washer head, no. 8 - 32 NC x 1/4", used with D76444 spring

1шт.

9

D72891

BRACKET

- detent

1шт.

10

D43620

COLLAR

- bearing

1шт.

11

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

12

12-512

BOLT

- carriage, 5/16" - 18 NC x 3/4", plated

3шт.

13

195-21

WASHER,5/16"

- flat, 5/16"

3шт.

14

131-651

NUT,5/16"-18, GB

NUT - hex, lock, 5/16"

3шт.

15

D70730

WASHER

- heat treated

1шт.

16

D71880

CLAMP,22.23mm

- shuttle control rod

2шт.

17

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

2шт.

18

D71813

CLAMP

SLEEVE - shuttle shift lever

1шт.

20

D71822

SHAFT

- shuttle control

1шт.

21

D69180

BALL JOINT

JOINT - ball

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NC

4шт.

24

D74878

ROD

- shifting

1шт.

25

D67497

BRACKET

- shuttle shifting

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

27

92-6

LOCK WASHER,3/8"

3шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

29

D67814

SHAFT

BELLCRANK - shuttle shifting

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

31

F41695

WASHER

- plain

1шт.

32

D95098

HOSE

SNAP RING - retaining

1шт.

33

D67811

ROD

- shuttle control

1шт.

34

D63154

JOINT,1/4" - 28 x 1-1/3"

- ball, 1/4"

2шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

36

25-114

NUT,1/4"-28, G5

- hex, lock, 1/4" - 28 NF

4шт.
