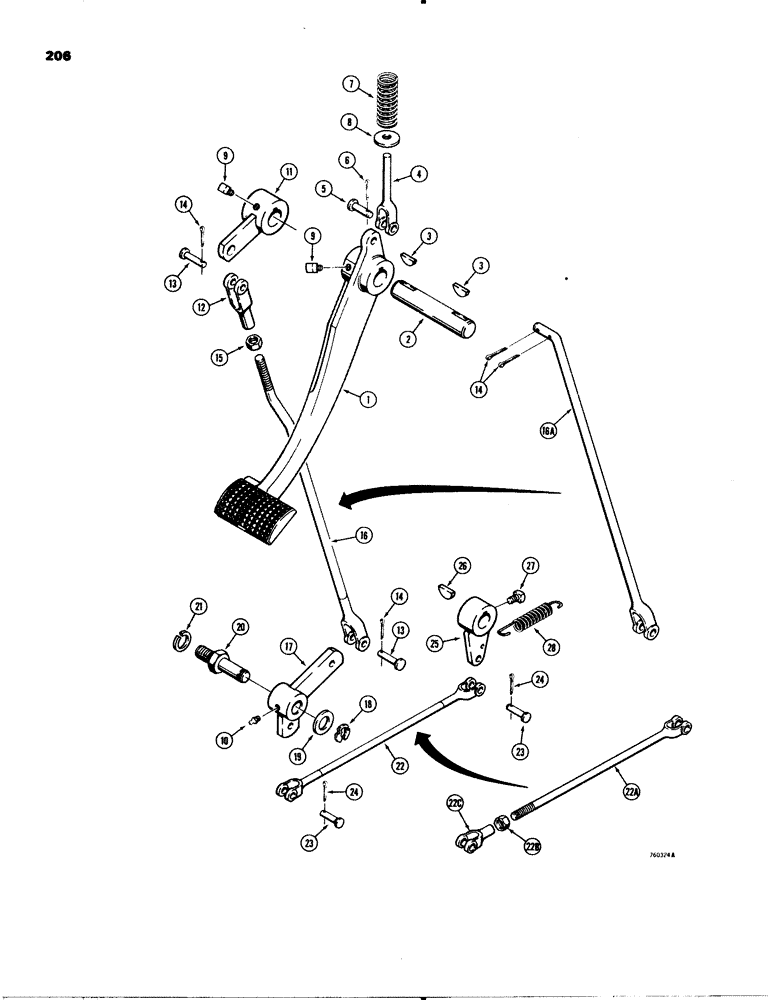

Запчасти Case 580C (206) - CLUTCH PEDAL AND LINKAGE (06) - POWER TRAIN

1

D67987

PEDAL

- clutch

1шт.

2

D67039

SHAFT

- clutch pedal

1шт.

3

126-33

WOODRUFF KEY,#D, 5/16" x 1 1/4"

#D, 5/16" x 1-1/4"

2шт.

4

D66142

YOKE

- clutch pedal

1шт.

5

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - clevis, 7/16"

1шт.

6

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

7

D72404

SPRING

- clutch pedal return

1шт.

8

95-7

WASHER,7/16"

- flat, 7/16"

1шт.

9

850612

TINE

SCREW - set, square head, 3/8" - 16 NC x 3/4"

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

11

D76166

LEVER

- clutch

1шт.

12

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - 1/2" dia

1шт.

13

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke, 1/2" dia

2шт.

14

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2-3шт.

15

25-118

NUT,1/2"-20, G5

- hex, 1/2" - 20 NF

1шт.

16

D70394

ROD - clutch, upper, adjustable, if used

1шт.

16a

D74215

ROD - clutch, upper, non-adjustable, if used

1шт.

17

D70468

BELLCRANK - clutch

1шт.

18

D95097

RING, SNAP

RING - retaining

1шт.

19

195-45

WASHER,3/4"

1шт.

20

D67041

STUD

- special

1шт.

21

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

22

D70450

ROD

- clutch, lower, non-adjustable, if used, order 22A - 22C

1шт.

22a

D74216

ROD

- clutch, lower, adjustable, if used

1шт.

22b

129-123

NUT,3/8"-24, G5

1шт.

22c

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - 3/8" dia

1шт.

23

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

24

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

25

D70454

LEVER - clutch

1шт.

26

126-126

KEY - Woodruff, 3/16" x 1-1/8"

1шт.

27

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8" - 16 NC x 3/4'

1шт.

28

A36199

SPRING

- clutch return

1шт.
