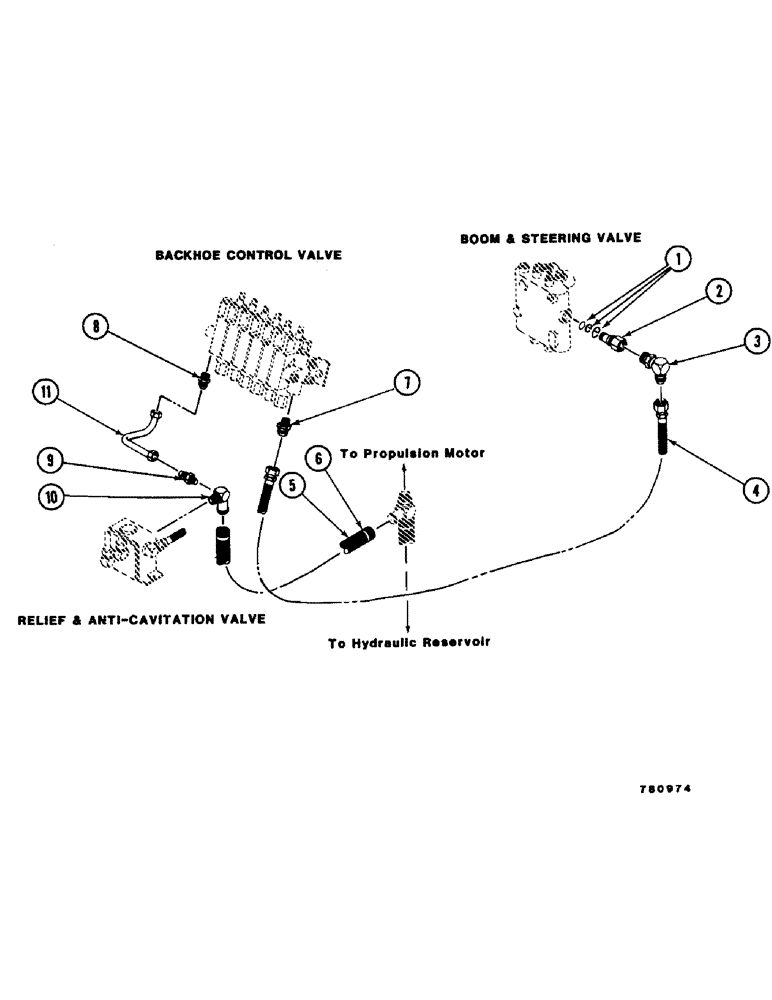

Запчасти Case SD-70 (22) - SD-70 SUPPLY & RETURN HYDRAULIC LINES

D61608

SLEEVE

ADAPTER - pressure beyond

1шт.

1

H587345

SEAL ASSY.

SEAL KIT - adapter

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

3

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degrees (7/8 ORB x 3/4 JIC M)

1шт.

4

H323857

HOSE ASSY.

HOSE - 3/8 x 94 (3/4 JIC Fe Sw ends)

1шт.

5

H317347

HOSE

- 3/4 ID x 46

1шт.

6

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

7

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - (9/16 ORB x 3/4 JIC M)

1шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR (9/16 ORB x 9/16 JIC M)

1шт.

9

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR (1/4 MP x 9/16 JIC M)

1шт.

10

H339507

ELBOW UNION

ELBOW - special

1шт.

11

H635466

TUBE ASSY.,0.375" OD

TUBE (3/8 OD)

1шт.
