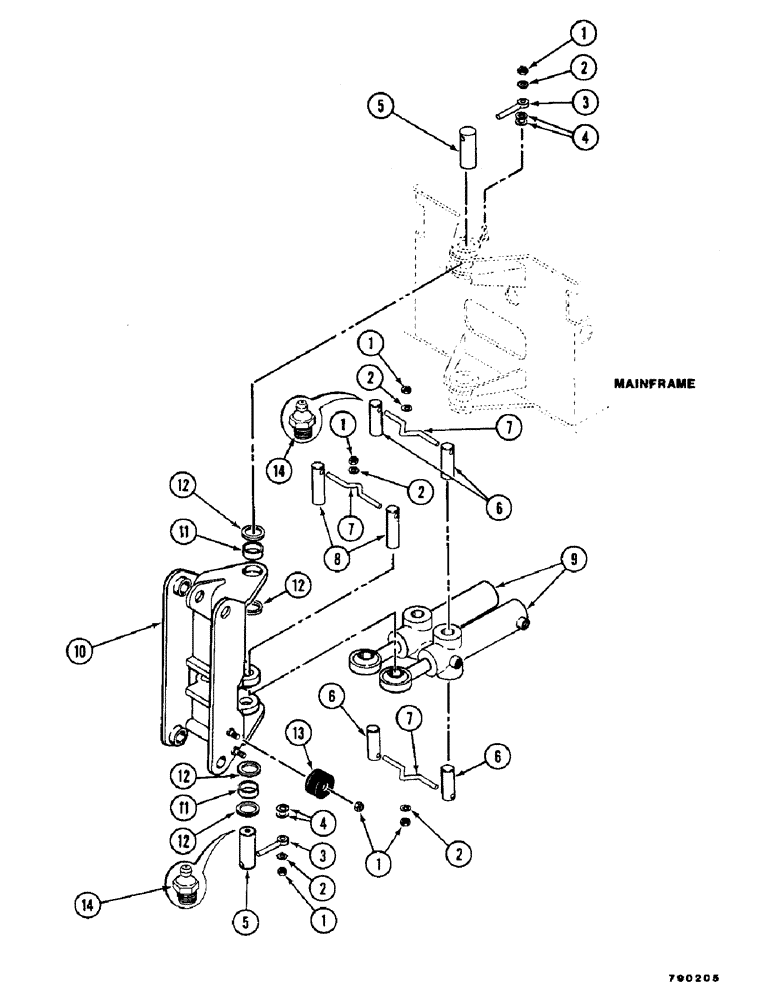

Запчасти Case SD-70 (10) - D-70, SD-70 KINGPOST INSTALLATION

1

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex C/L (3/8)

6шт.

2

195-104

WASHER,3/8"

- flat (3/8)

6шт.

3

H313981

PIN

RETAINER - pin

2шт.

4

195-533

WASHER,1/2", SAE

- Flat (1/2)

4шт.

5

H332155

AXLE PIN

PIN - King

2шт.

6

H332213

AXLE PIN

PIN

4шт.

7

H339101

AXLE PIN

RETAINER - pin

3шт.

8

H332205

AXLE PIN

PIN

2шт.

9

H622001

CYLINDER BLOCK

SWING CYLINDER ASSEMBLY (See Figure 44)

2шт.

10

H622050

BOOM

KINGPOST ASSEMBLY

1шт.

11

H338947

BUSHING

2шт.

12

H332106

WASHER

- wear

4шт.

13

H343574

BUMPER

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease

6шт.
