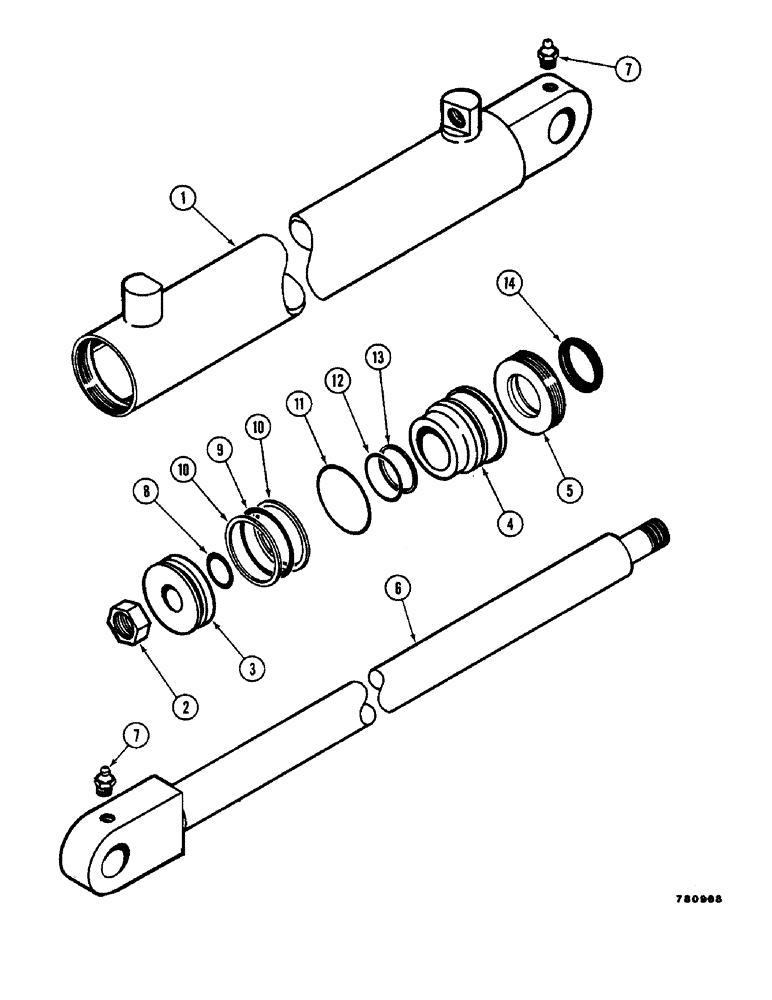

Запчасти Case SD-70 (40) - BOOM CYLINDER ASSEMBLY

H622019

CYLINDER BLOCK

BOOM CYLINDER ASSEMBLY

1шт.

1

H628958

CYLINDER

BARREL

1шт.

2

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex (3/4-16 - lock)

1шт.

3

H343129

PISTON ASSY.

PISTON

1шт.

4

H343145

BEARING

1шт.

5

H343137

RETAINER

- bearing

1шт.

6

H628941

ROD

- piston

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease

2шт.

H628933

SEAL ASSY.

KIT - seal repair

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rod static

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - bearing static

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.
