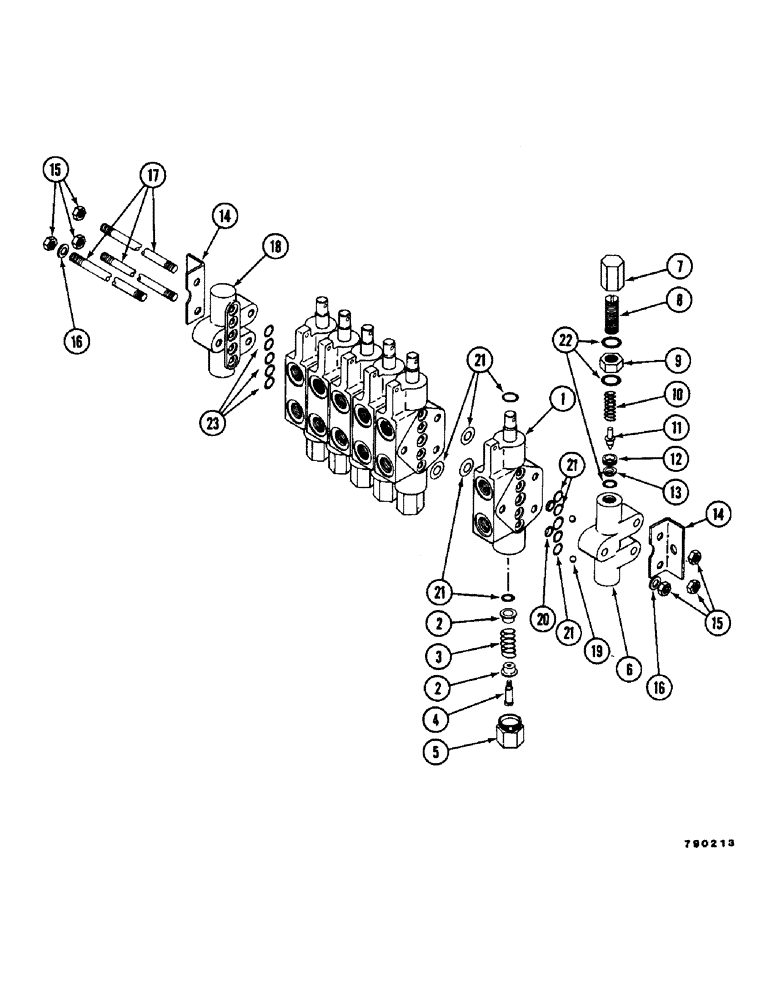

Запчасти Case SD-70 (36) - CONTROL VALVE ASSEMBLY

H625244

LOCK VALVE

CONTROL VALVE ASSEMBLY

1шт.

H629725

VALVE POPPET

VALVE SECTION ASSEMBLY

6шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL ASSEMBLY

1шт.

2

H344663

GUIDE - spring

2шт.

3

H344671

SPRING

1шт.

4

H344689

SHAFT

- spring

1шт.

5

H344697

CAP

- spring

1шт.

H384727

INLET SECTION ASSEMBLY

1шт.

6

NSS

NOT SOLD SEPARAT

BODY

1шт.

7

H344705

NUT - cap

1шт.

8

H344713

SCREW - adjusting

1шт.

9

H736819

NUT - hex (9/16-18 jam)

1шт.

10

H344721

SPRING

1шт.

11

H344739

SPOOL

POPPET

1шт.

12

H344747

RETAINER

- seat

1шт.

13

H344754

SEAT

1шт.

14

H344762

BRACKET

2шт.

15

129-578

NUT,5/16"-18, G5

- hex (5/16-18)

6шт.

16

195-521

WASHER,5/16", SAE

(5/16)

6шт.

17

H344770

TIE-ROD

ROD - tie

3шт.

18

H344788

TANK

SECTION - tank

1шт.

19

H384735

BALL

- check

2шт.

20

H384743

RETAINER

BALL

2шт.

21

H629766

SEAL ASSY.

SEAL KIT - single section (Order multiples as needed)

1шт.

22

H629741

SEAL ASSY.

SEAL KIT - inlet section

1шт.

23

H629758

SEAL ASSY.

SEAL KIT - tank section

1шт.
