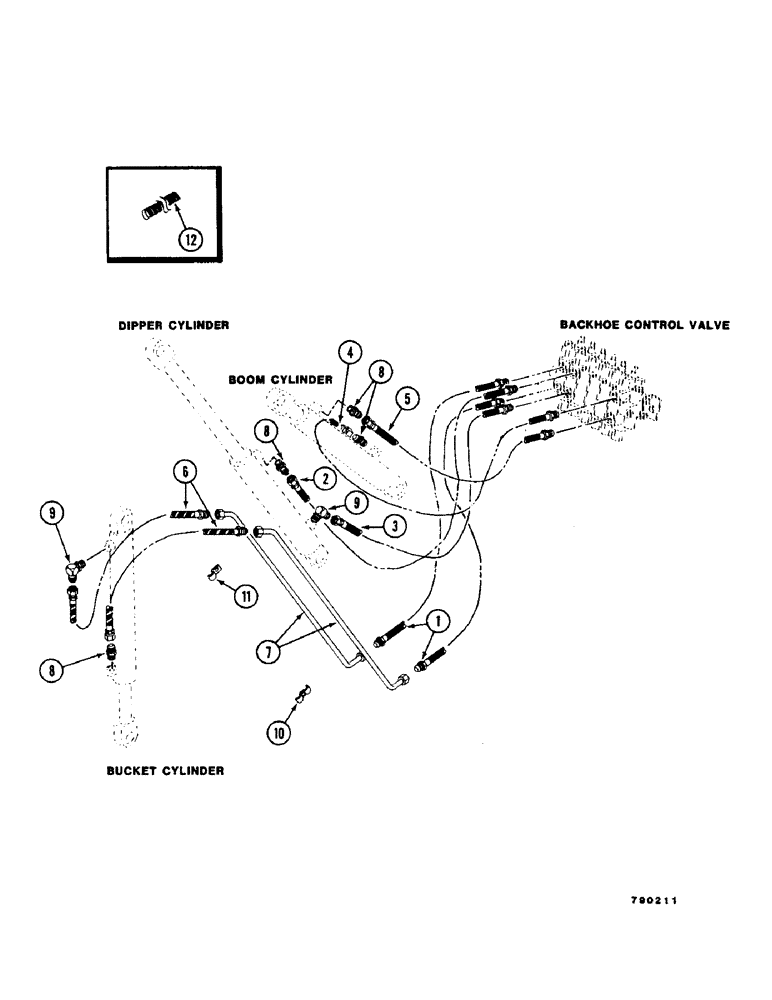

Запчасти Case SD-70 (34) - SD-70 BOOM, DIPPER, BUCKET HYDRAULIC LINES

1

H384354

HOSE ASSY.

HOSE - 3/8 x 45 (9/16 ORB x 9/16 JIC M)

2шт.

2

H384370

HOSE ASSY.

HOSE - 3/8 x 73 (9/16 ORB x 9/16 JIC Fe Sw)

1шт.

3

H384362

HOSE ASSY.

HOSE - 3/8 x 59 (9/16 ORB x 9/16 JIC Fe Sw)

1шт.

4

H384438

HOSE ASSY.

HOSE - 3/8 x 36 (9/16 ORB x 9/16 JIC Fe Sw)

1шт.

5

H384420

HOSE ASSY.

HOSE - 3/8 x 48 (9/16 ORB x 9/16 JIC Fe Sw)

1шт.

6

H384388

HOSE ASSY.

HOSE - 3/8 x 48 - shielded (9/16 ORB x 9/16 JIC M)

2шт.

7

H635474

TUBE,0.375" OD

(3/8 OD)

2шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR (9/16 ORB x 9/16 JIC M)

4шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees ORB x 9/16 JIC M

2шт.

10

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

2шт.

11

H349720

CLAMP

2шт.

12

H362434

HOSE,90.00"

Wrapping, Black 90.00"

1шт.
