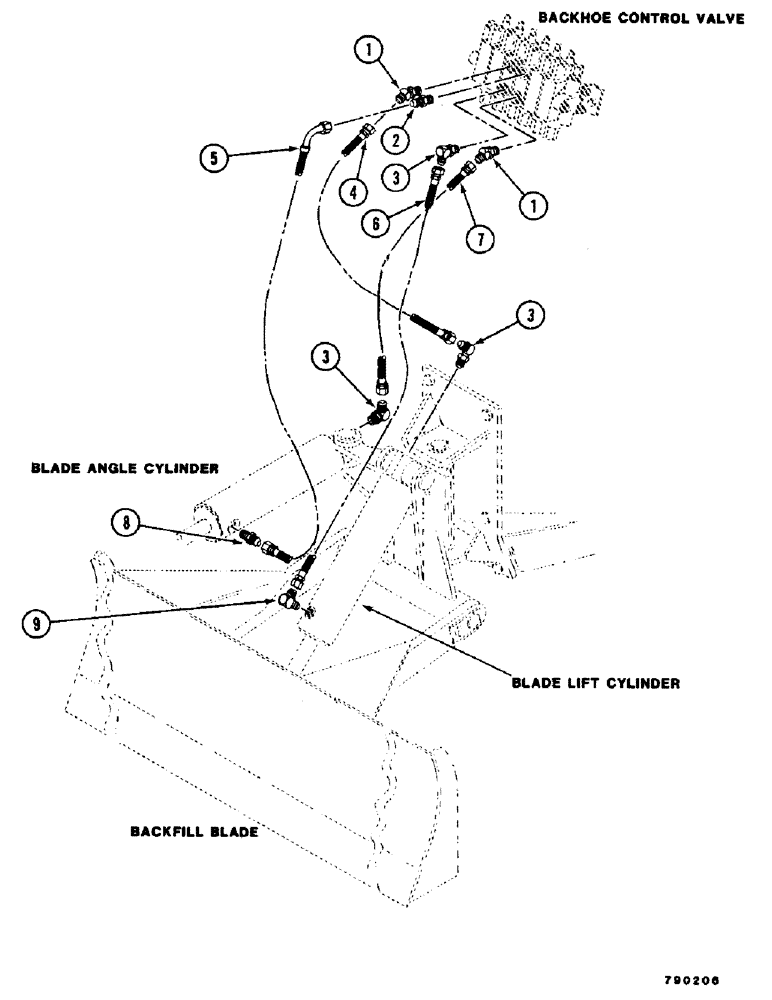

Запчасти Case SD-70 (26) - SD-70 BACKFILL BLADE HYDRAULIC LINES

1

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degrees (9/16 ORB x 9/16 JIC M)

2шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR (9/16 ORB x 9/16 JIC M)

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (9/16 ORB x 9/16 JIC M)

3шт.

4

H362418

HOSE

- 1/4 x 48 (9/16 JIC Fe Sw ends)

1шт.

5

H231639

HOSE ASSY.

HOSE AND TUBE - 1/4 x 47

1шт.

6

H172965

HYDRAULIC HOSE,6.35 mm ID x 939.60 mm, SAE 100R1

6.35 mm ID x 939.60 mm, SAE 100R1

1шт.

7

H243790

HYDRAULIC HOSE,6.35 mm ID x 1473.20 mm, SAE 100R1

6.35 mm ID x 1473.20 mm, SAE 100R1

1шт.

8

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF

1шт.

9

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degrees (9/16 JIC M x 3/8 MP)

1шт.
