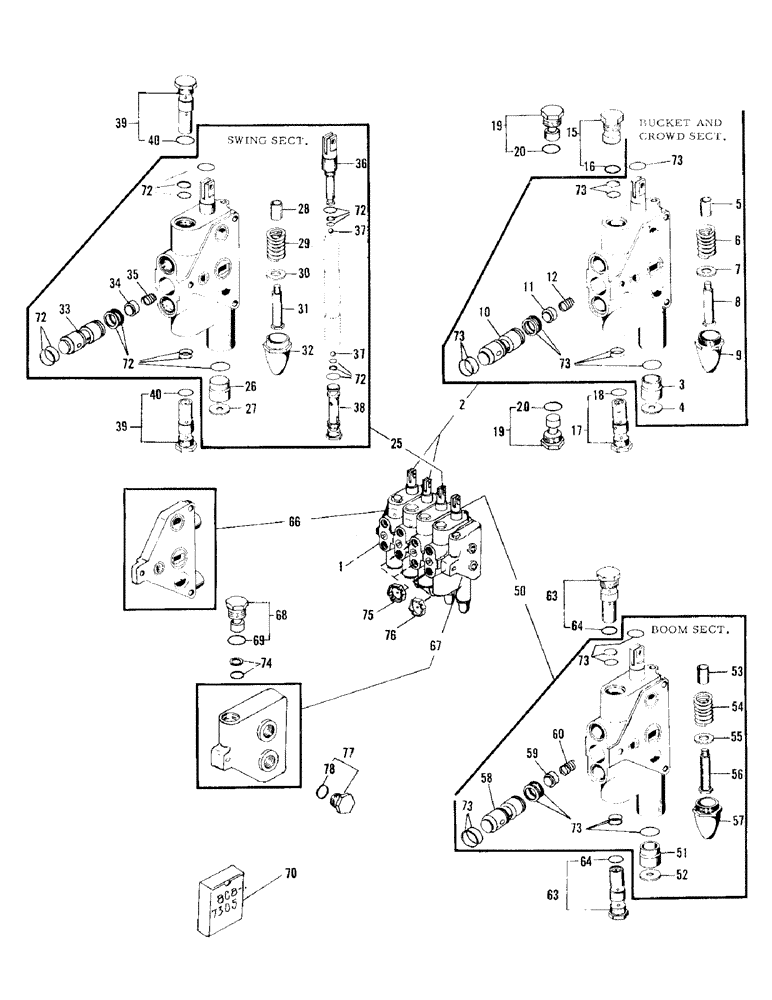

Запчасти Case D175 (10) - BACKHOE CONTROL VALVE ASSEMBLY

1

8F9-1550W

BACKHOE CONTROL VALVE ASSEMBLY

1шт.

2

8C8-7295

BUCKET AND CROWD SECTION ASSEMBLY

2шт.

3

8C8-5704

BUSHING, body

1шт.

4

1048-3

WASHER, bushing

1шт.

5

8C8-5890

SLEEVE, spool

1шт.

6

8C8-5987

SPRING, spool centering

1шт.

7

1048-1

WASHER, lower spring

1шт.

8

8C8-5984

SCREW, spool spring

1шт.

9

8C8-5983

CAP ASSEMBLY

1шт.

10

8C8-7299

SEAT, lift check

1шт.

11

8C8-7300

POPPET, lift check

1шт.

12

8C8-7301

SPRING, lift check

1шт.

15

8C8-5982

CHECK VALVE ASSEMBLY (Used top of crowd section only)

1шт.

16

1015-18

'O' RING, check valve

1шт.

17

8C8-7399

RELIEF VALVE (3000 PSI - bottom of crowd section only)

1шт.

18

1015-18

'O' RING, relief valve

1шт.

19

8C8-5714

PLUG ASSEMBLY (Top and bottom of bucket section only)

2шт.

20

1015-18

'O' RING, plug

1шт.

25

8C8-7296

SWING SECTION ASSEMBLY

1шт.

26

8C8-5704

BUSHING, body

1шт.

27

1048-3

WASHER, bushing

1шт.

28

8C8-5890

SLEEVE, spool

1шт.

29

8C8-5987

SPRING, spool centering

1шт.

30

1048-1

WASHER, lower spring

1шт.

31

8C8-5984

SCREW, spool spring

1шт.

32

8C8-5983

CAP ASSEMBLY

1шт.

33

8C8-7299

SEAT, lift check

1шт.

34

8C8-7300

POPPET, lift check

1шт.

35

8C8-7301

SPRING, lift check

1шт.

36

8C8-5986

CLEVIS PLUG

1шт.

37

1006-112

NYLON BALL

2шт.

38

8C8-5985

PLUG, spool

1шт.

39

8F8-8337

RELIEF VALVE ASSEMBLY, swing section

2шт.

40

1015-18

'O' RING, relief valve

1шт.

50

8C8-7297

BOOM SECTION ASSEMBLY

1шт.

51

8C8-5704

BUSHING, body

1шт.

52

1048-3

WASHER, bushing

1шт.

53

8C8-5890

SLEEVE, spool

1шт.

54

8C8-5987

SPRING, spool centering

1шт.

55

1048-1

WASHER, lower spring

1шт.

56

8C8-5984

SCREW, spool spring

1шт.

57

8C8-5983

CAP ASSEMBLY

1шт.

58

8C8-7299

SEAT, lift check

1шт.

59

8C8-7300

POPPET, lift check

1шт.

60

8C8-7301

SPRING, lift check

1шт.

63

8C8-7304

RELIEF VALVE (2500 PSI boom section)

2шт.

64

1015-18

'O' RING, relief valve

1шт.

66

8C8-7297

END PLATE

1шт.

67

8C8-7298

PORT PLATE

1шт.

68

8C8-5714

PLUG ASSEMBLY

1шт.

69

1015-18

'O' RING, plug

1шт.

70

8C8-7305

COMPLETE VALVE SEAL REPAIR KIT

1шт.

71

8C8-328

BETWEEN SECTION SEAL KIT

1шт.

72

8C8-7306

SWING SECTION REPAIR KIT (Also includes 2 ea. item 37 and 2 ea. item 40)

1шт.

73

8C8-7307

BUCKET, crowd and boom section repair kit (Also includes 2 ea. item 64 in each kit)

3шт.

74

8C8-267

PORT PLATE SEAL KIT (Also includes 1 ea. item 69)

1шт.

75

1097-464

ORIFICE PLATE, swing section

2шт.

76

1097-493

ORIFICE PLATE, lower port, boom section

1шт.

77

8C8-6053

PLUG ASSEMBLY

1шт.

78

1103-12

'O' RING

1шт.
