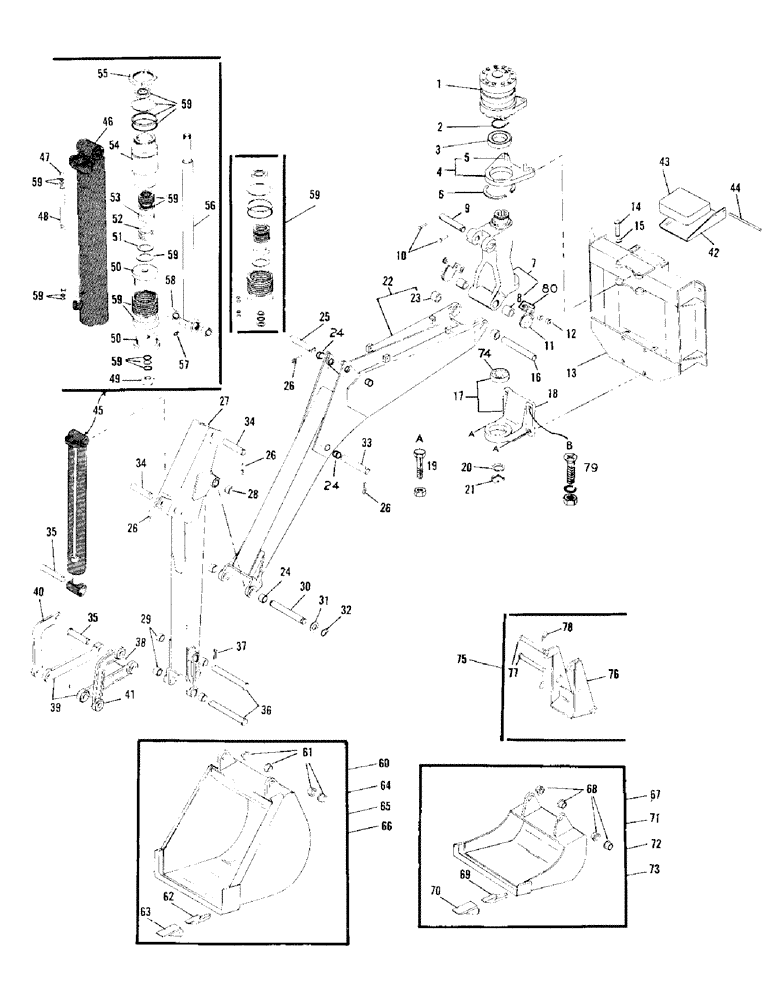

Запчасти Case D175 (06) - MAIN FRAME, BOOM, DIPPER STICK, BUCKET CYLINDER

1

8F9-1549W

ROTARY CYLINDER ASSEMBLY

1шт.

2

1078-61

SNAP RING, mast plate anchor

1шт.

3

1503-95

BEARING, upper mast

1шт.

4

8C8-318

PLATE ASSEMBLY - upper bearing

1шт.

5

8C8-7102

PIN, torque

2шт.

6

8C8-7104

RETAINER, upper bearing

2шт.

7

8F9-1545W

MAST ASSEMBLY

1шт.

8

8C8-5420

BUSHING, mast

2шт.

9

8C8-3594

PIN, boom, Serial Range: cyl.-mast

1шт.

10

8C8-3599

PIN, boom cyl. pin retainer

2шт.

11

8C8-75

RUBBER BUMPER

2шт.

12

8C8-3598

BUSHING, bumper mtg.

4шт.

13

8C8-315

MAIN FRAME ASSEMBLY

1шт.

14

8C8-3575

PIN, plate mtg.

2шт.

15

1078-19

SNAP RING

2шт.

16

8F9-8023

PIN, Serial Range: boom-mast

1шт.

17

8F8-1675W

BEARING, lower mast and casting assy. (Before ser. #551)

1шт.

18

8F8-8473

CASTING, lower mast bearing (After ser. #551)

1шт.

19

8F18-231

SPECIAL BOLT

2шт.

20

1520-11

LOCKWASHER, mast nut

1шт.

21

1519-11

NUT, lower mast

1шт.

22

8F9-1395W

BACKHOE BOOM ASSEMBLY

1шт.

23

8F9-7702

BUSHING, Serial Range: boom-mast

2шт.

24

8C8-3586

BUSHING

6шт.

25

8F18-7687

PIN, dipper stick, Serial Range: cyl.-boom

1шт.

26

8C8-3650

PIN, retainer

4шт.

27

8F9-1400W

DIPPER STICK ASSEMBLY

1шт.

28

8C8-5420

BUSHING DIPPER STICK PIVOT

2шт.

29

8C8-3586

BUSHING, bucket and link pivot

4шт.

30

8C8-3649

PIN, dipper stick pivot

1шт.

31

8C8-6102

WASHER (1-1/2" I.D.)

2шт.

32

1078-24

SNAP RING

2шт.

33

8F18-7687

PIN, boom, Serial Range: cyl.-boom

1шт.

34

8C8-3595

PIN, dipper stick cyl. to dipper stick and bucket cyl. to dipper stick

2шт.

35

8C8-3653

PIN, bucket, Serial Range: cyl.-links

2шт.

36

8C8-3652

PIN, dipper stick to links and bucket

2шт.

37

1624-1624

COTTER PIN (1/2 x 2-1/2")

4шт.

38

8C8-5319

SPACER, links

1шт.

39

8C8-3596

DRAG LINK

2шт.

40

8C8-3804R

PIVOT LINK, right

1шт.

41

8C8-3804L

PIVOT LINK, left

1шт.

42

8C8-3771

CUSHION SEAT

1шт.

43

8C8-4365

MOUNTING SEAT

1шт.

44

8C8-4366

PIN, seat mounting

1шт.

45

8C8-63

BUCKET CYLINDER ASSEMBLY

1шт.

46

8C8-6047

BARREL ASSEMBLY

1шт.

47

8C8-5767

SPRING, tube retaining

1шт.

48

8C8-6049

TUBE

1шт.

49

8C8-5792

NUT (1-1/4"-12, lock)

1шт.

50

8C8-324

PISTON (Sold as assembly only)

1шт.

51

8F9-8074

WASHER, spring, retainer

1шт.

52

8C8-5775

SPRING, bearing

1шт.

53

8C8-5776

PACKING RETAINER

1шт.

54

8C8-5774

BEARING

1шт.

55

1025-30

BEARING NUT

1шт.

56

8C8-6048

PISTON ROD ASSEMBLY

1шт.

57

1065-21

GREASE FITTING

2шт.

58

8C8-6001

BUSHING PISTON ROD

2шт.

59

8C8-274

SEAL REPAIR KIT (Individual parts not sold separately)

1шт.

60

8C8-A23

BUCKET - 16" (Order under whole goods)

1шт.

61

8C8-3664

FLANGE BUSHING, bucket

4шт.

62

8F18-8249

SHANK TOOTH

1шт.

6

8F18-8248

POINT, tooth

4шт.

64

8C8-A24

BUCKET - 20" (Order under whole goods) (Contains 4 ea. item 61 and 4 ea. items 62 & 63)

1шт.

65

8C8-A5

BUCKET - 24" (Order under whole goods) (Contains 4 ea. item 61 and 5 ea. items 62 & 63)

1шт.

66

8C8-A25

BUCKET - 36" (Order under whole goods) (Contains 4 ea. item 61 and 7 ea. items 62 & 63)

1шт.

67

8C8-A26

BUCKET, bell hole - 18" (Order under whole goods)

1шт.

68

8C8-3664

FLANGE BUSHING, bucket

4шт.

69

8F18-8249

SHANK, tooth

4шт.

70

8F18-8248

POINT, tooth

4шт.

71

8C8-A27

BUCKET - bell hole - 22" (Order under whole goods) (Contains 4 ea. item 68 and 5 ea. items 69 & 70)

1шт.

72

8C8-A28

BUCKET - bell hole - 24" (Order under whole goods) (Contains 5 ea. item 68 and 5 ea. items 69 & 70)

1шт.

73

8C8-A29

BUCKET - bell hole - 34" (Order under whole goods) (Contains 4 ea. item 68 and 5 ea. items 69 & 70)

1шт.

74

1503-199

BEARING (After ser. #551)

1шт.

75

8C8-A35

REVERSE BUCKET BRACKET KIT (Order under whole goods)

1шт.

76

8C8-288

BRACKET, reverse

1шт.

77

8C8-3562

PIN, reverse bracket

2шт.

78

8C8-4508

PIN, klik (7/16")

2шт.

79

1661-1226

SPECIAL BOLT

2шт.

80

8C8-8386

SPACER

2шт.
