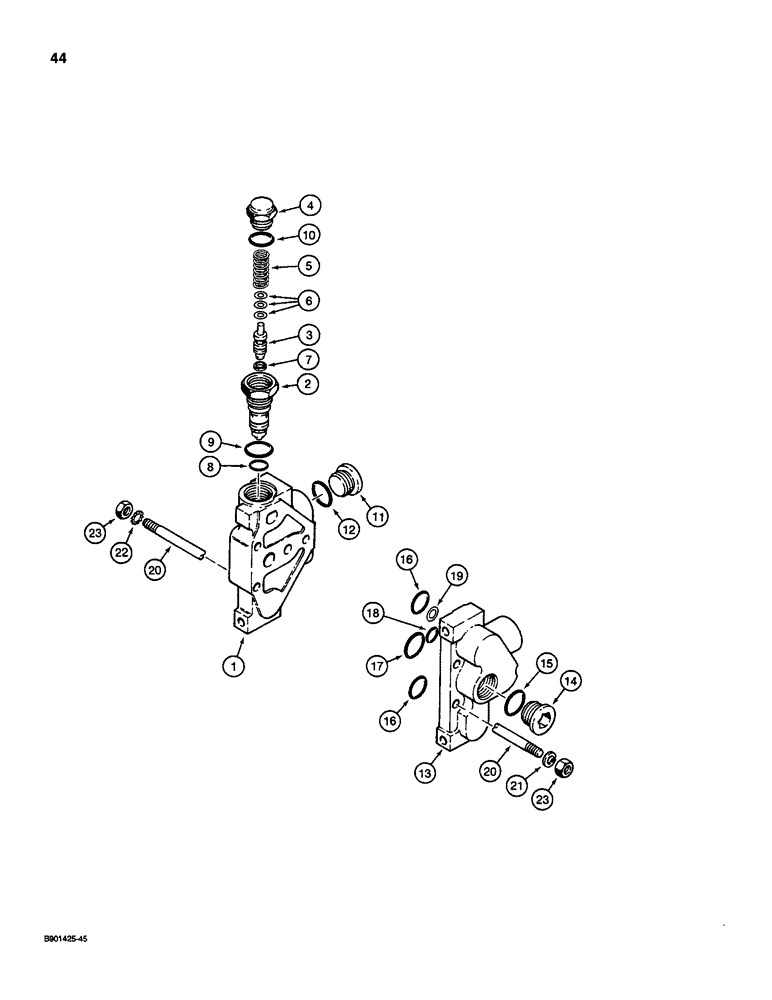

Запчасти Case D130 (8-044) - BACKHOE CONTROL VALVE - KONTAK, INLET AND OUTLET SECTIONS USED ON 1835C, 1840 & 1845C UNI-LOADERS

H672636

VALVE

ASSEMBLY - control, backhoe, manufactured by Konak, complete parts list Figures 8-42 - 8-50, Includes: Ref. 1 - 23

1шт.

H437197

MOUNTING PARTS

SECTION ASSEMBLY - inlet, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - inlet section

1шт.

H674017

VALVE

ASSEMBLY - relief, main, Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - relief valve cartridge

1шт.

3

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - relief valve

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

6

H398644

BLOCK

SHIM - 0.003 inch (0.08 mm) thick

1шт.

7

H398651

BLOCK

SHIM - 0.020 inch (0.51 mm) thick

1шт.

8

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- relief valve body, inner

1шт.

9

H398685

O-RING

- relief valve body, outer

1шт.

10

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

11

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

PLUG - hex, 1-1/16-12 inch O-ring boss, inlet section, Includes: Ref. 12

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

H674021

OUTLET

SECTION ASSEMBLY - oulet, Includes: Ref. 13 - 19

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - outlet section

1шт.

14

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 15 Hex Hd, 7/8"-14 ORB

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

H438208

O-RING

- medium

2шт.

17

H438209

O-RING

- large

1шт.

18

H438210

O-RING

- small

1шт.

19

H438211

SHIM

- outlet section

1шт.

N14041

SET

KIT - tie rod, Includes: Ref. 20 - 23

3шт.

20

NSS

NOT SOLD SEPARAT

ROD - tie

1шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

23

425-114

NUT,1/4"-28, G5

2шт.
