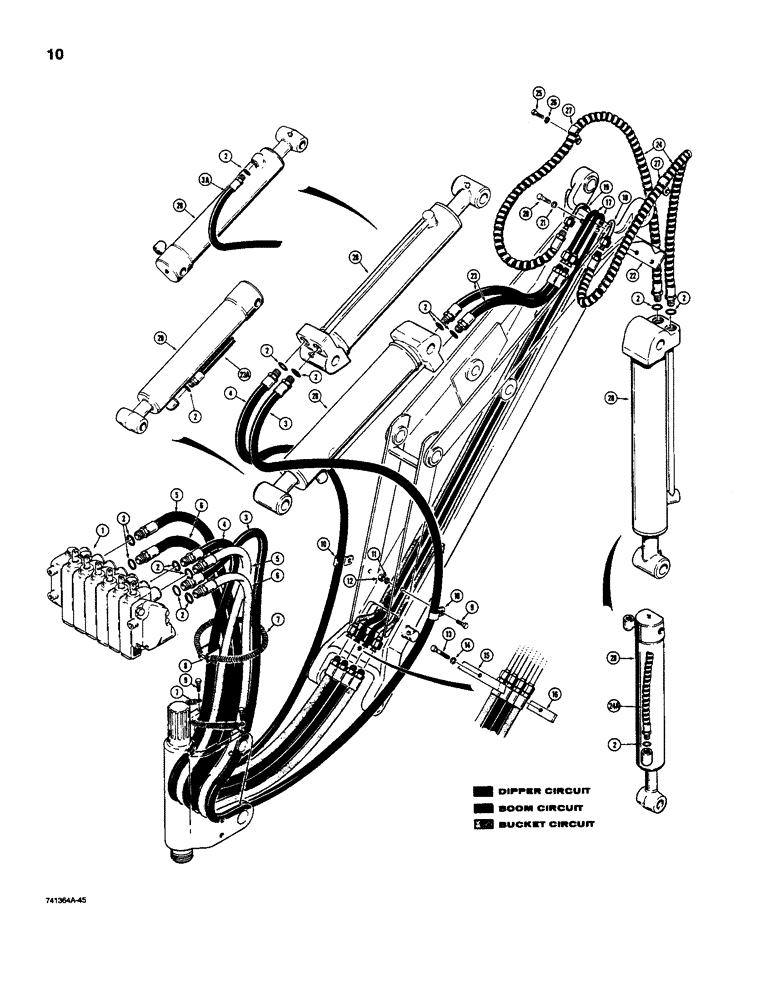

Запчасти Case D130 (7-010) - BACKHOE HYDRAULIC LINES, BOOM, DIPPER ARM, AND BUCKET CIRCUITS USED ON BACKHOE SN P1520301 & AFT

1

H513788

LOCK VALVE

CONTROL VALVE - backhoe, parts list Figure 7-36

1шт.

1

H619767

VALVE

CONTROL VALVE - backhoe, parts list Figure 7-40

1шт.

3

H268516

HYDRAULIC HOSE,9.52 mm ID x 1422.40 mm, SAE 100R1

- Lower valve port to dipper cylinder, if used 9.52 mm ID x 1422.40 mm, SAE 100R1

1шт.

3a

H357855

HOSE,0.38" ID x 75.00", SAE 100R1

Lower Valve Port to Dipper Cylinder, if Used 0.38" ID x 75.00", SAE 100R1

1шт.

4

H268524

HYDRAULIC HOSE,9.52 mm ID x 1473.20 mm, SAE 100R1

- Upper valve port to dipper cylinder 9.52 mm ID x 1473.20 mm, SAE 100R1

1шт.

5

H268557

HYDRAULIC HOSE,9.52 mm ID x 965.20 mm, SAE 100R1

- Upper valve ports 9.52 mm ID x 965.20 mm, SAE 100R1

2шт.

6

H268540

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

- Lower valve ports 9.52 mm ID x 889.00 mm, SAE 100R1

2шт.

7

H52548

SPRING

- hose retaining

1шт.

8

H52571

CLAMP

- spring retainer

2шт.

9

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

10

H51763

CLAMP

- hose

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

12

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

13

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

15

H52589

CLAMP

- tube

1шт.

16

H51748

CLAMP

- tube

1шт.

17

H593392

TUBE,0.5" OD

- boom, hose to hose

2шт.

18

H593384

TUBE,12.7 mm OD

- bucket, right-hand

1шт.

19

H593376

TUBE,0.5" OD

- bucket, left-hand

1шт.

20

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

22

H51755

CLAMP

- tube

1шт.

23

H244921

HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1

At Boom Cylinder 9.52 mm ID x 381.00 mm, SAE 100R1

1-2шт.

23a

H268540

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

- At boom cylinder, if used 9.52 mm ID x 889.00 mm, SAE 100R1

1шт.

24

H268565

HYDRAULIC HOSE,9.52 mm ID x 1066.80 mm, SAE 100R1

- At bucket cylinder 9.52 mm ID x 1066.80 mm, SAE 100R1

1-2шт.

24a

H357863

HOSE,9.65mm ID x 1549.4mm L, SAE 100R1

at Bucket Cylinder, if used 0.38" ID x 61.00", SAE 100R1

1шт.

25

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

27

H276758

CLAMP

- hose

2шт.

28

REF

INSTRUCTION

CYLINDER - boom, dipper, and bucket, see Figures 7-66 - 7-78 for correct cylinders

3шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose to control valve

12шт.
