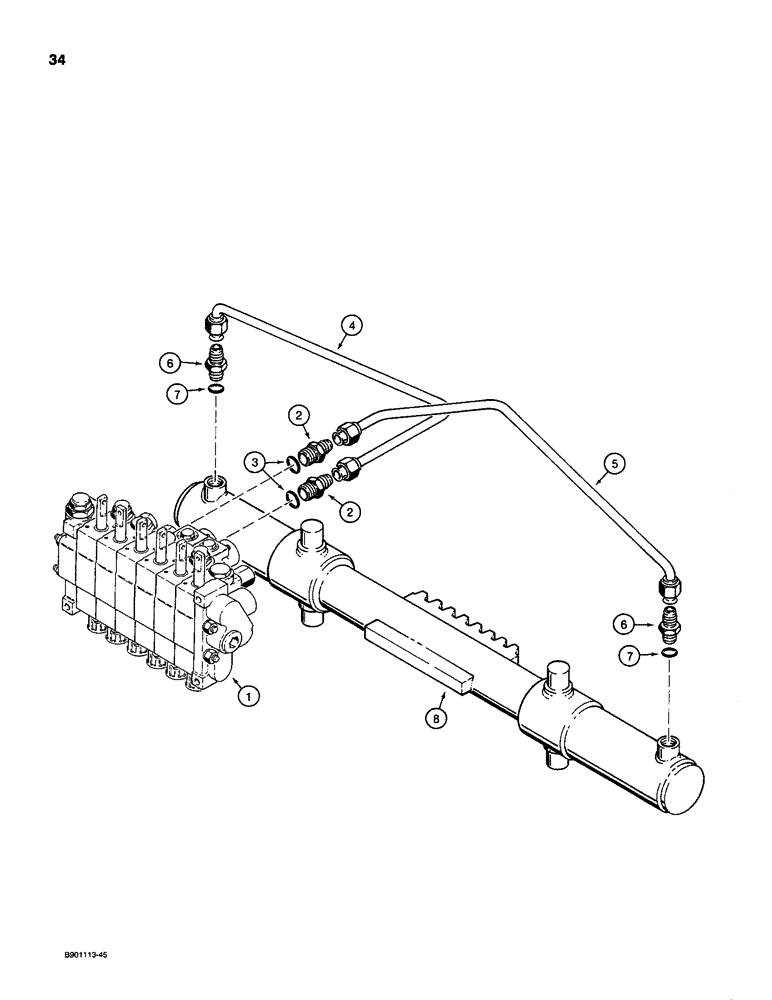

Запчасти Case D130 (8-034) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT, USED ON 1835C, 1840 & 1845C UNI-LOADER W/ KONTAK VALVE

1

H672636

VALVE

ASSEMBLY - control, backhoe, parts list Figures 8-42 - 8-50

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

H672643

TUBE,12.7 mm OD

- swing cylinder, left-hand side

1шт.

5

H672644

TUBE,12.7 mm OD

- swing cylinder, right-hand side

1шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

H514125

CYLINDER ASSY.

CYLINDER ASSEMBLY - swing, parts list Figure 8-68

1шт.
