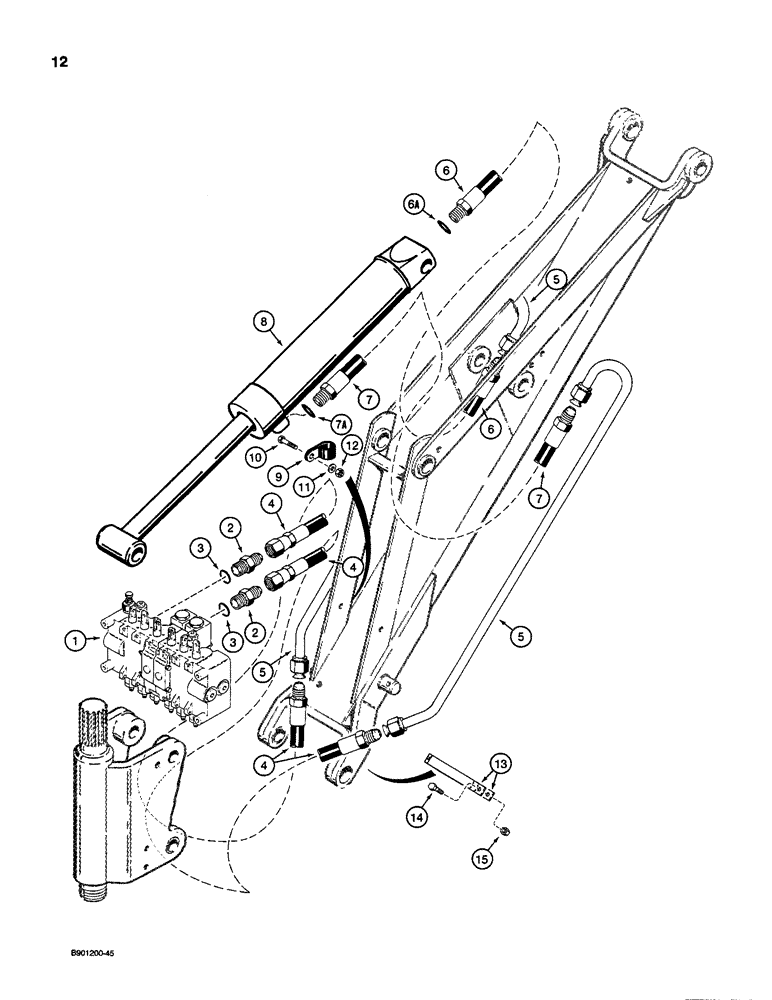

Запчасти Case D130 (8-012) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT, USED ON 1835C, 1840 & 1845C UNI-LOADERS W/ DUKE VALVE

1

H674300

VALVE

ASSEMBLY - control, backhoe, parts list Figures 8-52 - 8-60

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H434463

HOSE

- 1143 mm long, at control valve (replaces H200378)

2шт.

5

H669804

TUBE,1.27 mm OD x 1065, 35 mm L

- intermediate

2шт.

6

H244921

HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1

To Closed End of Boom Cylinder, Includes: Ref. 6A 9.52 mm ID x 381.00 mm, SAE 100R1

1шт.

6a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

H268540

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

- To rod end of boom cylinder, Includes Ref. 7A 9.52 mm ID x 889.00 mm, SAE 100R1

1шт.

7a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

ASSEMBLY - boom, parts list Figure 8-62

1шт.

9

H51763

CLAMP

- hose

2шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

11

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 1/16 inch

2шт.

12

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

13

H429696

MOUNTING CLIP

CLAMP - tube and hose

2шт.

15

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

14

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
