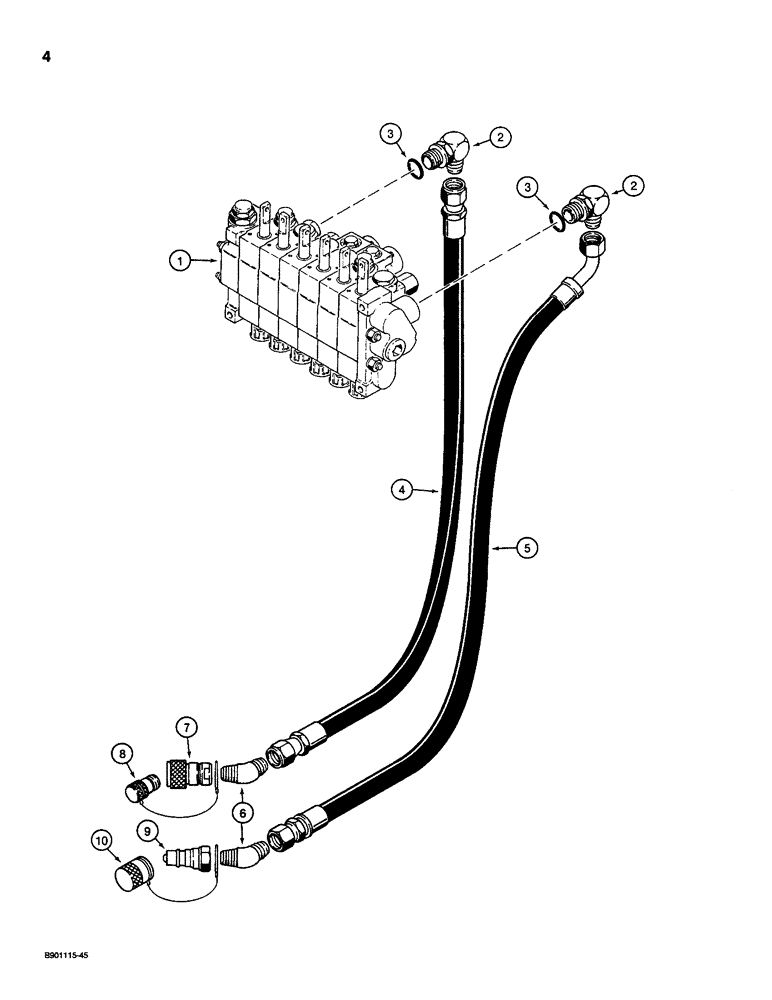

Запчасти Case D130 (8-004) - BACKHOE SUPPLY AND RETURN HYDRAULIC CIRCUIT, USED ON 1835C, 1840 & 1845C UNI-LOADERS W/ KONTAK VALVE

1

H672636

VALVE

ASSEMBLY - control, backhoe, parts list Figures 8-42 - 8-50

1шт.

2

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 7/8-14 flare x 1-1/16-12 inch adj. O-ring, Includes: Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

L46723

HOSE

- 42 inch long, supply

1шт.

5

D137255

HOSE ASSY.

HOSE - 1150 mm long, return

1шт.

6

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree, 7/8 flare x 5/8 inch PT

2шт.

7

H436396

COUPLING

DISCONNECT - quick, female

1шт.

8

T40274

CAP

PLUG - dust, female quick disconnect

1шт.

9

1272770C2

COUPLING, BREAK AWAY

DISCONNECT - quick, male

1шт.

10

T40759

PLUG

- dust, male quick disconnect

1шт.
