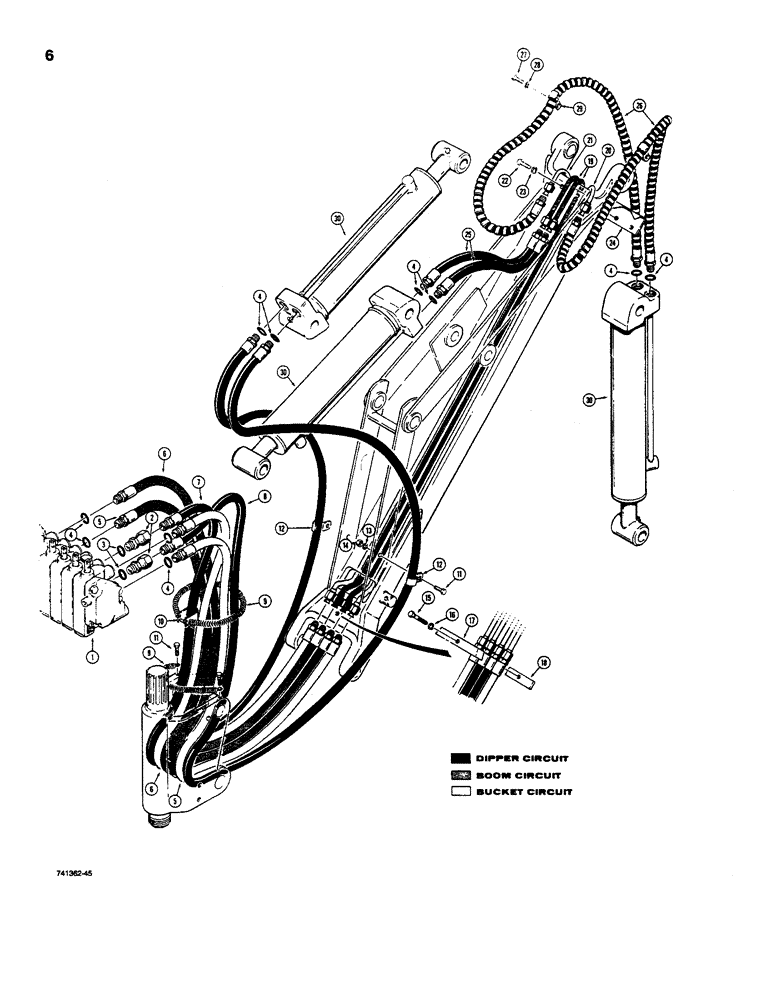

Запчасти Case D130 (7-006) - BACKHOE HYDRAULIC LINES, BOOM, DIPPER ARM AND BUCKET CIRCUITS USED PRIOR TO BACKHOE SN P1520301
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE - control, for conrrect assembly and components see Figures 7-36 - 7-40
1шт.
2
218-5252
HYD CONNECTOR,3/4" - 16 ORB x 3/8" NPT
ADAPTER - straight, 3/4-16 O-ring x 3/8 inch swivel str pipe
2шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
4
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
10шт.
5
H51458
HOSE
- lower valve port, 35 inch (889 mm) long
2шт.
6
H51466
HOSE ASSY.
HOSE - upper valve port, 38 inch (965 mm) long
2шт.
7
H51433
HOSE
- upper valve port to dipper cylinder, 58 inch (1473 mm) long
2шт.
8
H51441
HOSE
- lower valve port to dipper cylinder, 56 inch (1422 mm) long
1шт.
9
H52548
SPRING
- hose retaining
2шт.
10
H52571
CLAMP
- spring retainer
1шт.
11
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
12
H51763
CLAMP
- hose
2шт.
13
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
14
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
2шт.
15
113-121
BOLT,Hex, 5/16" - 18 x 2", Gr 5
1шт.
17
H52589
CLAMP
- tube
1шт.
18
H51748
CLAMP
- tube
1шт.
19
H513697
TUBE,0.5" OD x 44.625, 1.5" L
- at boom cylinder
2шт.
20
H513689
TUBE
- bucket cylinder, right-hand
1шт.
21
H513671
TUBE,0.5" OD x 45.875, 1.375" L
- bucket cylinder, left-hand
1шт.
22
113-121
BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
24
H51755
CLAMP
- tube
1шт.
25
H52399
HOSE
- at boom cylinder, 15 inch (381 mm) long
2шт.
26
H51482
HOSE
- at bucket cylinder, 24 inch (610 mm) long
2шт.
27
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
28
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
29
H276758
CLAMP
- hose
2шт.
30
REF
INSTRUCTION
CYLINDER - boom, dipper and bucket, see Figures 7-66 - 7-78 for correct cylinders
3шт.
Выбрано товаров: 30
