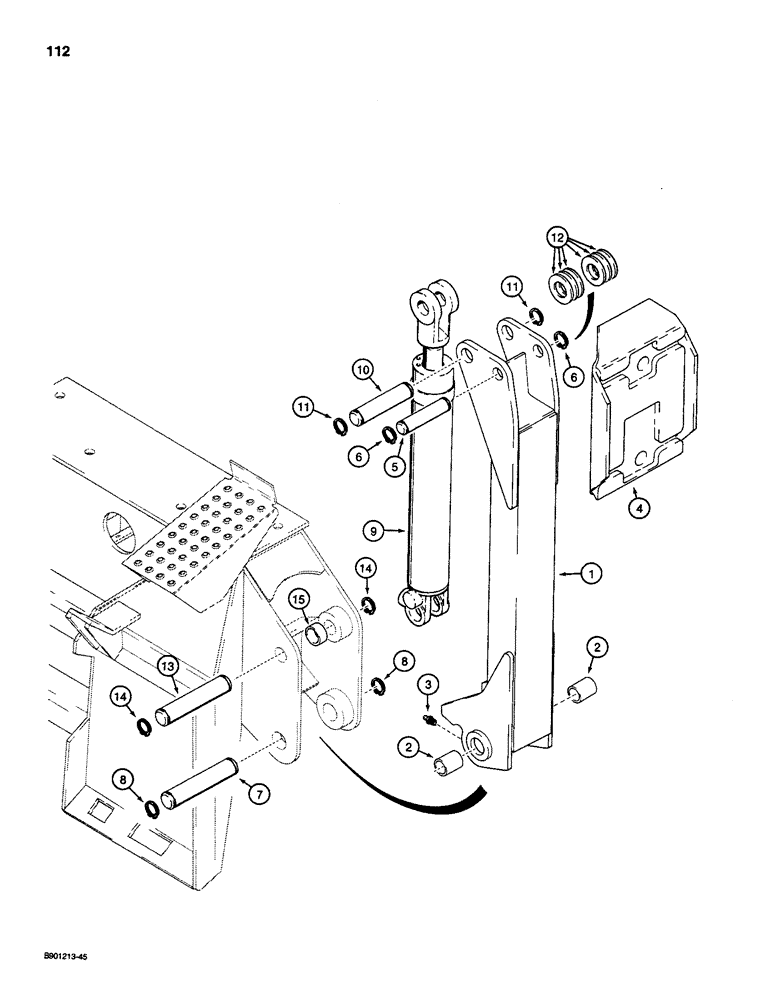

Запчасти Case D130 (7-112) - BACKHOE STABILIZERS, USED ON 1835C, 1840, AND 1845C UNI-LOADER W/ DUKE OR KONTAK VALVE

1

H672631

STABILIZER

ARM - stabilizer, Includes: Ref. 2

2шт.

2

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

- stabilizer arm

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

4

H434430

LARGE PLATE

PAD - stabilizer

2шт.

R31222 Rubber Pad (must drill new holes in pad H434430.)

1шт.

5

H434379

PIN,28.63mm OD x 151mm L

- stabilizer pad

2шт.

6

H758896

SNAP RING,#112, Ext

Ring, Snap, , stabilizer pad pin #112, Ext

4шт.

7

H434382

PIN,38.15mm OD x 204mm L

- stabilizer, Serial Range: arm-frame

2шт.

8

D25279

SNAP RING,M35, Int

RING - retaining, stabilizer pin arm

4шт.

9

H672226

CYLINDER ASSY.

CYLINDER ASSEMBLY - stabilizer, parts list Figure 7-82

2шт.

10

H434380

PIN

- cylinder to stabilizer arm

2шт.

11

D26918

SNAP RING,#125, Ext

Ring, Snap, , cylinder to stabilizer arm pin #125, Ext

4шт.

12

195-113

WASHER,1 1/4"

- flat, 1-3/8 x 3 x 5/32 inch

12шт.

13

H434381

PIN,31.8mm OD x 31.8mm L

-, Serial Range: cylinder-frame

2шт.

14

D26918

SNAP RING,#125, Ext

Ring, Snap, , cylinder to frame pin #125, Ext

4шт.

15

H434394

SPACER

-, Serial Range: cylinder-frame

2шт.
