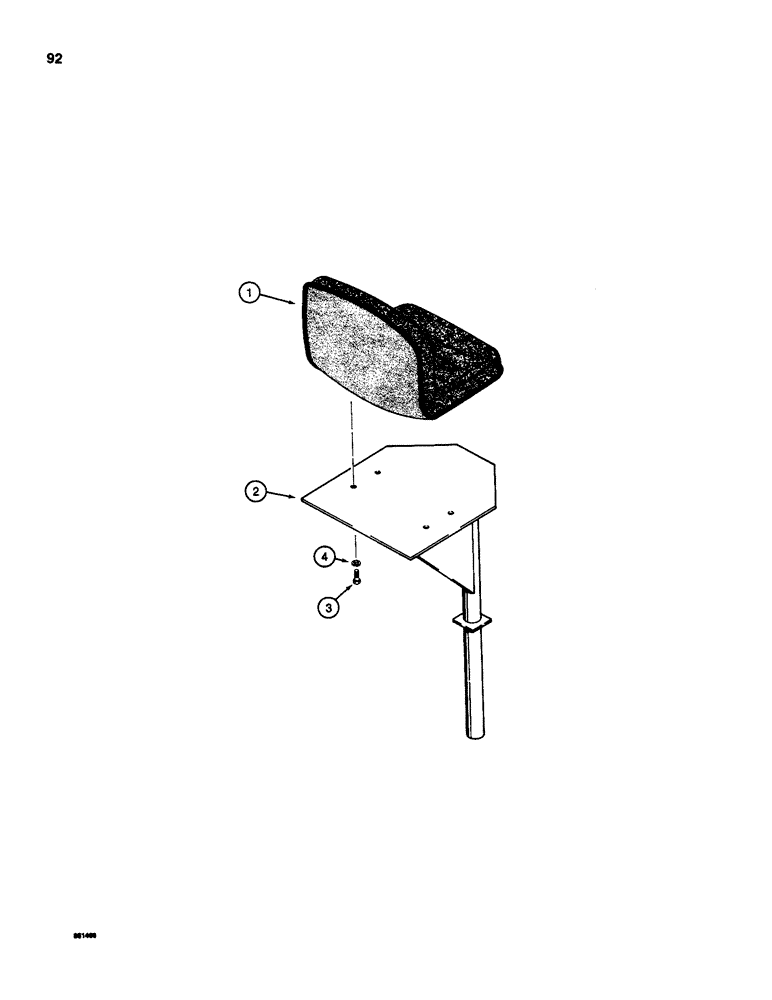

Запчасти Case D130 (7-092) - SEAT AND SEAT MOUNTING, USED ON 1835C, 1840, AND 1845C UNI-LOADER

1

H429316

SEAT

ASSEMBLY - backhoe operators, parts list Figure 8-86, used on 1845C Uni-Loaders only

1шт.

1

H436146

SEAT

ASSEMBLY - backhoe operators, parts list Figure 8-86, used on 1835C and 1840 Uni-Loaders only

1шт.

2

D134779

SUPPORT

POST - seat

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.
