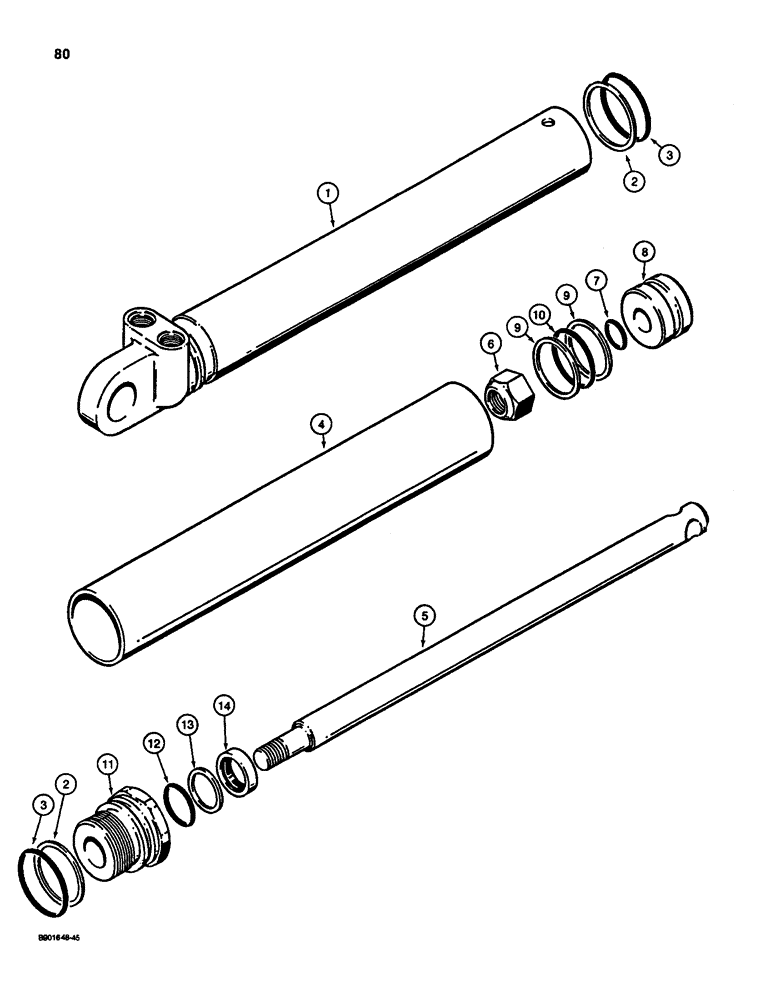

Запчасти Case D130 (7-080) - STABILIZER CYLINDER

H514117

CYLINDER BLOCK

CYLINDER ASSEMBLY - stabilizer, 2 inch (51 mm) ID x 12 inch (305 mm) stroke, Cessna No. 41011-FA, Includes: Ref. 1 - 14

2шт.

1

H52654

HYD CYL SLEEVE

TUBE - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - backup, tube

2шт.

Part of Seal Kit P/N H52704.

1шт.

3

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- tube

2шт.

Part of Seal Kit P/N H52704.

1шт.

4

H52662

HYD CYL SLEEVE

TUBE - cylinder, outer

1шт.

5

H52688

ROD

- piston

1шт.

6

131-1121

LOCK NUT,Hex, 5/8" - 18, Gr A

NUT, LOCK, 5/8"-11, GA

1шт.

7

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- piston rod

1шт.

Part of Seal Kit P/N H52704.

1шт.

8

H52670

PISTON ASSY.

PISTON - cylinder

1шт.

9

H754614

WASHER

RING -backup, piston O-ring

2шт.

Part of Seal Kit P/N H52704.

1шт.

10

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

- piston

1шт.

Part of Seal Kit P/N H52704.

1шт.

11

H52696

BEARING

GLAND - cylinder

1шт.

12

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N H52704.

1шт.

13

NSS

NOT SOLD SEPARAT

RING -backup, gland O-ring

1шт.

Part of Seal Kit P/N H52704.

1шт.

14

H746297

SEAL ASSY.

WIPER - piston rod

1шт.

H52704

KIT

- seal, Includes: Ref. 2, 3, 7, 9, 10, 12 and 13

1шт.
