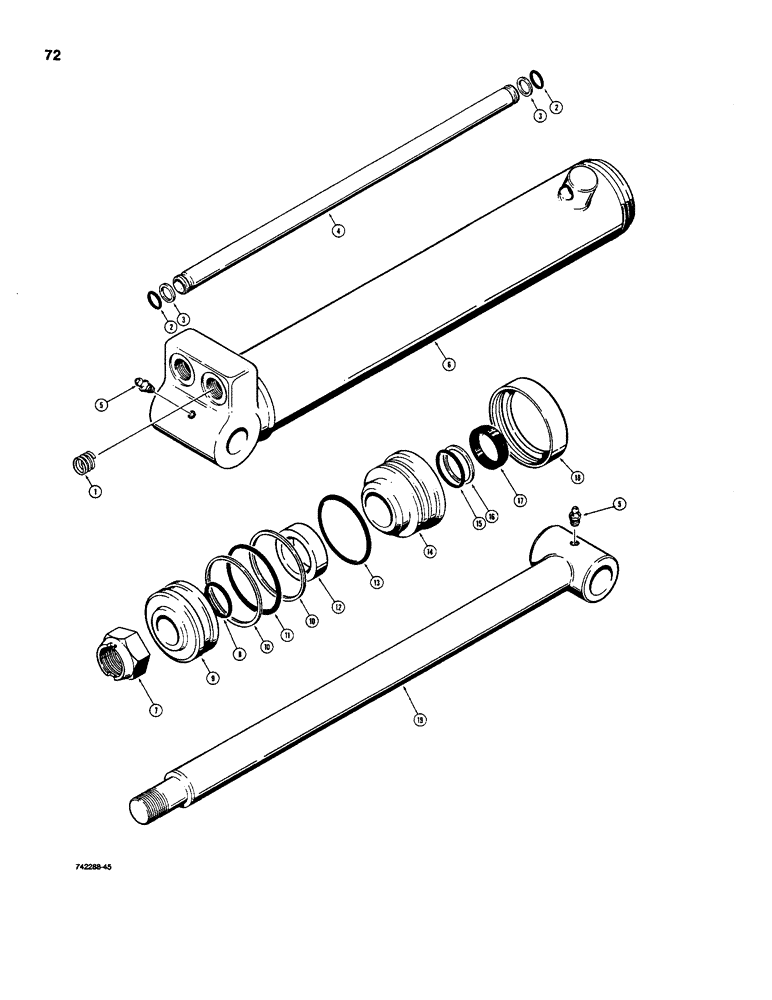

Запчасти Case D130 (7-072) - H607697 BOOM, DIPPER ARM AND BUCKET CYLINDER, LANTEX NO. 2903-BL (GLAND RETAINED BY TREADED CAP)

H607697

CYLINDER

- boom, dipper arm and bucket, 3 inch (76 mm) ID x 15 inch (381 mm) stroke, Includes: Ref. 1 - 19

3шт.

Use H621573 kit to rework cylinder. This converts H607697 cylinder to H621029. See figure 7-76.

1шт.

H602607

KIT

- manifold, Includes: Ref. 1 - 4

1шт.

1

H286013

VALVE SPRING

SPRING - manifold

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

3

H745620

WASHER

RING - backup

2шт.

4

NSS

NOT SOLD SEPARAT

TUBE - hydraulic, manifold

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

6

H608265

TUBE

- cylinder

1шт.

7

131-1141

LOCK NUT,1 1/8" - 12, Gr A

NUT - hex, self-locking, 1-1/8 inch NF

1шт.

8

R15366

O-RING,7/8" ID x 1" OD x 1/16"

- piston rod, small

1шт.

Part of Seal Kit P/N H608224.

1шт.

9

H298059

PISTON

- cylinder

1шт.

10

H754614

WASHER

RING - backup

2шт.

11

238-5334

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

Piston, large -334, 70 Duro, 2.6" ID x .210" Thk

1шт.

Part of Seal Kit P/N H608224.

1шт.

12

H298108

SPACER - piston

1шт.

13

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

- gland, large

1шт.

Part of Seal Kit P/N H608224.

1шт.

14

H223081

GLAND

- cylinder

1шт.

15

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

Gland small -222, 70 Duro, 1.484" ID x .139" Thk

1шт.

Part of Seal Kit P/N H608224.

1шт.

16

H745687

WASHER

RING - backup

1шт.

Part of Seal Kit P/N H608224.

1шт.

17

H222935

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit P/N H608224.

1шт.

18

H223032

COLLAR CLAMP

CAP - gland retaining

1шт.

19

H608257

ROD

- piston, 1-1/2 inch (38 mm) diameter

1шт.

H608224

SET

KIT - seal, Includes: Ref. 8, 11, 13 and 15 - 17

1шт.
