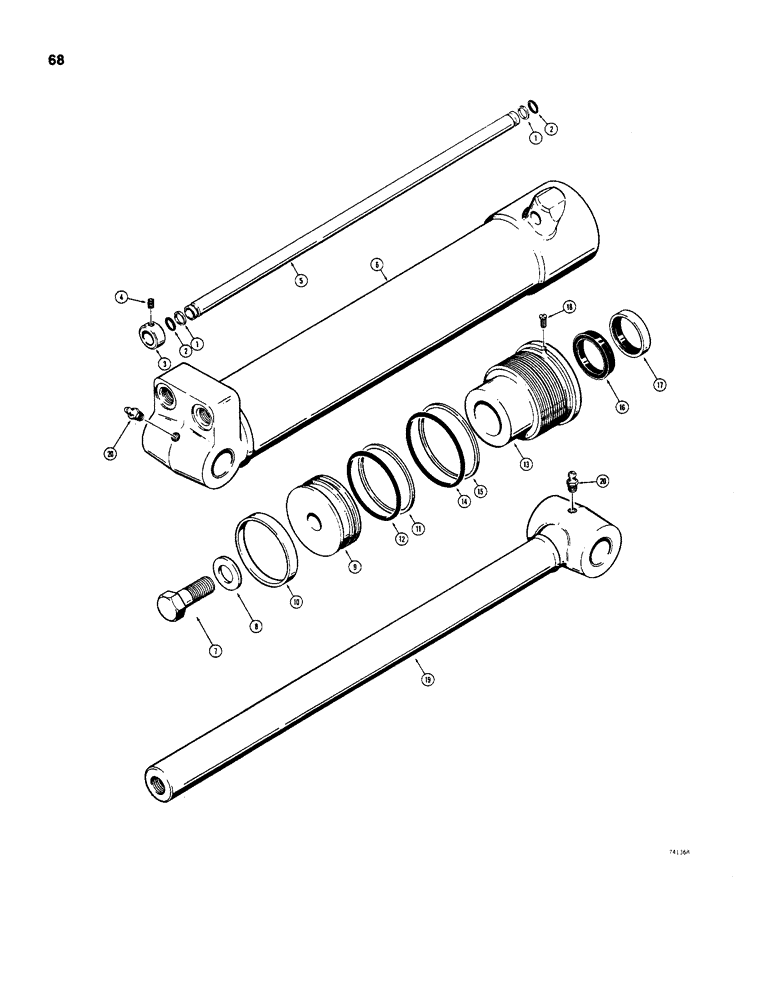

Запчасти Case D130 (7-068) - G34186 BOOM, DIPPER ARM AND BUCKET CYLINDER, HAS THREADED GLAND

G34186

CYLINDER ASSY.

CYLINDER - boom, dipper arm and bucket, 3 inch (76 mm) ID x 15 inch (381 mm) stroke, Includes: Ref. 1 - 20

3шт.

1

D54861

BACK-UP RING

- backup

2шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, Hydraulic tube

2шт.

3

G34478

COLLAR

- clamp, Includes: Ref. 4

1шт.

4

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - hex socket, 1/4 NC x 1/4 inch set

1шт.

5

G34193

TUBE,0.472" ID x 0.5625" OD x 17.88" L

- hydraulic

1шт.

6

G34187

TUBE,2.996" ID x 21.01" L

- cylinder

1шт.

7

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

8

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

9

G33747

PISTON

- cylinder, double groove

1шт.

10

G32033

RING

- wear

1шт.

Part of Seal Kit P/N G32269.

1шт.

11

32034

RING - backup

1шт.

Part of Seal Kit P/N G32269.

1шт.

12

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- piston

1шт.

Part of Seal Kit P/N G32269.

1шт.

G34328

GLAND

ASSEMBLY - cylinder, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

14

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G32269.

1шт.

15

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G32269.

1шт.

16

D36969

CUP

SEAL - rod

1шт.

Part of Seal Kit P/N G32269.

1шт.

17

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

ROD - wiper

1шт.

Part of Seal Kit P/N G32269.

1шт.

18

264-2444

SELF-TAP SCREW,Pan HD, #8 - 32 x 1/4"

SCREW - self-tapping, No. 8 NC x 1/4 inch

1шт.

19

G34191

ROD

- piston, 1-1/2 inch (38 mm) diameter

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

G32269

KIT

- seal, Includes: Ref. 10 - 12 and 14 - 17

1шт.
