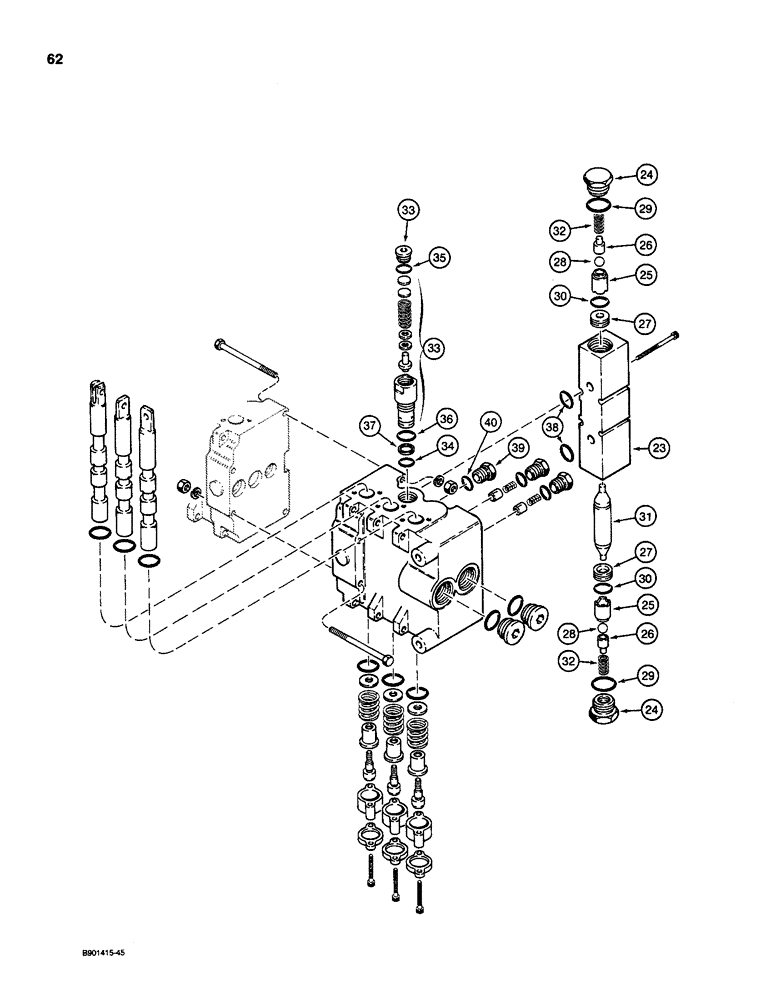

Запчасти Case D130 (7-062) - BACKHOE CONTROL VALVE - DUKE, OUTLET SETION, USED ON 1835C, 1840 & 1845C UNI-LOADERS (CONT)

H674300

VALVE

ASSEMBLY - control, backhoe, manufactured by Duke complete parts list Figures 7-54 - 7-62, Includes: Ref. 23 - 37 and 1 - 22 on Fig. 7-60

1шт.

H674532

BLOCK ASSY.

CHECK ASSEMBLY - pilot, Includes: Ref. 23 - 32

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - pilot check

1шт.

24

H438031

PLUG

- pilot check

2шт.

25

H438032

SLEEVE VALVE

SLEEVE - pilot check

2шт.

26

H438033

CUP

RETAINER - ball

2шт.

H674531

KIT

- pilot check, Includes: Ref. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

SEAT - pilot check

2шт.

28

NSS

NOT SOLD SEPARAT

BALL - pilot check

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

30

S6380

O-RING,0.614" ID x 0.754" OD x 0.07"

- plunger

2шт.

31

NSS

NOT SOLD SEPARAT

PLUNGER - pilot check

1шт.

32

H438034

SPRING

- pilot check

2шт.

H674533

VALVE

ASSEMBLY - circuit relief, Includes: Ref. 33 - 37

1шт.

33

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

H674536

O-RING

KIT - seal, circuit relief valve, Includes: Ref. 34 - 37

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

37

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

38

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

Check assembly -113, 90 Duro, .549" ID x .103" Thk

2шт.

39

H438231

PLUG

- body, Includes: Ref. 40

1шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

40

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
