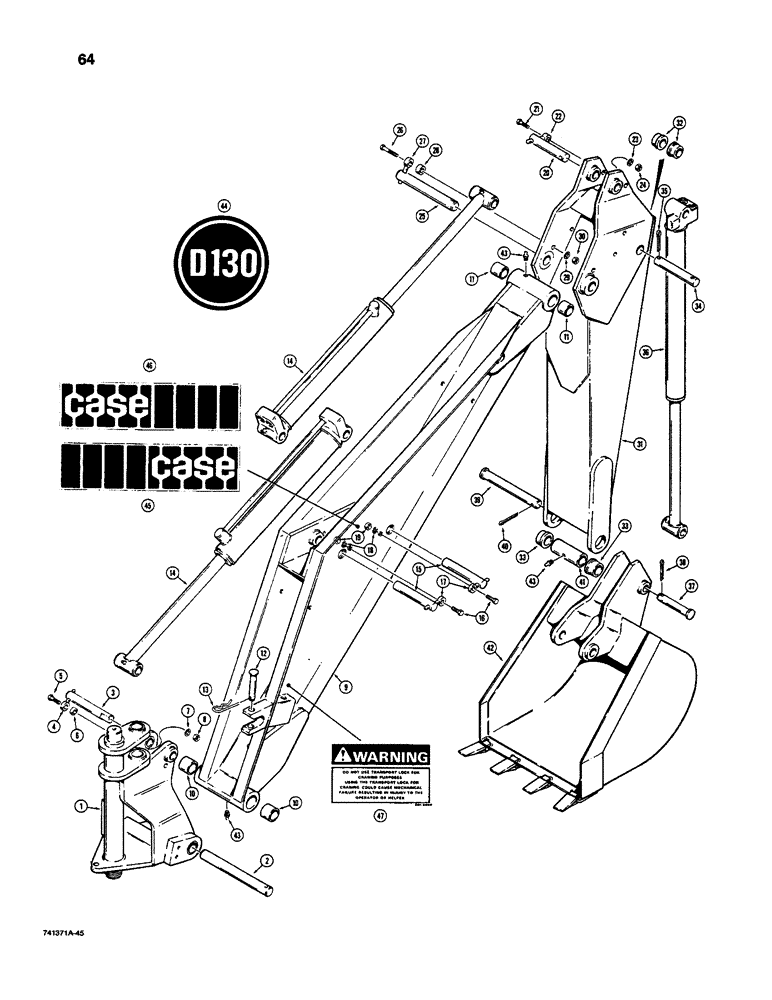

Запчасти Case D130 (9-64) - BOOM, DIPPER ARM AND BUCKET

1

H529511

MAST ASSEMBLY

MAST - swing tower, parts list Figures 9-56 - 9-60

1шт.

2

H109652

AXLE PIN

PIN - boom mounting

1шт.

3

H109793

PIN

- boom, Serial Range: cylinder-mast

1шт.

4

H313981

PIN

- keeper

1шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

6

H53793

SPACER

- keeper pin

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

425-106

NUT,3/8"-16, Cl 5

1шт.

9

H528547

BOOM

- backhoe, Includes: Ref. 10 and 11

1шт.

10

H122309

BUSHING

- boom pivot

2шт.

11

H122309

BUSHING

- dipper arm pivot

2шт.

12

H120683

PIN,15.88mm OD x 94.06mm L

- transport lock

1шт.

13

A70250

PIN

- hair

1шт.

14

REF

INSTRUCTION

CYLINDER - boom and dipper arm, see Figures 9-24 - 9-34 for correct cylinders and components

2шт.

15

H50690

AXLE PIN,28.57mm OD x 171.45mm L

PIN - boom and dipper arm cylinder mounting

2шт.

16

414-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- hex, 3/8 NF x 1-1/2 inch

2шт.

17

H313981

PIN

- keeper

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

129-123

NUT,3/8"-24, G5

2шт.

20

H109801

AXLE PIN

PIN - dipper cylinder mounting

1шт.

21

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

Hex, 3/8"-24 x 1 1/4", G5, Full Thd

1шт.

22

H313981

PIN

- keeper

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

129-123

NUT,3/8"-24, G5

1шт.

25

H109819

PIN

- dipper arm pivot

1шт.

26

414-632

BOLT - hex, 3/8 NF x 2 inch

1шт.

27

H313-981

PIN - keeper

1шт.

28

H53793

SPACER

- keeper pin

1шт.

29

492-11038

LOCK WASHER,3/8"

1шт.

30

129-123

NUT,3/8"-24, G5

1шт.

31

H529420

ARM

- dipper, Includes: Ref. 32 and 33

1шт.

32

H50823

BUSHING

- step, bucket cylinder pivot

2шт.

33

H36640

BUSHING

- step, bucket pivot

2шт.

34

H50690

AXLE PIN,28.57mm OD x 171.45mm L

PIN - bucket cylinder

1шт.

35

132-314

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

36

REF

INSTRUCTION

CYLINDER - bucket, see Figure 9-36 for correct cylinder and components

1шт.

37

H79285

PIN

- bucket, Serial Range: cylinder-bucket

1шт.

38

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

39

H109827

AXLE PIN

PIN - bucket mounting

1шт.

40

132-314

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

1шт.

41

H110114

SLEEVE

- grease

1шт.

42

REF

INSTRUCTION

BUCKET - backhoe, see Figure 9-66 for options

1шт.

43

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

3шт.

44

321-3198

DECAL

- D130

2шт.

45

321-3182

DECAL

- Case, left-hand

1шт.

46

321-3183

DECAL

- Case, right-hand

1шт.

47

321-3885

DECAL

- warning, craning

1шт.
