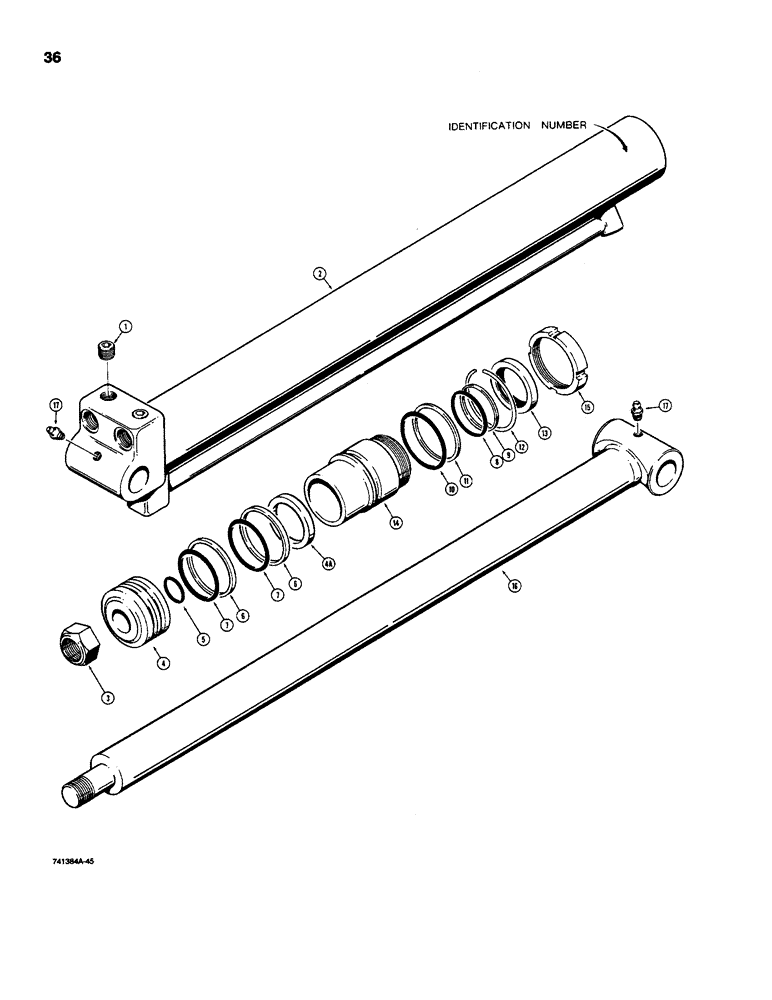

Запчасти Case D130 (9-36) - H530493 BUCKET CYLINDER, CESSNA NO. 41094-LA (ON ROD END OF OF CYLINDER) H630285 BUCKET CYLINDER CES

H530493

CYLINDER

- used on Uni-Loaders, 24 inch (610 mm) stroke x 2-1/2 inch (64 mm) ID, Includes: Ref. 1 - 17

1шт.

H630285

CYLINDER

- used on 380 loader backhoe, 23-13/16 inch (609 mm) x 2-1/2 inch (64 mm) ID, Includes: Ref. 1 - 17

1шт.

1

221-1843

PLUG

- hex socket, 3/8 inch PT

2шт.

2

H120386

CYLINDER

TUBE - cylinder

1шт.

3

131-369

LOCK NUT,7/8"-14, GA

NUT - hex, self-locking, 7/8 inch NF

1шт.

4

H120410

PISTON ASSY.

PISTON - cylinder (replaces H120419)

1шт.

4a

H352997

SPACER - washer

1шт.

H120444

GASKET KIT

KIT - seal, Includes: Ref. 5 - 13

1шт.

5

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

O-RING - piston, small

1шт.

6

T31057

SEAL ASSY.

RING - backup, piston

2шт.

7

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

1шт.

8

A31183

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

- gland, small

1шт.

9

H755009

RING

- backup, small

1шт.

10

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

11

A35901

RING

- backup, large

1шт.

12

A35898

RING, SNAP

RING - retaining, gland

1шт.

13

H120436

WIPER

- rod

1шт.

14

H120394

BEARING

GLAND - cylinder

1шт.

15

H120428

BUSHING

NUT - ring style, gland retaining

1шт.

16

H120402

ROD

- piston

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.
