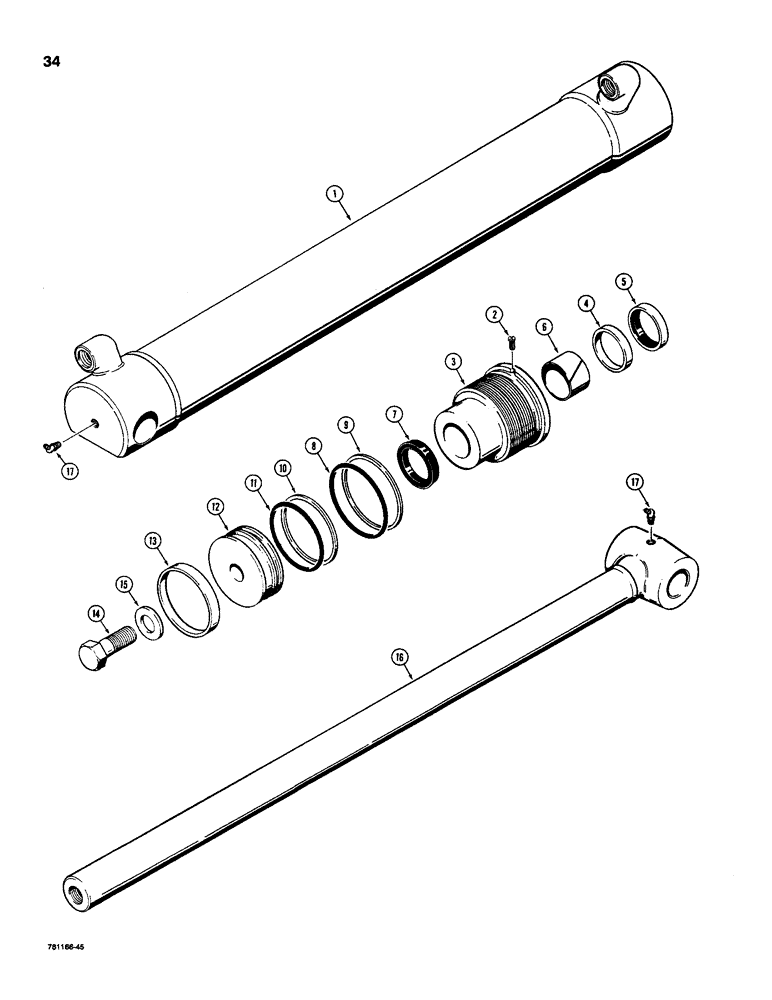

Запчасти Case D130 (9-34) - G100931 BOOM AND DIPPER ARM CYLINDER, GLAND IS STAMPED WITH CYLINDER PART NUMBER

G100931

CYLINDER

- 3 inch (76 mm) ID x 23-13/16 inch (609 mm) stroke, Includes: Ref. 1 - 17

2шт.

1

G100932

TUBE

- cylinder

1шт.

2

264-2444

SELF-TAP SCREW,Pan HD, #8 - 32 x 1/4"

SCREW - self-tapping, No. 8 NC x 1/4 inch

1шт.

G34328

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod

1шт.

Part of Seal Kit P/N G34656.

1шт.

6

G34302

BEARING

- center

1шт.

Part of Seal Kit P/N G34656.

1шт.

7

D36969

CUP

SEAL - rod, see P/N G100776 for service option

1шт.

Part of Seal Kit P/N G34656.

1шт.

8

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

Gland -234, 70 Duro, 2.984" ID x .139" Thk

1шт.

Part of Seal Kit P/N G34656.

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Seal Kit P/N G34656.

1шт.

10

G32034

RING

- backup, piston O-ring

1шт.

Part of Seal Kit P/N G34656.

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- piston

1шт.

Part of Seal Kit P/N G34656.

1шт.

12

G33747

PISTON

- cylinder, double groove

1шт.

13

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

1шт.

Part of Seal Kit P/N G34656.

1шт.

14

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

15

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

16

G34179

ROD

- piston, 1-1/2 inch (38 mm) diameter

1шт.

17

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

2шт.

G34656

SEAL

KIT - seal, Includes: Ref. 5 - 11 and 13

1шт.

G100776

SEAL

- rod, service option - extreme heat or cold, see P/N D36969 for service option

1шт.
