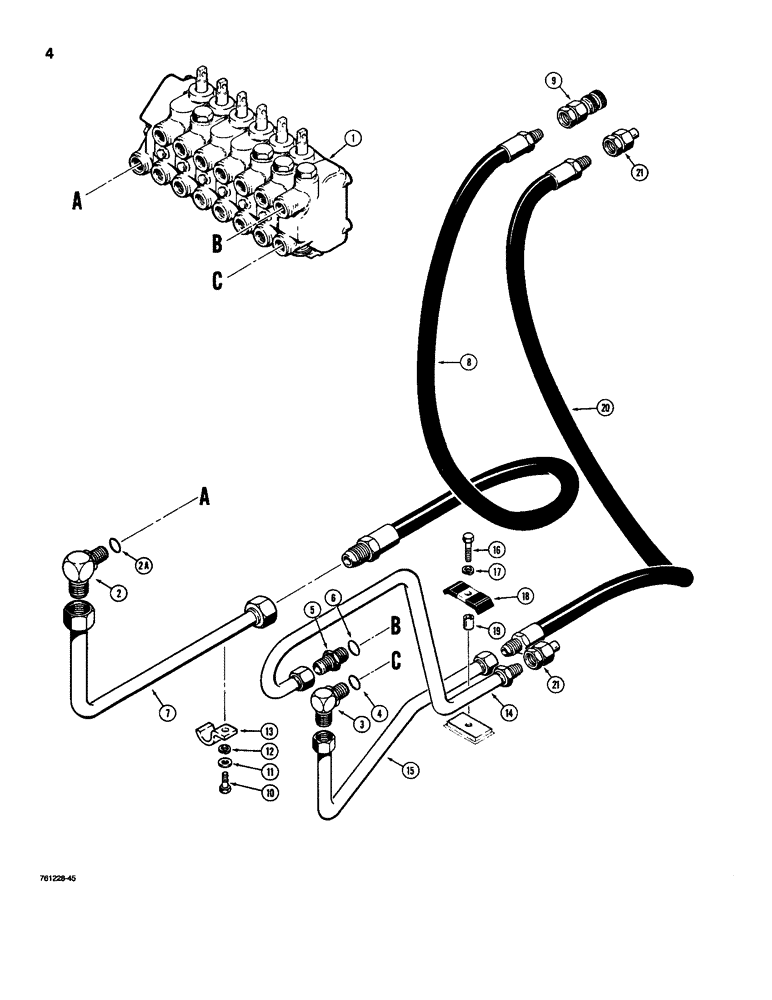

Запчасти Case D130 (9-04) - BACKHOE HYDRAULIC CONNECTING LINES, USED ON 380 CK LOADER BACKHOE

1

H528844

LOCK VALVE

VALVE - backhoe control, parts list Figures 9-16 and 9-18

1шт.

2

218-5164

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-5/16-12 flare x 7/8-14 inch adj. O-ring, Includes: Ref. 2A

1шт.

2a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj. O-ring, Includes: Ref. 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

D76102

TUBE,1" OD x 6.78, 16" L

- return

1шт.

8

D76136

HOSE

- 50 inch (1270 mm) long

1шт.

9

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female, parts list Figure 9-22

1шт.

Ref:#9A D39924 Dust Cap available

1шт.

10

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

D55880

CLAMP

- return tube

1шт.

14

D76536

TUBE ASSY.,0.75" OD

TUBE - supply

1шт.

15

D76759

TUBE,0.75" OD x 15.83, 5.6" L

- return

1шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

D40236

CLAMP

- tubes from inlet/outlet section

1шт.

19

D36040

BUSHING

SPACER - clamp

1шт.

20

D77100

HOSE

- 50 inch (1270 mm) long

1шт.

21

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male, parts list Figure 9-22

1шт.
