Запчасти Case D100XR (8-016) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT, USED ON 1835C, 1840 & 1845C UNI-LOADERS W/ KONTAK VALVE

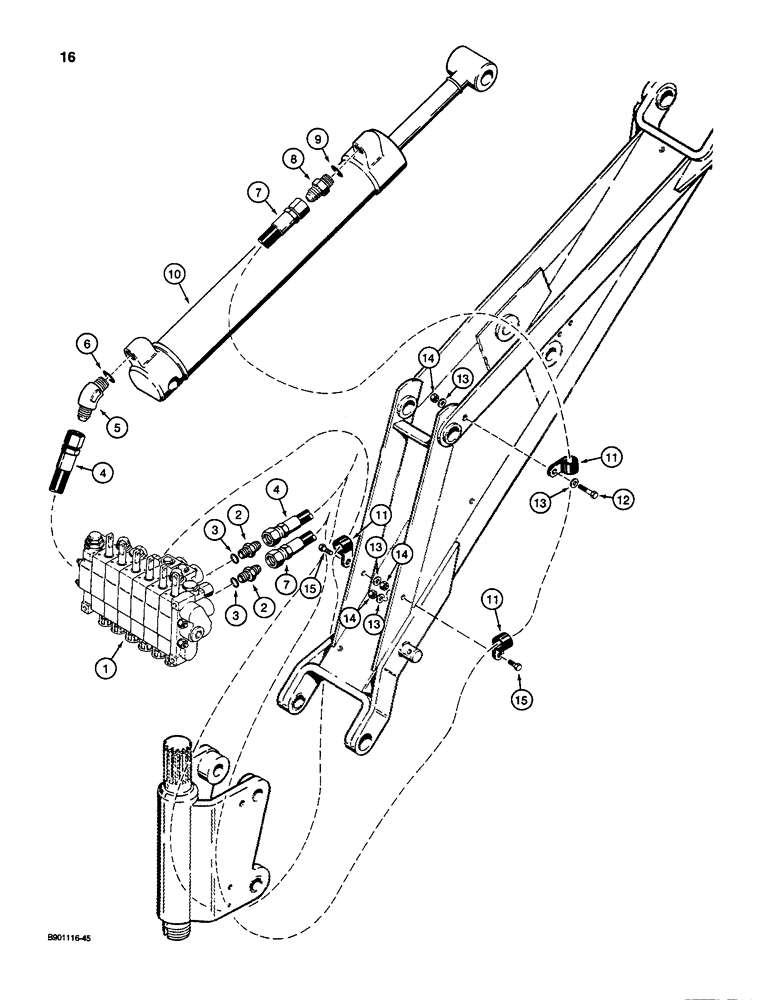

Схема запчастей Case D100XR - (8-016) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT, USED ON 1835C, 1840 & 1845C UNI-LOADERS W/ KONTAK VALVE
13
14
14
13
7
2
8
3
12
15
2
15
9
5
14
11
4
13
4
3
11
1
7
13
11
6
10

Артикул

Название

Примечание

Количество

1

H672636

VALVE

ASSEMBLY - control, backhoe, parts list Figures 8-42 - 8-50

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

H434465

HOSE

- 1600 mm long, to closed end of dipper cylinder

1шт.

5

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj. O-ring boss, Incl. Ref 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

H434464

HOSE

- 2200 mm long, to rod end of dipper cylinder

1шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

G109376

CYLINDER BLOCK

CYLINDER ASSEMBLY - dipper, parts list Figure 8-66

1шт.

11

H51763

CLAMP

- hose

3шт.

12

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

13

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 1/16 inch

4шт.

14

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

3шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.
