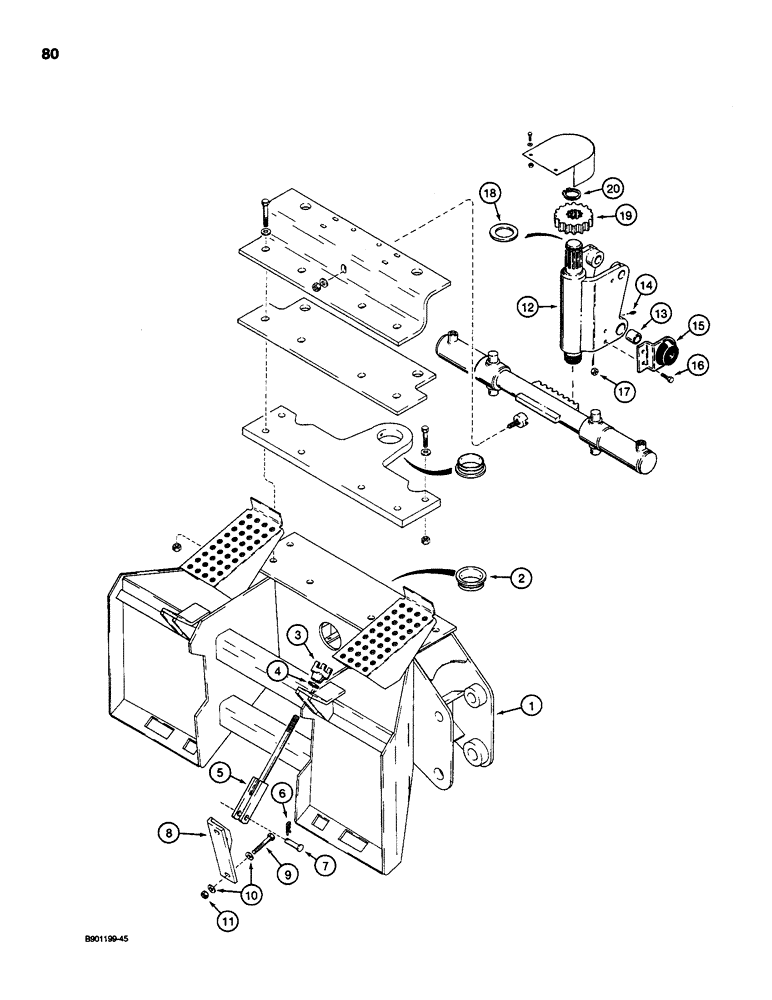

Запчасти Case D100 (8-080) - BACKHOE FRAME AND SWING TOWER, USED ON 1835C, 1840, AND 1845C UNI-LOADER W/ DUKE OR KONTAK VALVE

H673647

FRAME

ASSEMBLY - backhoe attachment, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - backhoe attachment

1шт.

2

H434397

BUSHING,70.04mm ID x 89mm OD x 32mm L

BEARING - backhoe frame

1шт.

3

D134787

KNOB

KNOB - tie rod

2шт.

4

H426817

WASHER

- flat, 3/4 inch, hardened

2шт.

5

H673638

TRUSS ROD

ROD - tie, backhoe frame

2шт.

Ref: #5 H673638 Rod- tie backhoe frame 348 MM end of Rod to center hole.

1шт.

6

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - hair, 5/16 x 2-25/32 inch

2шт.

7

141-8

CLEVIS PIN,3/4" x 1.910", HDN

PIN - clevis, 3/4 x 1-5/8 inch, hardened

2шт.

8

H673639

ANCHOR

- tie rod

2шт.

Ref: #8 1840 W/ Kontak valve use H675087 Hook/w Backhoe & H675088 Hook/w Backhoe 1845C use H439357 Backup Plates (2) are not included in kits.

1шт.

9

426-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

- hex, 1/2 NC x 2-3/4 inch, grade 8, Used on 1840 Uni-Loaders only

4шт.

9

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8, Used on 1845C Uni-Loaders only

4шт.

10

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

11

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

H672641

POST

TOWER ASSEMBLY - swing, backhoe, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

TOWER - swing

1шт.

13

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

- swing tower

2шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

3шт.

15

H625756

BRACKET

BUMPER - pin retainer

2шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

17

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

4шт.

18

H434429

BLOCK

SHIM - swing gear

1шт.

19

H434489

PINION

GEAR - swing

1шт.

20

L59033

SNAP RING,#212, Ext

Ring, Snap, , swing gear #212, Ext

2шт.
