Запчасти Case D100 (7-116) - BACKHOE DIPPER AND BUCKET, USED ON 1835C, 1840, AND 1845C UNI-LOADERS

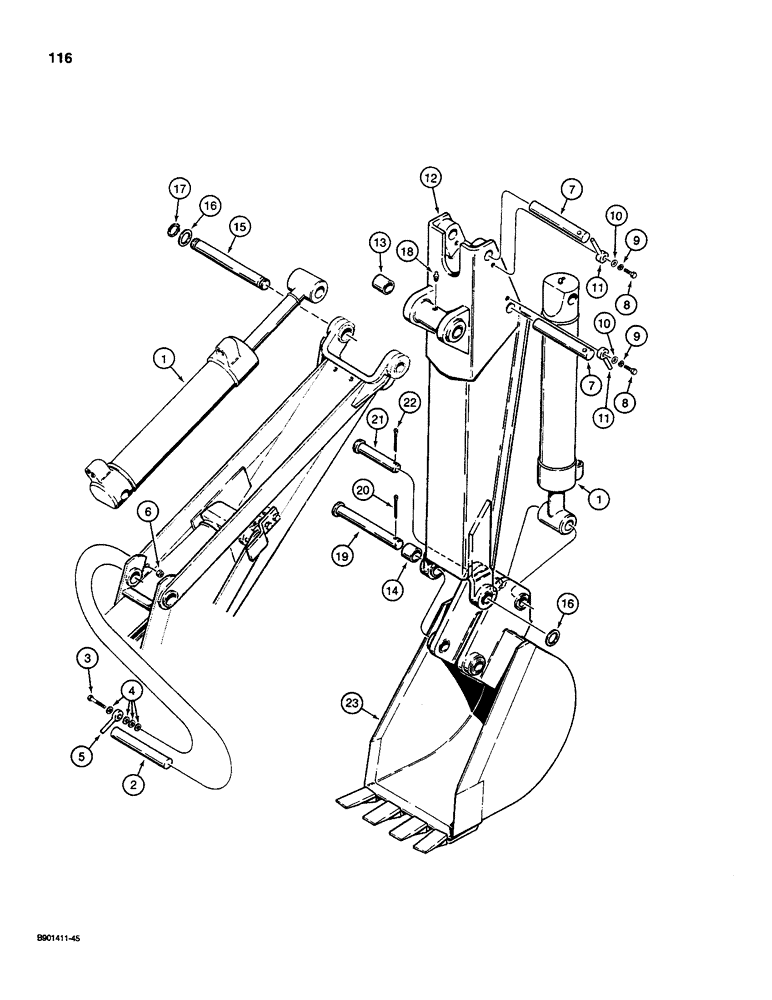

Схема запчастей Case D100 - (7-116) - BACKHOE DIPPER AND BUCKET, USED ON 1835C, 1840, AND 1845C UNI-LOADERS
8
6
16
12
15
11
10
19
3
10
2
14
22
1
23
4
17
16
1
9
7
11
21
18
9
8
5
20
13
7

Артикул

Название

Примечание

Количество

1

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

- bucket and dipper, parts list Figure 7-78

2шт.

2

H50690

AXLE PIN,28.57mm OD x 171.45mm L

PIN - dipper cylinder closed, Serial Range: end-boom

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

4

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

5

H313981

PIN

- retainer

1шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

7

H50690

AXLE PIN,28.57mm OD x 171.45mm L

PIN - dipper cylinder rod end to dipper and bucket cylinder closed, Serial Range: end-dipper

2шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/21 x 13/16 x 3/32 inch, hardened

2шт.

11

H313981

PIN

- retainer

2шт.

12

H514687

BOOM

DIPPER - backhoe, Includes: Ref. 13 and 14

1шт.

13

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

- dipper pivot

2шт.

14

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket pivot

2шт.

15

H50658

PIVOT

PIN -, Serial Range: boom-dipper

1шт.

16

195-454

WASHER,1.140" x 1 7/8" x .032"

- flat, 1-9/64 x 1-7/8 x 1/32 inch

1шт.

17

F62235

SNAP RING,#112, Ext

Ring, Snap, , pin #112, Ext

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

19

H50682

PIN

- bucket pivot, Serial Range: dipper-bucket

1шт.

20

132-355

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), , dipper to bucket pin 3/8" x 2"

1шт.

21

H257048

PIN,28.5mm OD x 146.05mm L

- bucket cylinder rod, Serial Range: end-bucket

1шт.

22

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), , Bucket cylinder pin 1/4" x 1 3/4"

1шт.

23

REF

INSTRUCTION

BUCKET - backhoe, see Figures 7-118 for bucket options

1шт.

Выбрано товаров: 23
