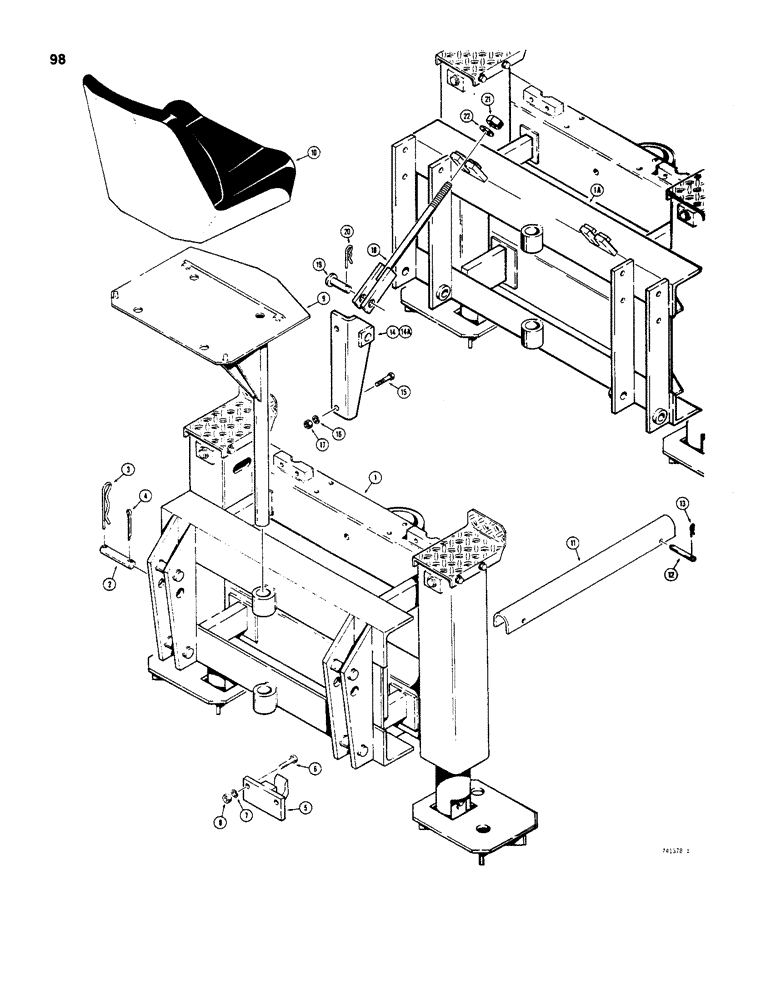

Запчасти Case D100 (7-098) - MOUNTING FRAME AND SEAT, MODEL 1830 AND 1835 UNI-LOADERS

1

D63916

FRAME - backhoe mounting, used on 1830 only, parts list figure 105

1шт.

1a

D93600

FRAME

- backhoe mounting, used on 1835 only, parts list figure 105

1шт.

2

T40685

PIN

- Frame attaching, used on 1830 only

2шт.

3

T40222

SPLIT PIN/SAFETY PIN

PIN - hair, cotter, used on 1830 only

2шт.

4

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), , Used on 1830 only 1/4" x 3"

2шт.

5

D60674

SUPPORT

MOUNT - backhoe, hook, used on 1830 only

4шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Used on 1830 only Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used on 1830 only 1/2"

8шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Used on 1830 only 1/2"-13, G5

8шт.

9

D63445

POST

- seat

1шт.

10

D56576

SEAT

- operators, parts list Figure 7-90

1шт.

11

D63533

STOP

STRUT - retaining, for loader lift cylinders

2шт.

12

D63534

PIN

- stop retaining

4шт.

13

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

8шт.

14

D93608

ANCHOR

- tie rod, left-hand, used on 1835 only

1шт.

14a

D93609

ANCHOR

- tie rod, right-hand, used on 1835 only, not shown

1шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Used on 1835 only Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used on 1835 only 1/2"

4шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Used on 1835 only 1/2"-13, G5

4шт.

18

D93612

CLEVIS

ROD - tie, used on 1835 only

2шт.

19

141-8

CLEVIS PIN,3/4" x 1.910", HDN

PIN - clevis, used on 1835 only

2шт.

20

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - hair, 5/16 x 2-25/32 inch, used on 1835 only

2шт.

21

25-1012

NUT,3/4"-10, G5

Used on 1835 only 3/4"-10, G5

2шт.

22

195-45

WASHER,3/4"

Used on 1835 only 3/4"

2шт.
